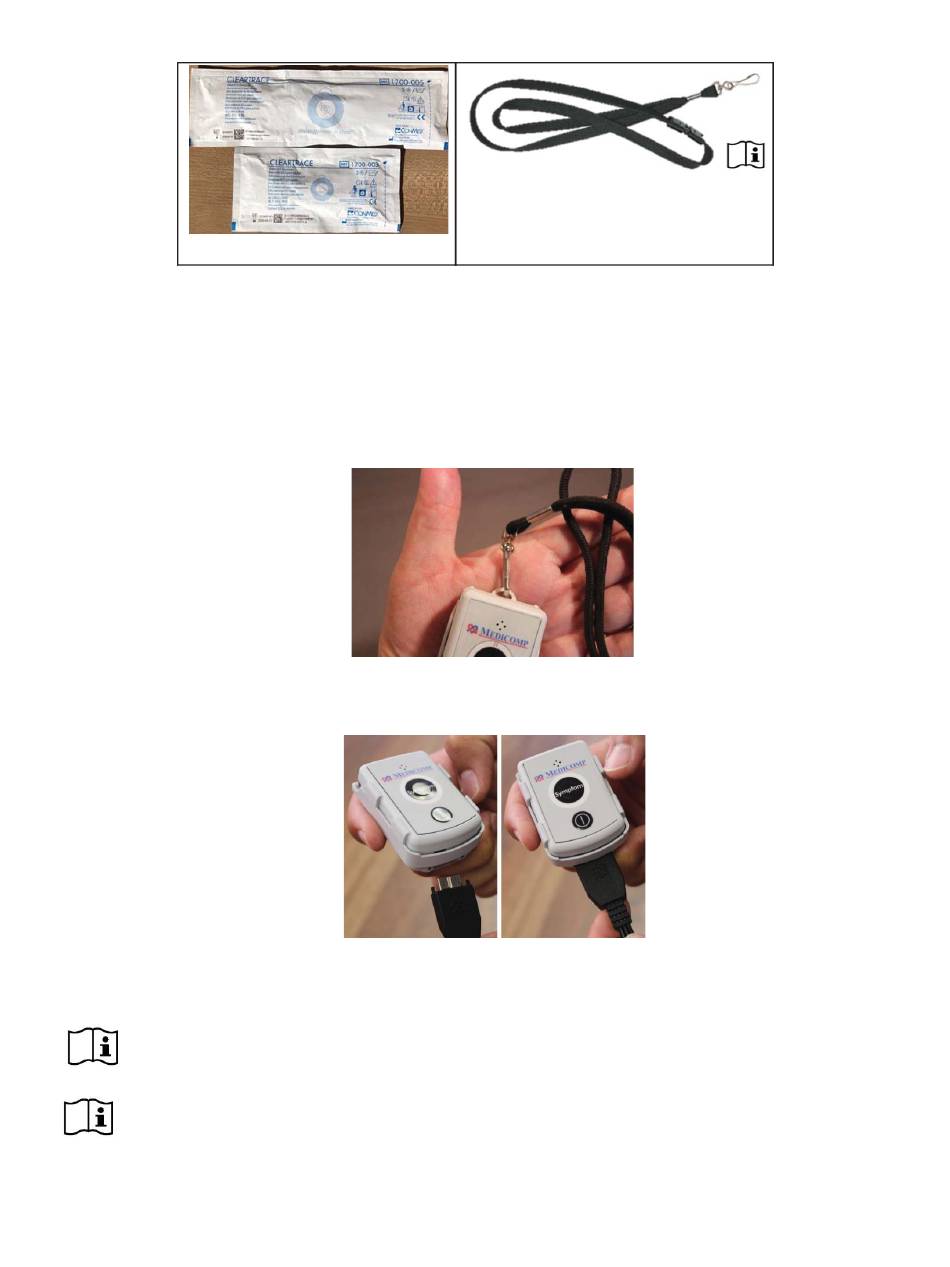

● Snap the wires onto the electrodes while they are still attached to the plastic backing.
● One by one, peel each electrode from the backing and apply it to the chest.
● Position the electrodes at the appropriate color-coded sites.
● If wearing cable cradle on lanyard, clip lanyard onto the loop at the top of cradle.
○ Cable Cradle may also be carried in pocket, be careful Cable remains connected
to Cable Cradle
● Hold flat plug at the end of electrodes cable and connect cable to the base of cradle into
the corresponding outlet.
● Place the lanyard over head to wear the cradle with cable attached.
LANYARD IS NOT TO BE WORN WHILE SLEEPING.
CHILDREN WEARING PENDANTS MUST BE SUPERVISED BY ADULTS.
