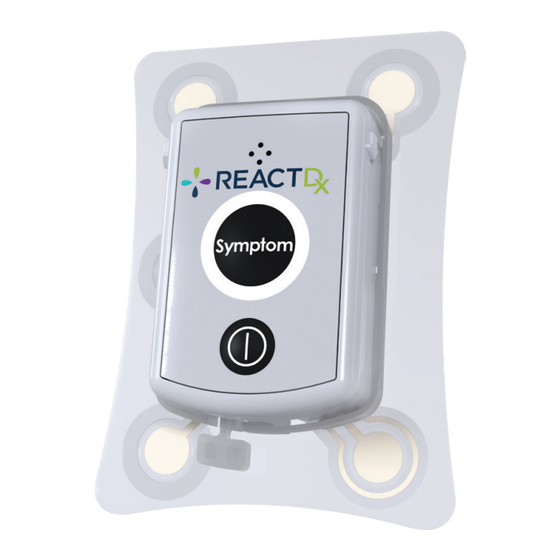

Medicomp TelePatch Patient Manual
Hide thumbs
Also See for TelePatch:
- Patient manual (9 pages) ,
- Patient manual (16 pages) ,
- Patient manual (20 pages)
Related Manuals for Medicomp TelePatch
Summary of Contents for Medicomp TelePatch

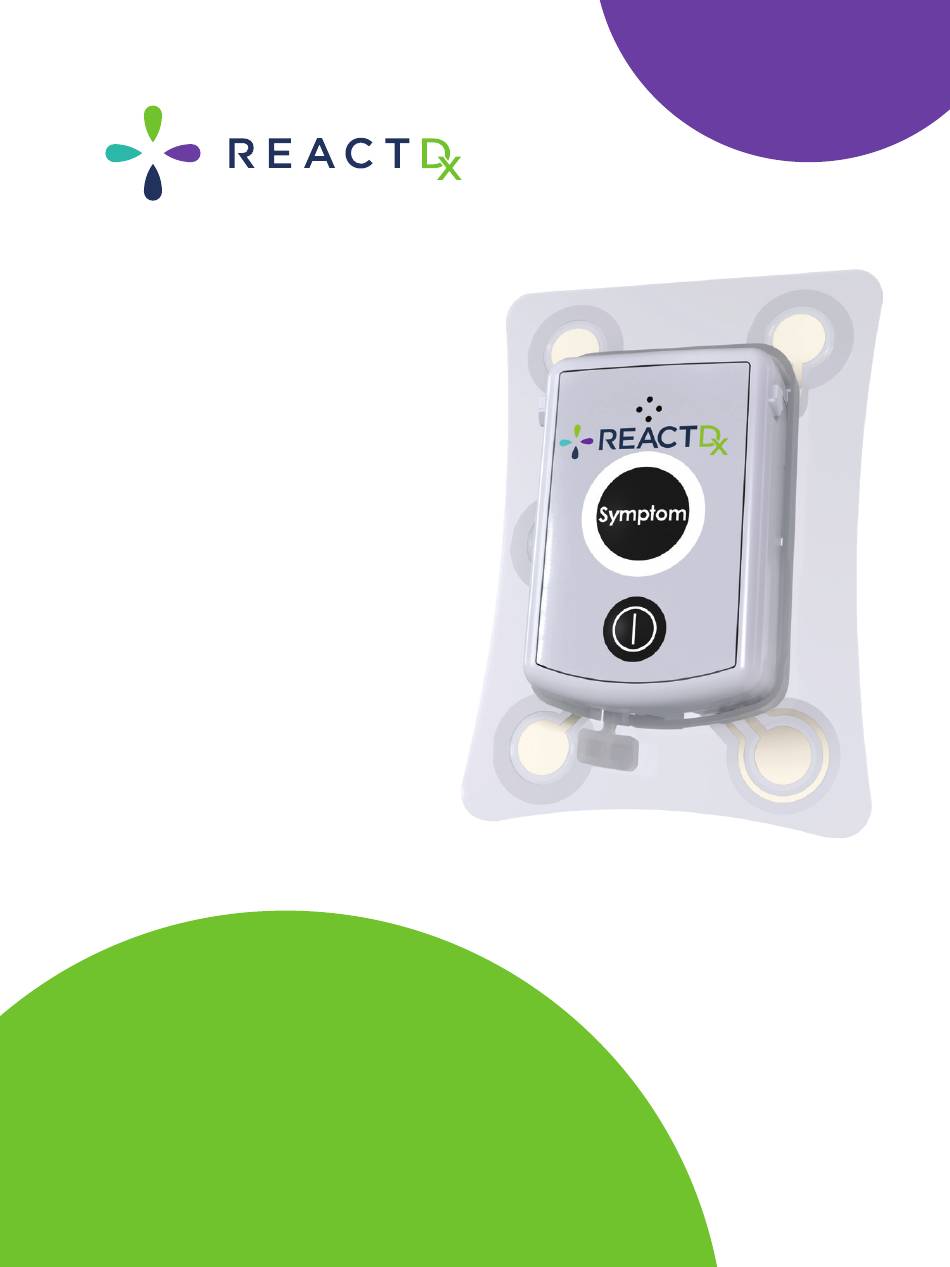

- Page 1 Patient Guide TelePatch™ Monitoring System The Most Advanced & Convenient Ambulatory Cardiac Monitoring System...
- Page 2 Inside the Box Universal Pendant Charging Cable Handset Battery Charger Additional Battery Find Electrode Patches Inside the Box. ESPAÑOL Encuentra Esta Guía en Español ReactDx.com/es/GuiaTelePatch1-1...
-
Page 3: Table Of Contents
Table of Contents Welcome To TelePatch ........2 TelePatch Monitoring Kit Contents ....3 Preparing Your Skin ..........4 Putting the Device On ........5 Starting Your Study ..........6 Lighting and Sound Guide ......8 Replacing Electrode Patch ......9 Battery Changing & Charging .......10 Making a Symptom Recording .......11... -
Page 4: Welcome To Telepatch
The most advanced heart monitoring system Your doctor has prescribed an ambulatory cardiac monitoring study using the ReactDx TelePatch Monitor. This guide will walk you through hooking up the monitor, using it during daily activities, recording symptoms when they occur, and returning the monitor at the end of the study. -
Page 5: Telepatch Monitoring Kit Contents
TelePatch Monitoring Kit Contents Handset Universal Pendant Battery(ies) Battery Charger, Electrode Patch(es) Charging Cable and Plug... -
Page 6: Preparing Your Skin
Preparing Your Skin Find Location Wash with Plain Soap (No Lotion/Oil), Shave (if needed) and Dry Wipe Location with Dry 60 Seconds Skin Prep Pad The location for the Patch is just left of the center of the chest, as highlighted. -
Page 7: Putting The Device On
Putting the Device On Insert Battery Insert Pendant Peel Backing Insert Top of Pendant, then Press Down on the Bottom Remove white Adhere to Chest Do Not Move Patch outer ring. Over to Shoulder Area Align the Patch in the center of your chest. Avoid your shoulder fold. Take care not to insert the Pendant upside down. -
Page 8: Starting Your Study
Starting Your Study Flashing Light When the Electrode Patch is Attached in the Proper Position on the Chest Confirm the Pendant is ON. Green Light Flashes If it is not, press the power Every 4 Seconds button to turn it on. Confirm the Green light is flashing SLOWLY. - Page 9 Patient Age Verification Cardiac Monitor Choose a patient setting for your monitoring study (Adult or Pediatric). 3:37 PM Patient Setting Adult October 1, 2022 Welcome! Please turn the Pendant on and make sure it stays near this Handset throughout the procedure. START ACCEPT AND PROCEDURE...
-
Page 10: Lighting And Sound Guide
Lighting and Sound Guide Flashing Light Power ON Power OFF Monitoring - Good Symptom Press Check Pendant Change Battery BLUE GREEN ORANGE Flashing Light Flashing Light Flashing Light Monitoring is Good, Monitoring is Good Change battery and communicating but not communicating with the Handset. -
Page 11: Replacing Electrode Patch
Replacing Electrode Patch Replace every 7 days Replace every 7 days Remove Patch Remove Pendant Discard Patch Only Wipe Location with Insert Pendant Place on Chest Skin Prep Pad and Ensure Pendant is ON Once the Handset is powered on and has connected to the Pendant the Pendant light will flash BLUE slowly indicating the Pendant is monitoring and communicating to the Handset properly. -
Page 12: Battery Changing & Charging
Battery Changing & Charging Flashing Light Charged Battery and Low Battery Power Off Monitoring Remove Battery Add Battery Insert and Ensure from Pendant to Pendant Pendant is ON Add Battery Connect Cord Check Lights to Charger to Charger and Electrical Outlet... -
Page 13: Making A Symptom Recording
Making a Symptom Recording Audio Diary When You Experience Tap Manual and Select Your a Symptom, Press the Symptoms, Location and Activity Symptom Button on From the Three Drop-Down Pendant or Handset. Menus. Tap Save When Finished. Speak clearly into the smartphone handset and describe your symptoms, Audio Diary... -
Page 14: Do's And Don'ts
Do’s and Don’ts Wear Day and Night Fully Insert in Cradle Do Not Discard Pendant Turn Off Before Dry Pendant and Patch Do Not Submerge Changing Battery Keep Near Handset Return Promptly– Do Not Move Patch Leave Kit for Mail Over to Shoulder Area Carrier to Pick Up in any USPS Mailbox... -
Page 15: Connecting The Monitor To Wi-Fi
Connecting the Monitor to Wi-Fi Tap the Wi-Fi Symbol at the Read and Accept the Top of the Home Screen. Terms of Use. Select Your Network. Enter Your Wi-Fi Password, Press Enter, and Verify Your Connection. Your Heart Monitor will automatically connect to a cellular network, however, if you choose to connect your monitor to a Wi-Fi network, it will help ensure the data collected is quickly transmitted to our cardiac monitoring centers. -
Page 16: Troubleshooting
Troubleshooting Text with a yellow caution icon on the Handset is an Action Message that requires your attention. Follow these simple instructions to return to full monitoring. Cardiac Monitor Press and Hold the Power Tap Power Off. Button on the side of the Handset. - Page 17 Wipe Inside of Cradle Wait 3 Minutes Connections and Pendant Connection Pins with an alcohol wipe. Replace Pendant and Turn ON Handset Turn ON If you are unable to resolve an issue or if you need assistance with other error messages, call ReactDx at (877) 996-5553 or chat with us online at www.ReactDx.com.
-
Page 18: Procedure Ending Instructions
Procedure Ending Instructions Remove Patch with Pendant Remove Pendant from Chest Discard Patch Only Insert All Contents / Unused Supplies Back into the Box Close and Seal the Box Promptly Leave for Mail Carrier in Any USPS Mailbox... - Page 19 This page left blank intentionally.
-
Page 20: Returning The Monitor Kit
$2000 to replace the device. Medicomp, Inc. dba ReactDx has earned the Joint Commission’s Gold Seal of Approval . (877) 996-5553 • www.ReactDx.com • Info@ReactDx.com ©2023 Medicomp, Inc. dba ReactDx QSG0000726-01...
