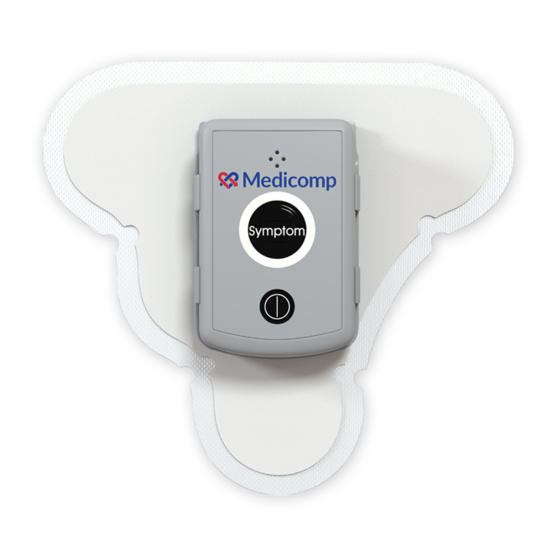

Medicomp TelePatch Patient Manual
Monitoring system
Hide thumbs
Also See for TelePatch:
- Patient manual (9 pages) ,
- Patient manual (16 pages) ,
- Patient manual (20 pages)
Related Manuals for Medicomp TelePatch
Summary of Contents for Medicomp TelePatch
- Page 1 PATIENT GUIDE TelePatch Monitoring System Patient Guide Most Advanced & Convenient Ambulatory Cardiac Monitoring...
-
Page 2: Inside The Box
Inside the Box Universal Pendant Charging Cable Handset Battery Charger Additional Battery Find Electrode Patches Inside the Box. ESPAÑOL VIDEO For Reference Videos, Visit: Encuentra Esta Guía en Español www.medicompinc.com/es/GuiaTelePatch w w w . m e d i c o m p i n c . c o m / T e l e P a t c h G u i d e... -
Page 3: Welcome To Telepatch
Your doctor will review and interpret the results of this study. ECG recordings are sent to Medicomp, where highly trained Certified Cardiac Technicians analyze your ECG data and create reports for your doctor. You should wear the monitor and go about your normal daily activities;... -
Page 4: Table Of Contents
Table of Contents Inside the Box Welcome To TelePatch TelePatch Monitoring Kit Contents Preparing Your Skin Putting the Device On Starting Your Study Starting the Handset Lighting and Sound Guide Replacing Electrode Patch Battery Changing & Charging Showering and Drying Do’s and Don’ts... -
Page 5: Telepatch Monitoring Kit Contents
TelePatch Monitoring Kit Contents Handset Universal Pendant Battery Battery Charger, Electrode Patch Charging Cable and Plug... -
Page 6: Preparing Your Skin
Protective Skin Pad The location for the Patch is just left of the center of the chest, as highlighted. All of the materials used in Medicomp products and patches are latex-free and hypoallergenic. The Protective Skin Pad is included in the Patch packaging. If you have known skin... -
Page 7: Putting The Device On
Putting the Device On Insert Battery Insert Pendant Peel Backing Adhere to Chest Remove Tabs Do Not Move Patch Over to Shoulder Area Align Patch in center of chest and avoid shoulder fold as shown. Take care not to insert the Pendant upside down. Be sure the slightly curved end of the Pendant —... -
Page 8: Starting Your Study
Starting Your Study Flashing Light When Electrode Patch is Attached in the Proper Position on the Chest Power ON the Green Light Flashes Universal Pendant Every 4 Seconds Confirm the Green light is flashing SLOWLY. The GREEN light indicates the Pendant is on and monitoring but is not communicating to the Handset. -
Page 9: Starting The Handset
Patient Preparation Turn On the Handset by Follow All Patient Preparation Pressing the Power Key. Steps Detailed on Pages 6, 7, When the Medicomp Screen and 8, and Tap Ok Appears, Tap Start Procedure Cardiac Monitor Procedure Setup Tap Accept Settings on the... -
Page 10: Lighting And Sound Guide
Lighting and Sound Guide Flashing Light Power On Power Off Monitoring - Good Symptom Press Check Pendant Change Battery BLUE GREEN ORANGE Flashing Light Flashing Light Flashing Light Monitoring is Good, Monitoring is Good Change battery and communicating but not communicating with the Handset. -
Page 11: Replacing Electrode Patch
Replacing Electrode Patch Replace every 7 days Replace every 7 days Remove Patch Remove Pendant Discard Patch Only Wipe Location Insert Pendant Place on Chest with Protective and Ensure Skin Pad Pendant is ON You should have enough supplies in your Kit to last through the end of your Study. -
Page 12: Battery Changing & Charging
Battery Changing & Charging Flashing Light Charged Battery and Low Battery Power Off Monitoring Remove Battery Add Battery Insert and Ensure from Pendant to Pendant Pendant is ON Charging Charged Add Battery Connect Cord Check Lights to Charger to Charger and Electrical Outlet... -
Page 13: Showering And Drying
Showering and Drying Remove Pendant Wear in Shower Do Not Submerge After Shower, Dry the Pendant Remove Pendant Front and Back New! Dry Inside Cradle If Patch is Loose, Insert Pendant Press on Patch & Replace It and Ensure Inside the Cradle Pendant is ON The Pendant is water-resistant, but the accessories are not. -
Page 14: Do's And Don'ts
Do’s and Don’ts Wear Day and Night Fully Insert in Cradle Do Not Discard Pendant Dry Pendant and Patch Turn Off Before Do Not Submerge Changing Battery Keep Near Handset Return Promptly - Do Not Move Patch Leave Kit for Mail Over to Shoulder Area Carrier to Pick Up in any USPS Mailbox... -
Page 15: Making A Symptom Recording
Making a Symptom Recording Select Diary Options Tap Manual and From the Three When You Experience Drop-down Menus, Select Your a Symptom, Press the Symptoms, Location and Activity. Symptom Button on Tap Save When Finished. Pendant or Handset Audio Diary Cardiac Monitor Tap Audio and Speak Clearly Press Manual or Audio to... -
Page 16: Troubleshooting
Troubleshooting Text highlighted in YELLOW on the Handset are Action Messages and require your attention. Please follow these simple instructions to return to full monitoring. Press and Hold Tap Yes and Press and Hold POWER OFF Wait Until the the Power Button on the Handset User Requested on the Side of the... - Page 17 Chest by Using Finger to Press Inside of Cradle and Rest of Patch Against Chest Replace Pendant and Turn On Handset Turn On If you are unable to resolve an issue and for help with other yellow banner messages, call Medicomp at 877-996-5553...
-
Page 18: Connecting The Monitor To Wi-Fi
Connecting the Monitor to Wi-Fi Tap the Wi-Fi Symbol at Read and Accept the the Top of the Home Screen Terms of Use on Medicomp’s Phone Toggle the Wi-Fi Switch Enter Your Password, to the “On” Position and Press Connect, and... -
Page 19: Procedure Ending Instructions
Procedure Ending Instructions Remove Patch with Remove Pendant Pendant from Chest Discard Patch Only Insert All Contents / Unused Supplies Back into the Box Close and Seal the Box Promptly Leave for Mail Carrier in Any USPS Mailbox... -
Page 20: Returning The Monitor Kit
Returning the Monitor Kit Return your Kit promptly so your doctor can finalize your study. Unreturned devices could slow delivery to your doctor, result in a bill for the unreturned equipment, and delay helping the next patient. Leave for mail carrier in any USPS mailbox.
