2C. Mounting
2C-1. Floor Mounting
The Solar Eclipse is shipped with the Mounting
Feet installed in the floor mounting position. Adjust
the position of the feet if necessary and tighten the
screws. Mount the Solar Eclipse to the equipment
pad through the slots provided in the feet using
appropriate hardware for the mounting surface.
2C-2. Wall Mounting
The Solar Eclipse unit does not have holes for wall
mounting but can be mounted on the wall if desired.
1. Drill holes in the back of the enclosure
approximately as shown in Figure 2.
2. Remove Cover with a #2 Phillips driver and
clean out debris.
3. Install Mounting Feet in drilled holes with
hardware provided.
4. Mount unit to wall through the slots provided
in the Feet using appropriate hardware for the
mounting surface.
2D. Electrical
2D-1. Main Power
Connect the Solar Eclipse to the pool timing clock
so that the Solar Eclipse operates simultaneously
with the pool pump. The Solar Eclipse has four
available knockouts for a 1/2" conduit fitting, two
on the back and one on each side. Remove only
the ideal knockout for the installation and install
the proper conduit fitting. Remove the Cover (Refer
to Section 4C-1) and locate the Terminal Block
FRONT FITTING
WATER IN
SOLAR
ECLIPSE
WATER BACkFLOW CHECk
VALVE (OPTIONAL)
REAR FITTING
WATER OUT
HEATER

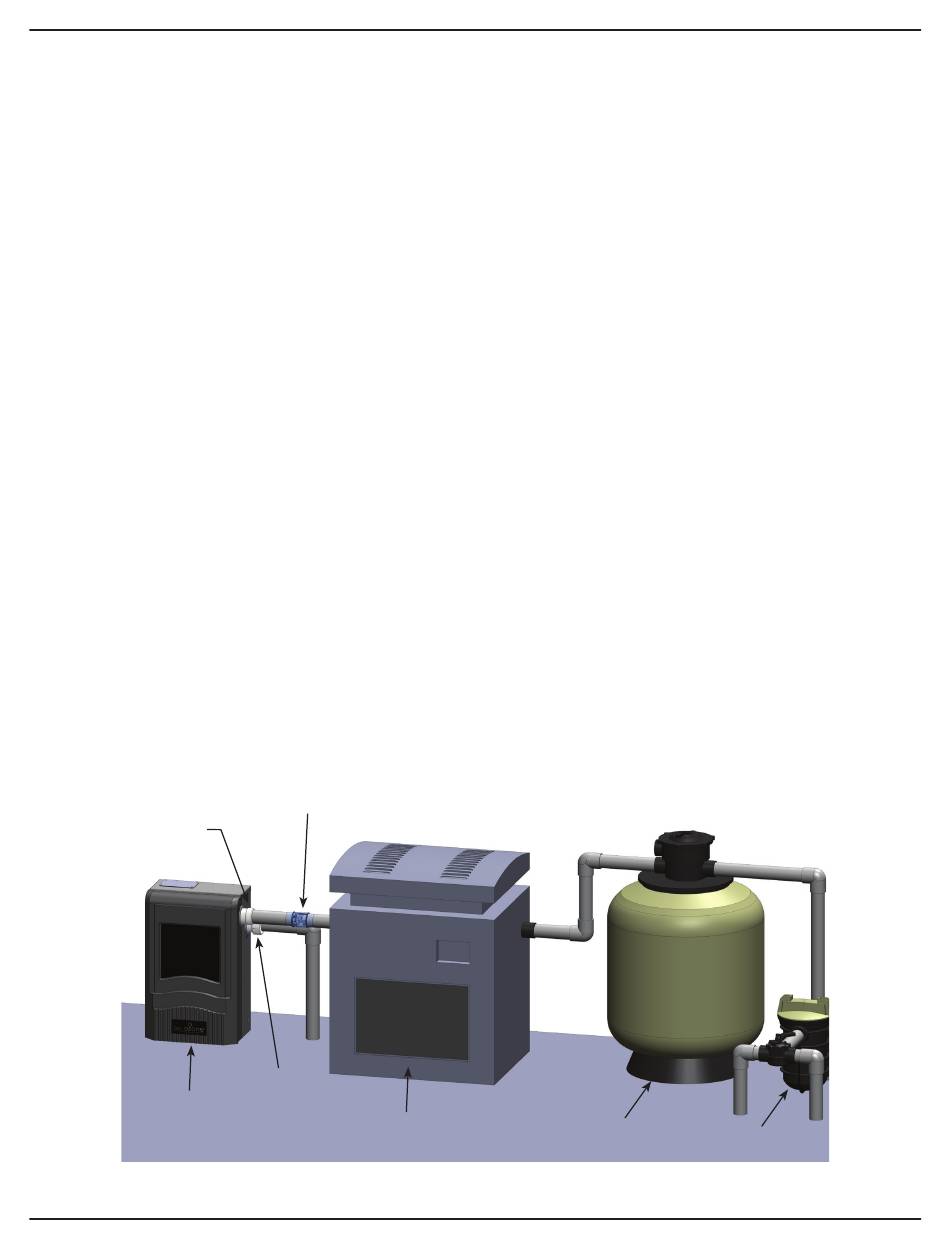

Figure 3: Solar Eclipse Location in Pool Loop
Solar Eclipse Installation & Operations Manual
(Refer to Figure 5) on the left side of the enclosure.
Connect Line 1, Line 2, and Ground to the Terminal
Block as indicated by the label on the Generator
Bracket. Refer to the IMPORTANT SAFETY
INSTRUCTIONS at the beginning of this manual for
important wiring information.
2D-2. Grounding Lug
Using a solid copper conductor, connect to the
Grounding Lug on the left side of the Solar Eclipse
to an appropriate earth contact.
2E. Plumbing
The Solar Eclipse can easily be added into the
pool's plumbing loop. All the components are
contained inside the enclosure so only the water
inlet and outlet need to be installed into the pool's
return line.
2E-1. Plumbing the Solar Eclipse
The Solar Eclipse must be installed in the pool's
main return line after all other pool equipment
(pump, filter, heater, and cleaner). Figure 3 shows
the most basic installation. For installation with
additional sanitizers and pool cleaners contact DEL
Technical Support (see Section 6A).
The Solar Eclipse will come with one half of a union
fitting installed on Inlet and Outlet, the other half of
the fittings will be located in the Solar Eclipse parts
bag. Use the union fittings provided to connect
the Solar Eclipse inlet and outlet to your pool's
FILTER
2
PUMP
