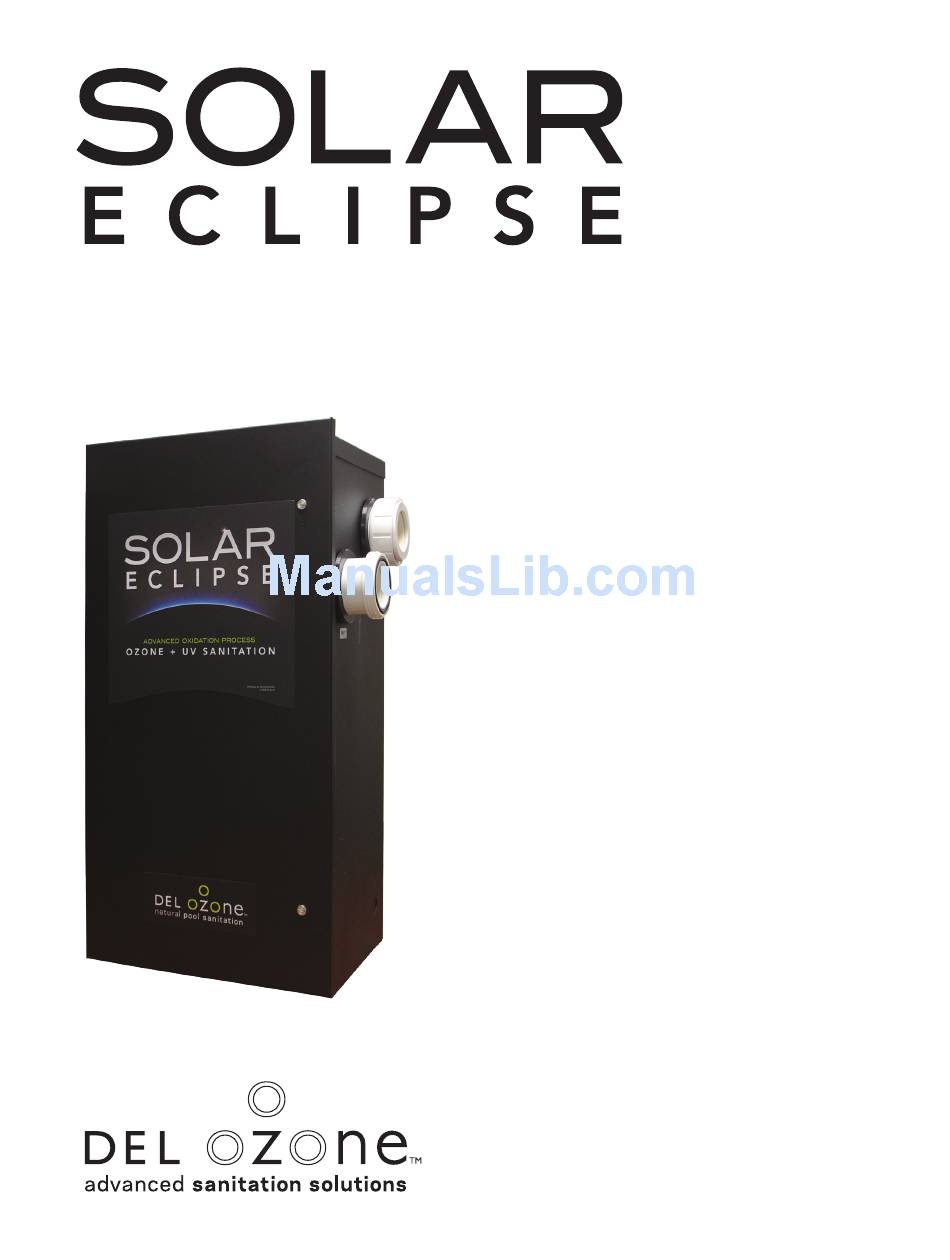

- Page 1 Ozone plus UV Sanitation System Installation & Operations Manual 3580 Sueldo Street, San Luis Obispo, CA 93401 | 800.676.1335 | o3info@delozone.com | www.delozone.com 4-2305-01 Rev.B...
-
Page 2: Table Of Contents
• Mount the Solar Eclipse so that it is inaccessible to anyone in the pool. Never attempt any servicing while unit is wet. • Warning - Short-term inhalation of high concentrations of ozone and long term inhalation of low concentrations of ozone can cause serious harmful physiological effects. -
Page 3: Section 1 General Information
LAMP ACCESS INDICATOR PANEL LIGHTS 2B. Location The Solar Eclipse unit is designed for floor OUTLET mounting. Locate the unit in a clean, protected area, either indoors or outdoors (preferably out of direct sunlight). If possible, locate the unit out WARNING of reach of sprinklers or drainage spouts. -
Page 4: Mounting
Appendix A. using appropriate hardware for the mounting surface. The Solar Eclipse will come with one half of a union fitting installed on Inlet and Outlet, the other half of 2D. Electrical the fittings will be located in the Solar Eclipse parts bag. -
Page 5: Section 3 Operation
Solar Eclipse Installation & Operations Manual 2E-3. Water Backflow Check Valve 1. If the Solar Eclipse is mounted below the water If the pool equipment is mounted above the water level, bypass valves must all be CLOSED to line, a check valve must be installed between the... -
Page 6: System Maintenance
If there is evidence of water leaking GENERATOR past the Ozone Check Valve toward the Ozone ASSEMBLY Modules, shut down the Solar Eclipse immediately and replace the Ozone Gas Line. If water entered FLOW SWITCH the Ozone Modules, run the filtration system so air will be drawn through the Ozone Modules and they can dry out. -
Page 7: Uv Reactor Service & Maintenance
Solar Eclipse Installation & Operations Manual 4C-2. Replacing an Ozone Module 4D-1 Lamp Removal 1. Open the Solar Eclipse as described in Section 1. Locate the UV Lamp Access Panel on the top 4C-1. of the Solar Eclipse, remove the 4 screws with 2. -
Page 8: Section 5 Trouble Shooting
Lamp Retainer to the UV Reactor 1. No power to the Solar Eclipse from the Power using the Lamp Retainer Screws and Washers Source: as shown in Figure 7. Make sure the Lamp a. -
Page 9: Section 6 Contact Information
Solar Eclipse Installation & Operations Manual Symptom: Red Indicator will not go out. 1. Insufficient flow through Solar Eclipse. a. Verify that pump is running properly and that filter and skimmers are clean. b. Clear any blockages in return line. -
Page 10: Appendix A: Installation Plumbing
Solar Eclipse Installation – Plumbing The DEL Ozone Solar Eclipse works under vacuum. The injector in the Solar Eclipse draws the ozone/air gas mixture from the ozone cells and mixes it into the water leaving behind some un-dissolved gas bubbles. These bubbles can affect certain pool system components, so care must be taken when installing the ozone Solar Eclipse. -
Page 11: Warranty
After this information is provided, DEL Ozone may release a RETURN GOODS AUTHORIZATION (RGA) NUMBER. After receiving the RGA number the part in question must be returned to DEL Ozone, freight prepaid, with the RGA number clearly marked on the outside of the package. All preauthorized defective parts must be returned to DEL Ozone within thirty (30) days. - Page 12 3580 Sueldo Street, San Luis Obispo, CA 93401 | 800.676.1335 | o3info@delozone.com | www.delozone.com EPA Estab. No. 071472-CA-001...
