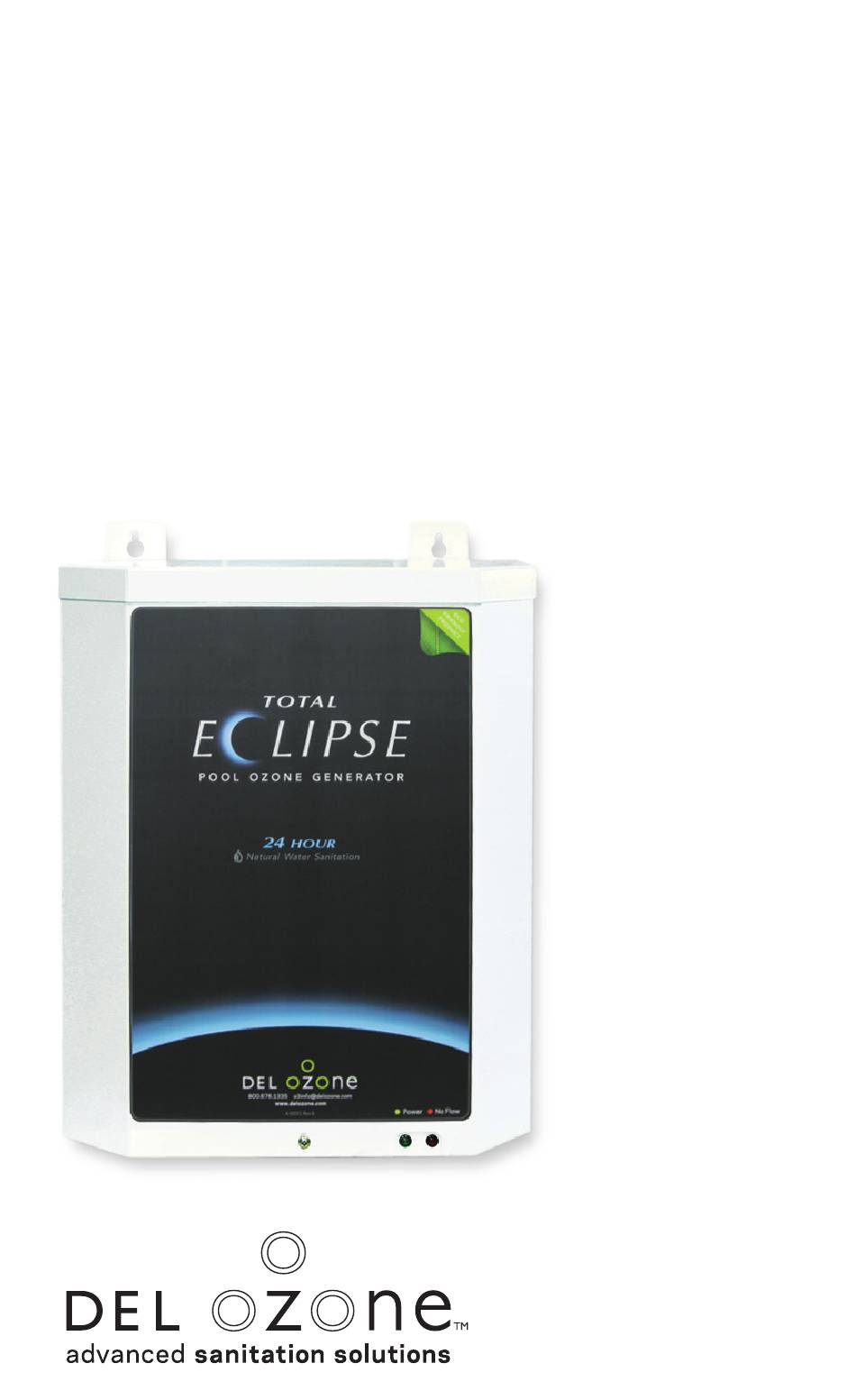

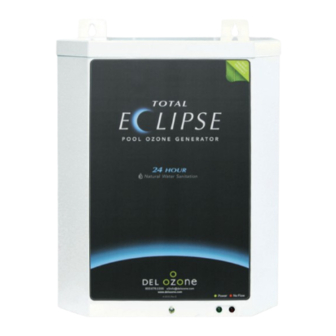

- Page 1 Total Eclipse ECT-2 and ECT-4 Installation & Operations Manual 4-0026 Rev.F...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS. • Read this manual completely before attempting installation. • All permanent electrical connections should be made by a qualified electrician. • For cord and plug-connected units, connect to a grounded, grounding type receptacle only. If the Total Eclipse™ electrical connection is to be attached to the pool controls, be sure the pool controls are protected by a Ground Fault Circuit Interrupter (G.F.C.I.).
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION 1 General Information 1A. Description ..................1 1B. Specifications ..................1 SECTION 2 Installation & Operation 2A. Installation ..................1 2B. Operation ..................3 2C. Maintenance ..................4 SECTION 3 Trouble Shooting ..........8 SECTION 4 Replacement Parts & Ordering Information 4A. -
Page 4: Section 1 General Information
Total Eclipse Installation & Operations Manual SECTION 1 General Information 1A. Description The Total Eclipse is designed to recirculate pool water while injecting ozone 24 hours a day. With the Total Eclipse you will maximize your ozone effectiveness while minimizing your operating costs. - Page 5 Total Eclipse Installation & Operations Manual NOTE: Exceeding the recommended elevations may affect the water circulation rate (i.e. Total GPM/ozone delivery). c. Even though the Total Eclipse is designed for outdoor use, care should be taken when choosing a mounting location. To protect your investment, mount the Total Eclipse where it is protected from the elements (direct sun, rain, dirt), completely sheltered if possible while providing adequate ventilation.
-
Page 6: Operation
Total Eclipse Installation & Operations Manual c. The recommended location to plumb the Total Eclipse inlet “T” is after the filter and before the heater. NOTE: If returned directly to the skimmer, the ozonated water will be drawn back into the filtration system and will not mix with the pool water as effectively. -
Page 7: Maintenance
Total Eclipse Installation & Operations Manual main circulation pump, the red light will go out, indicating that the unit is operating properly. 2C. Maintenance - Refer to Figure 5 2C‐1. Ozone Module Replacement The Ozone Module consists of a power supply and ozone cell. The Ozone modules have a life expectancy of 15,000 hours (approximately two years for continuous use and five years for seasonal use). - Page 8 Total Eclipse Installation & Operations Manual Common Installation Diagrams NOTE: The following two-dimensional diagrams are for illustration purposes only, indicating the required key components. Plumbing orientation (i.e. depth below ground) may vary from pool to pool. Note: 1. To help break up the bubbles at floor entry, we suggest using a “Salt &...
- Page 9 Total Eclipse Installation & Operations Manual Note: 1. “V” stands for multiport, diverter valve. 2. The Total Eclipse will shut down when in Spa Mode and will restart when returned to Pool Mode. 3. We suggest using an eyeball fitting or reducer nozzle at the point of entry (ie: the wall).
- Page 10 Total Eclipse Installation & Operations Manual Air Filter ( cap and cotton filter) Ozone Cell (one per ozone module) Ozone Power Supply Mounting Bracket Ozone Module Sub-Assembly. ECT-2 (4 module option) ECT-4 (6 module option) Ozone Check Valve Ozone Module Manifold (black) Power Supply Mounting Screw Ozone Injector Wire Connector...
-
Page 11: Section 3 Trouble Shooting
Total Eclipse Installation & Operations Manual SECTION 3 Trouble Shooting 1. The green light is on, indicating power to the unit; but the red light is also on, and the Total Eclipse won’t run. a. Ensure that the 5lb. check valve is plumbed in the main plumbing line after the tee to the water inlet of the Total Eclipse. -
Page 12: Ordering Information
Total Eclipse Installation & Operations Manual 4. The Total Eclipse lost power during a power outage. Once power returns to the main pool pump and the Total Eclipse, it will restart and continue running as soon as flow is detected from the main pool pump. 5. -
Page 13: Appendix A Warranty
APPENDIX A: Warranty APPENDIX A: Warranty... - Page 14 After this information is provided, DEL Ozone may release a RETURN GOODS AUTHORIZATION (RGA) NUMBER. After receiving the RGA number the part in question must be returned to DEL Ozone, freight prepaid, with the RGA number clearly marked on the outside of the package. All preauthorized defective parts must be returned to DEL Ozone within thirty (30) days.
- Page 16 3580 Sueldo Street, San Luis Obispo, CA 93401 (800) 676-1335 o3info@delozone.com www.delozone.com EPA Estab. No. 071472-CA-001...
