General Information; Description; Specifications; Warranty Summary - Del ozone Eclipse-1 Installation & Operation Manual

SECTION 1 General Information
1A Description
The DELZONE Eclipse Corona Discharge (CD) series ozone
®
generators described in this manual are designed to provide
the benefits of ozonated water in an environmentally safe and
effective manner. The high quality, specially engineered compo-
nents ensure efficient ozone output and reliable performance.
As a result of proper use of the DELZONE
erators, unpleasant effects of traditional chemical use are virtu-
ally eliminated. The DELZONE
safe and harmless to your equipment when installed properly.
1B Specifications
Ozone Output:
Ozone output (+10%):
Flow rate:
Power Requirements:
Domestic:
EC-1 . . . . 120V, 60 Hz, 1Ø, 0.06 Amp
. . . . . . . . 240V, 60 Hz, 1Ø, 0.03 Amp
EC-2 . . . . 120V, 60 Hz, 1Ø, 0.12 Amp
. . . . . . . . 240V, 60 Hz, 1Ø, 0.06 Amp
EC-4 . . . . 120V, 60 Hz, 1Ø, 0.24 Amp
. . . . . . . . 240V, 60 Hz, 1Ø, 0.12 Amp
International:
EC-1 . . . . 240V, 50 Hz, 1Ø, 0.03 Amp
EC-2 . . . . 240V, 50 Hz, 1Ø, 0.06 Amp
EC-4 . . . . 240V, 50 Hz, 1Ø, 0.12 Amp
Shipping Weight:
EC-1: Approx. 3.5 pounds / 1.6 kg
EC-2: Approx. 5.5 pounds / 2.5 kg
EC-4: Approx. 10.5 pounds / 4.8 kg
Location Requirements:
Mounting: Wall mount in a clean, protected area.
Ambient Temp: 30°F - 120°F (0°C - 50°C)
1C Warranty Summary
Limited Warranty:
1 year warranty on entire generator. See Warranty section (page
5) for limitations and details on obtaining warranty service.
Eclipse CD ozone gen-
®
Eclipse CD ozone generators are
®
Eclipse-1 (EC-1) .......0.25 g/hr
Eclipse-2 (EC-2) ........0.5 g/hr
Eclipse-4 (EC-4) ........1.0 g/hr
15 scfh
DELZONE ® Eclipse 1, 2, & 4 Corona Discharge Ozone Generators
SECTION 2 Installation
2A Location
The DELZONE Eclipse units are designed for wall mount-
®
ing. See Figure 1. Mount generator in a clean, protected
area, either indoors or outdoors (Preferably out of direct
Sunlight). Locate generator out of reach of sprinklers or
drainage spouts. Allow sufficient access for maintenance
and all tubing and electrical wires. Ozone generator should
be installed at least (not less than) one foot above the maxi-
mum water level. Note: Injector manifold needs to be installed
after all other equipment or possible failure may occur.
2B Wall Mounting
1. Refer to Figure 1 to mark the locations for the four mount-
ing screws.
2. Install screws (or other hardware appropriate for mounting
surface) through the four mounting holes built in to the top
and bottom end caps on the Eclipse.

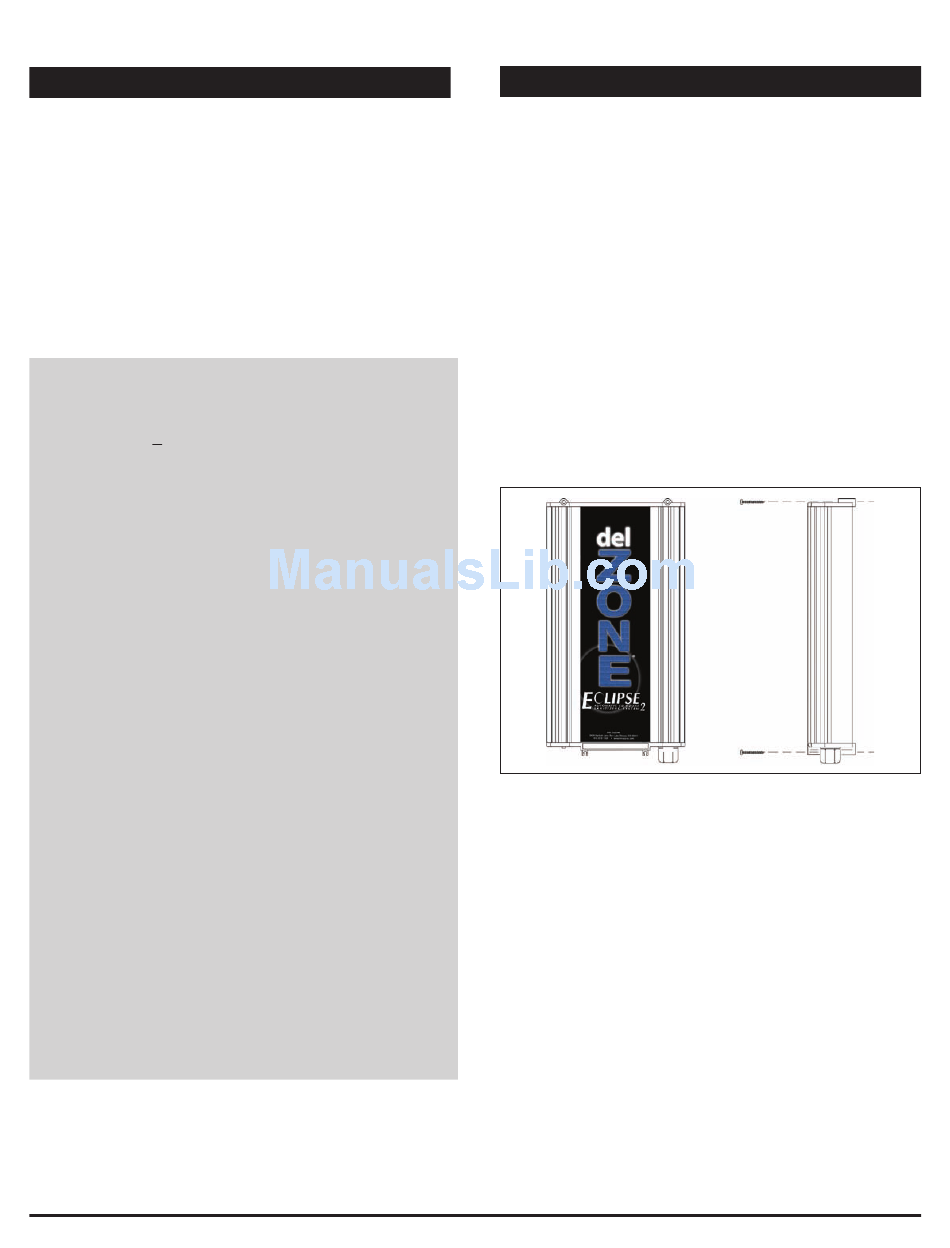

Figure 1 Wall Mount
2C Electrical
2C-1. Main Power: Connect the DELZONE
timing clock so that the DELZONE
ously with the pool pump. The circuit must be protected by a
ground-fault circuit interrupter (GFCI) installed in accordance
to electrical code. Refer to the IMPORTANT SAFETY INSTRUC-
TIONS at the beginning of this manual for important wiring
information.
NOTE: The standard DELZONE
a power cord that terminates with a NEMA plug. For units
equipped with a conduit fitting, connect the Black wire to Line,
the White wire to Neutral, and the Green wire to Ground.
2C-2. Grounding Lug: Using a 6-14AWG conductor, connect
the Grounding lug on the right side of the DELZONE
to an appropriate earth contact.
1
Eclipse to the pool
®
Eclipse operates simultane-
®
® Eclipse is equipped with
Eclipse
®
