Solar Eclipse Installation & Operations Manual

SECTION 1 General Information

1A. Description
The Solar Eclipse Ozone and UV Sanitation
System described in this manual is designed to
provide the benefits of ozonated and UV treated
water in an environmentally safe and effective
manner. The high quality, specially engineered
components ensure efficient water sanitation output
and reliable performance. As a result of proper use,
the Solar Eclipse virtually eliminates the unpleasant
effects of traditional chemicals. The Solar Eclipse
ozone generators are safe and harmless to your
equipment when installed properly.
INDICATOR
LIGHTS
WARNING
LABELS
GROUNDING
LUG
kNOCkOUTS
(1/2" CONDUIT)
FUSE

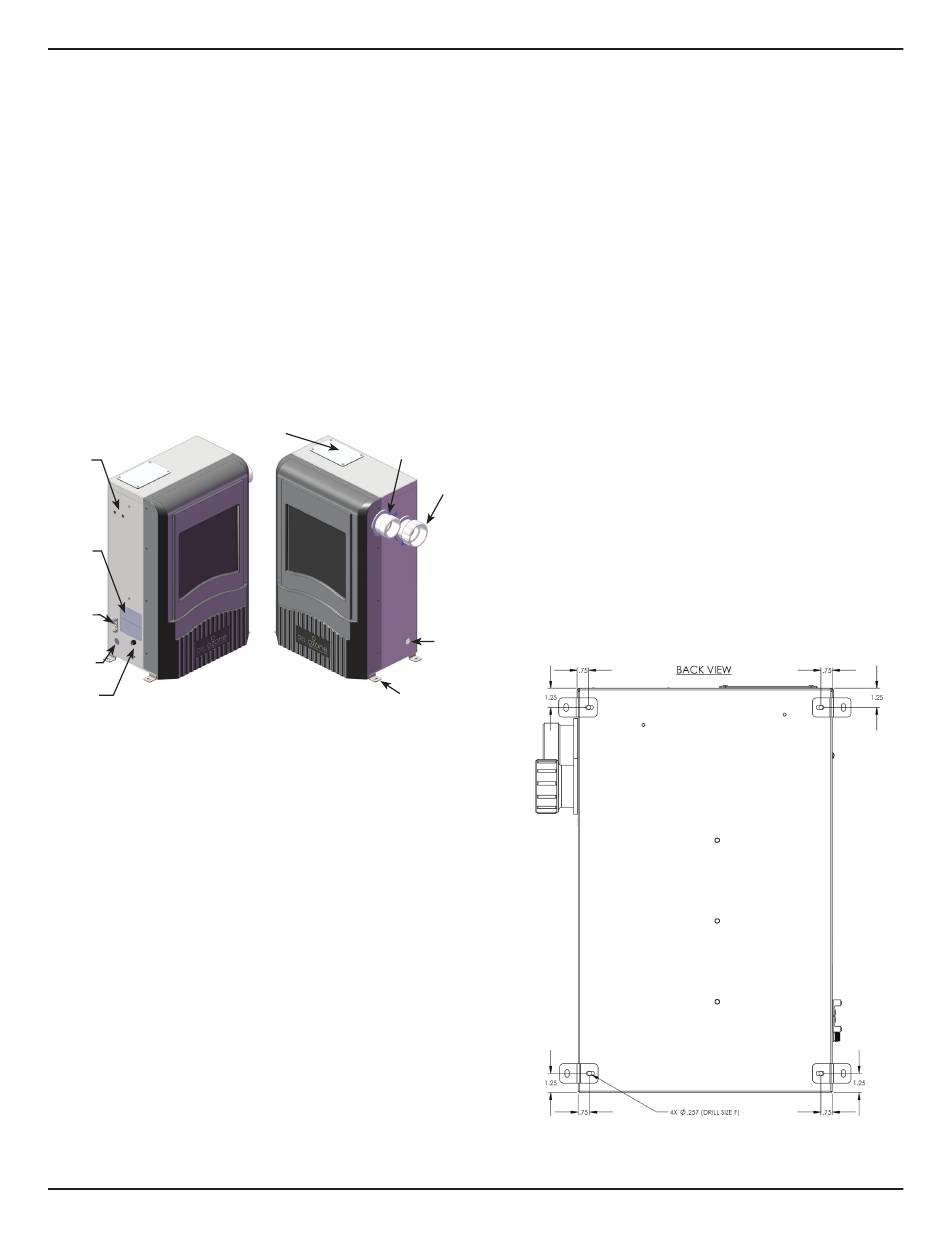

Figure 1: Overview
1B. Specifications
Power Requirements:
240V, 60 Hz, 1Ø, 0.06 Amp
Shipping Weight:
Approx. 41 lbs / 18.6 kg
Location Requirements:
Mounting:
Ambient Temp.:
1C. Warranty Summary
Limited Warranty:
Two year limited warranty. See last page for details.
LAMP ACCESS
PANEL
INLET
MOUNTING FEET
Floor Mounted
30°F - 120°F (0°C - 50°C)

SECTION 2 Installation

2A. Pool Preparation
To achieve optimal performance from the ozone
system, the pool must be as clean as possible to
start with.
1. Backwash or clean filters one day before
starting the ozone generator.
2. Superchlorinate pool water using a chlorine
based shock treatment prior to ozone system
start-up.
3. Test pool chemistry and adjust pH between 7.4
and 7.6. Adjust total alkalinity between 80 and
120 ppm.
4. Run pool filtration continuously for 24 hours
prior to starting ozone system.
2B. Location
The Solar Eclipse unit is designed for floor
OUTLET
mounting. Locate the unit in a clean, protected
area, either indoors or outdoors (preferably out
of direct sunlight). If possible, locate the unit out
of reach of sprinklers or drainage spouts. Allow
sufficient access for maintenance (2 ft clearance
above and 1 ft around the unit) and all plumbing
and electrical hookups.
kNOCkOUTS
(1/2" CONDUIT)
Figure 2: Wall Mounting Hole Pattern
1
