System Maintenance; Ozone Module Servicing - Del ozone Solar Eclipse Installation & Operation Manual

The Ozone Check Valve in this line prevents water
from migrating back to the Ozone Modules when
the Solar Eclipse is not running.
4A-5. Ozone Module Filters and Orifice
The air entering the Ozone Modules passes
through individual Filters and an Orifice on each
Module inlet. The Filters and Orifices are held in
place by the rubber Filter Cap. (Refer to Figure 5
for a more detailed view)
4A-6. Injector Tube Adapter
This connects the Ozone Gas Line to the Injector
Manifold. When servicing this component, do not
tighten past 10 in/lbs or the component may be
damaged.
OzONE
GENERATOR
ASSEMBLY
OzONE GAS
LINE & OzONE
CHECk VALVE
UV REACTOR
INjECTOR TUBE
ADAPTER

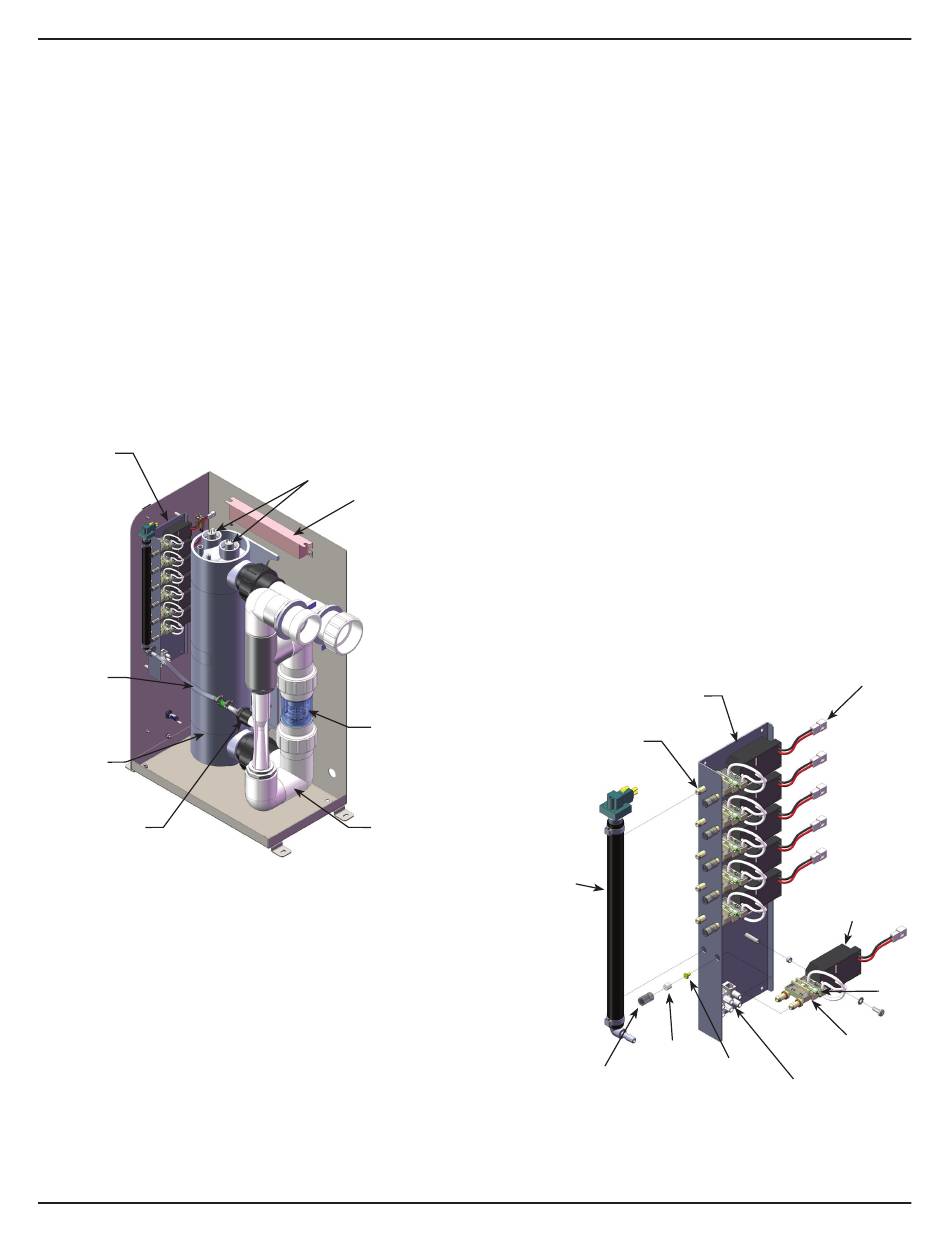

Figure 4: Solar Eclipse Electro-Mechanical Overview
4B. System Maintenance
All system maintenance must be performed with
either the UV Access Panel or Enclosure Cover
removed. You will need a size 2 phillips head driver
to remove these components
4B-1. Ozone Module Maintenence
The green Ozone Module Lights on the Ozone
Modules indicate that the Ozone Power Supply is
UV LAMPS
BALLAST
DEL CHECk
VALVE
INjECTOR
MANIFOLD
Solar Eclipse Installation & Operations Manual
operating properly. When an indicator light goes
out, replace the corresponding Ozone Module.
4B-2. Ozone Module Replacement Interval
Ozone module life expectancy is 5 years. Even if
the Ozone Module Light(s) are glowing, the Ozone
Module may be producing little or no ozone after
this period of time due to contamination within the
corona discharge ozone chamber.
4B-4. Ozone Gasline Replacement Interval
Replace the Ozone Gas Line every year or sooner,
if needed. If there is evidence of water leaking
past the Ozone Check Valve toward the Ozone
Modules, shut down the Solar Eclipse immediately
and replace the Ozone Gas Line. If water entered
the Solar Eclipse, allow the unit to dry completely
before restarting the unit.
WARNING: Trace amounts of nitric acid may be
present in the Ozone Gas Line. Wear proper safety
equipment (gloves and eye protection) and avoid
direct contact with any condensation in the line.
4C. Ozone Module Servicing - Refer to
Figure 5
OzONE MODULE
BRACkET
TUBE FITTING
OzONE
OUTLET
MANIFOLD
FILTER
CAP
Figure 5: Ozone Generator Subassembly
4
POWER
CONNECTOR
MODULE POWER
SUPPLY
MODULE
OzONE
MODULE
ORIFICE
TERMINAL
BLOCk
OzONE
LIGHT
