Summary of Contents for Omcan FW-CN-1800

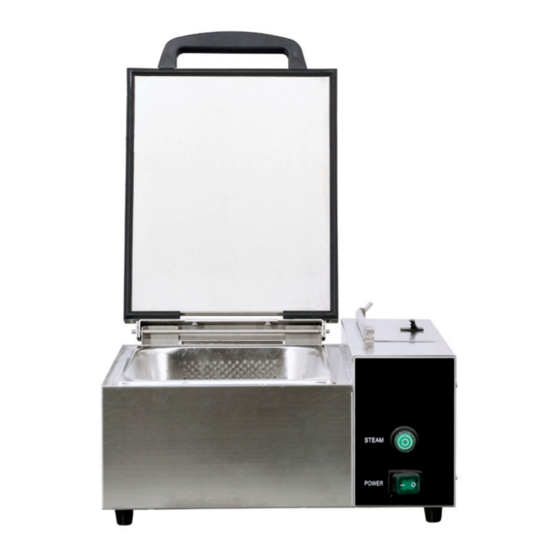

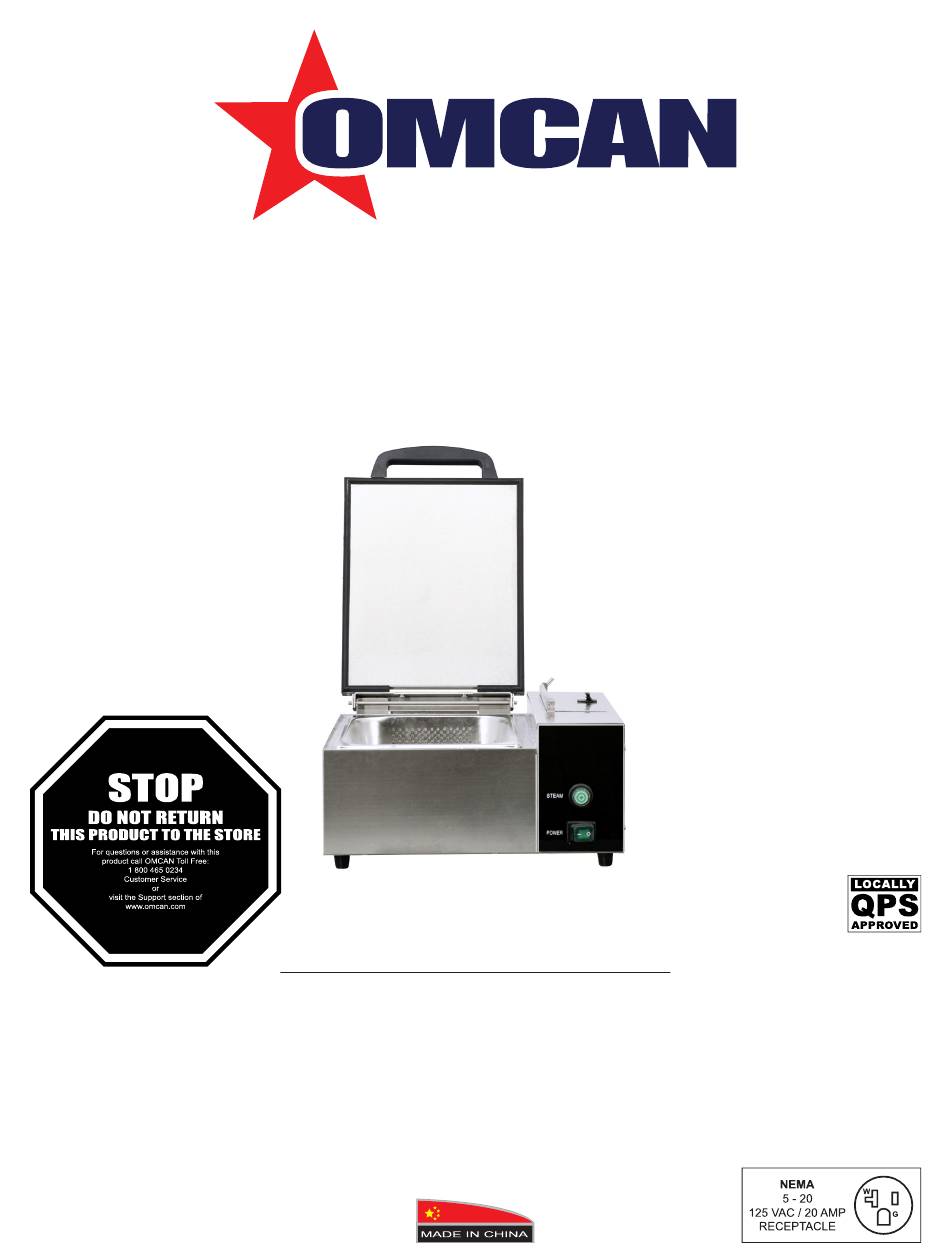

- Page 1 Countertop Steamer Model FW-CN-1800 Item 44407 Instruction Manual Revised - 11/05/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FW-CN-1800 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation -------------------------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 6 Maintenance ------------------------------------------------------------------------------------ 7 - 8 Parts Breakdown ----------------------------------------------------------------------------------- 9 Electrical Schematics... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model FW-CN-1800 Capacity 1/2 GN Material Stainless Steel Power 1800W Electrical 120V / 60Hz / 1 Dimensions 16.5” x 15” x 7.9” / 420 x 380 x 200mm Item Number 44407 Installation 1. Remove all packing materials both inside and outside the unit and place on a flat surface. -
Page 7: Maintenance
Maintenance CLEANING NOTE: To maintain cleanliness and increase service life, the unit should be cleaned daily. Do not immerse the unit in water or any other liquid. If liquid enters the electrical compartment it may cause a short circuit or electrical shock. DAILY MAINTENANCE •... - Page 8 5. Re-install the filter stem into the bottom hole of the tank. 6. Fill the water tank and test the unit. REFERENCE Item Number Model Number Description Manufacturer Model Number Countertop Steamer Stainless Steel 44407 FW-CN-1800 Half Size Capacity 1800W 120V/60Hz/1 FZ-01 cQPS...
-
Page 9: Parts Breakdown
Parts Breakdown Model FW-CN-1800 44407 Item No. Description Position Item No. Description Position Item No. Description Position 67692 Top Cover for FZ-01 67700 Humidity Control for FZ-01 67708 Power Cord for FZ-01 67693 Handle for FZ-01 67701 Power Switch for FZ-01... -
Page 10: Electrical Schematics
Electrical Schematics Model FW-CN-1800 44407... -
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 12 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
