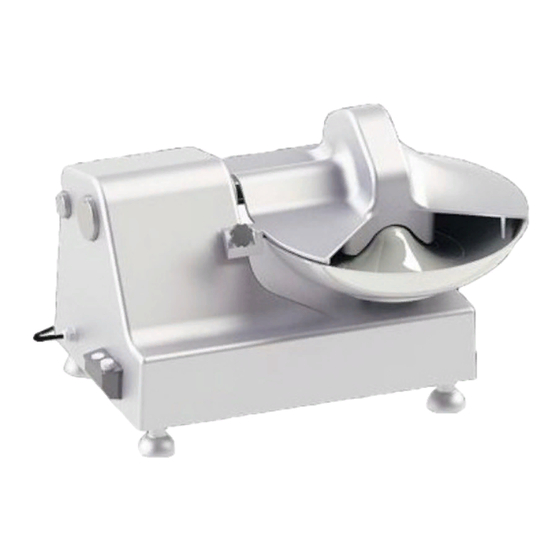

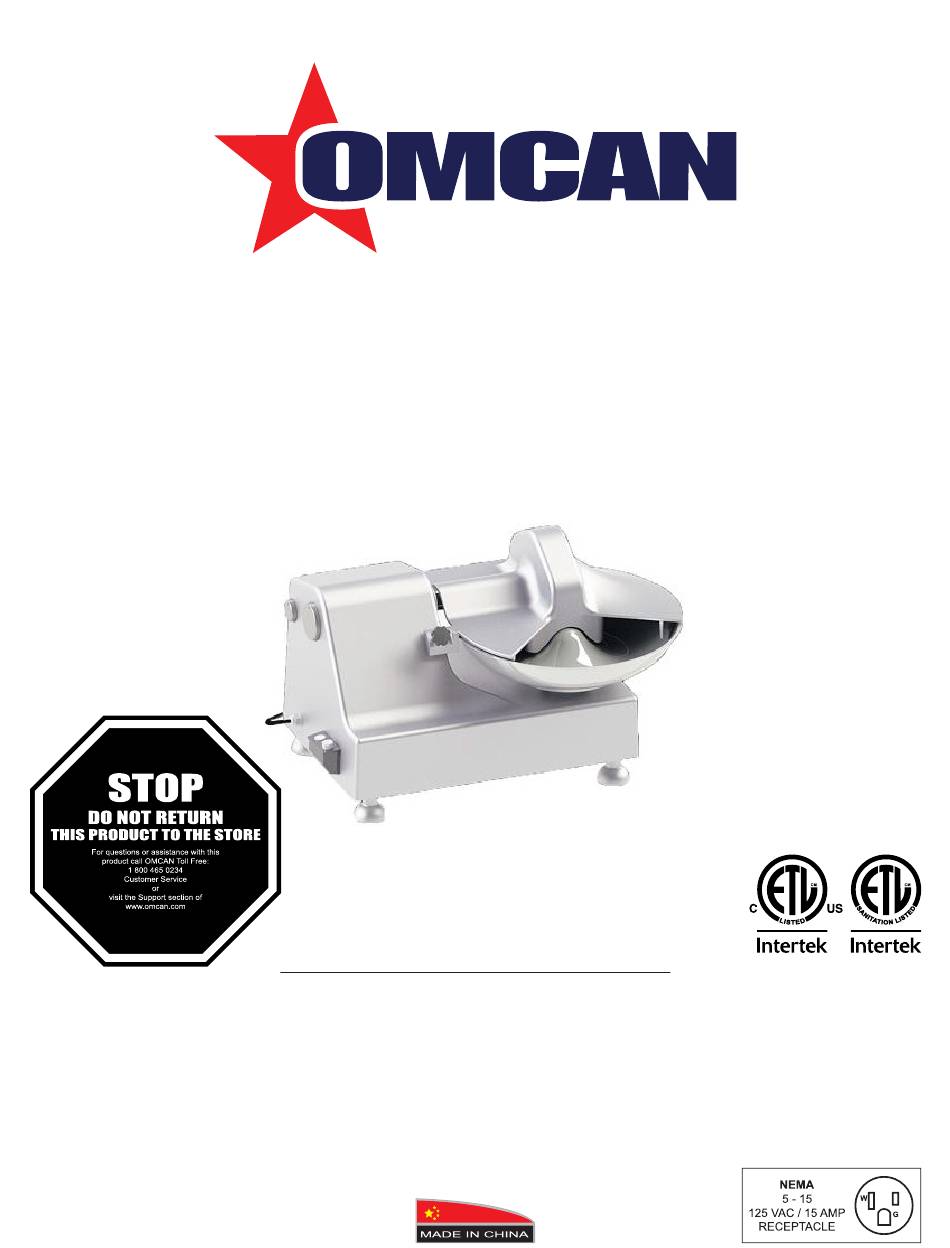

- Page 1 Bowl Cutter Model FP-CN-0010 Item 47191 Instruction Manual Revised - 11/16/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FP-CN-0010 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ------------------------------------------------------------------------------------- 7 - 8 Parts Breakdown ----------------------------------------------------------------------------- 9 - 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model FP-CN-0010 Working Capacity 480.6 lbs. / 218 kgs./h Electrical 110V / 60Hz / 1 Power 750W Speed of Motor 1450r/min Speed of Knife 1450r/min Speed of Bowl 17r/min Diameter of Bowl 18.1” / 460mm Depth of Bowl 3.3”... -
Page 7: Installation
Installation own) extension line terminal blocks, reliable and marks on equipotential connection wires. PREOPERATIONAL CHECK Before the first operation, need to proceed with these steps: 1. Carefully unwrapped the package and read the “instruction manual”. 2. Inspect each part, whether the fasteners have loosened in transit, switch and the power cord is damaged, and check the power supply voltage that it is compatible with them main switch. -
Page 8: Maintenance
Check the cutting blade whether firmly installed, if there is any damage, and before starting the machine. 2. Belt. The belt should be regularly adjusted, after 2-3 years belts should be replaced, it is necessary to contact Omcan for parts and service. 3. Cable. Regularly check the cable, replace if necessary, please contact Omcan. -
Page 9: Parts Breakdown
Parts Breakdown Model FP-CN-0010 47191... - Page 10 Parts Breakdown Model FP-CN-0010 47191 Item No. Description Position Item No. Description Position Item No. Description Position AI128 Rear Bearing Cap for 47191 AI152 Locking Handle for 47191 AI176 Capacitor of Motor for 47191 AI129 Rear Bearing Gland for 47191...
-
Page 11: Electrical Schematics
Electrical Schematics Model FP-CN-0010 47191... -
Page 12: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 13 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 14 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
