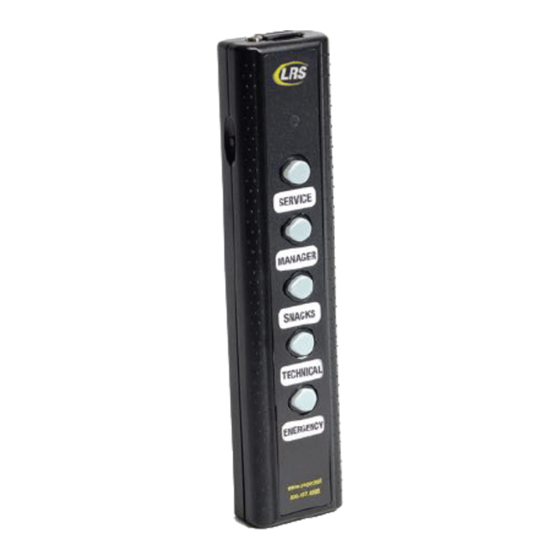

- Page 1 P R O G R A M M I N G M A N U A L Butler II Five Button System MODEL: TX-1605-5 Long Range Systems, LLC. LRSUS.COM | 800.437.4996 | 214.553.5308 XU-0029 110817...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Programming the Bulter II Install Programmer Connecting the Butler II Setup Data Update Unit Buttons and Input Tab Setup Buttons 1 through 5 External Input Button Advanced Features Tab Setup Lockout System ID Repaging Enable Low Battery Page Save a Configuration Load an Existing Configuration Programming Pagers... -
Page 3: Programming The Bulter
PROGRAMMING THE BUTLER II The Butler II with 5 buttons and single external input can be programmed to page up to six different pager numbers (or any number of pagers with the same number). Install Programmer Butler II Programming 1. Find the software and download it from lrsus.com/downloads. 2. -
Page 4: Setup Data
Operation 3. Ensure the Butler II’s red light is faintly flashing. Setup Data 4. Press the Read Butler button on the programmer software, this will check the contents of the Butler II. 5. Setup or change any of the current Butler II settings as needed using the program- ming screen tabs. -
Page 5: Buttons And Input Tab Setup
BUTTONS AND INPUT SETUP The Buttons section is used to setup the message sent to the pager when a Butler II button is pressed. To set up a pager message: NOTE: A button must be enabled to operate. Button 1 is closest to the external input port. -
Page 6: Advanced Features Tab Setup
ADVANCED FEATURES TAB SETUP Auto ON/Off Allows the Butler II to automatically enable and disable at certain times of the day (e.g., a door alarm that is disabled during business hours). Three time periods can be set. To Set: 1. Insert batteries into transmitter. NOTE: If batteries are not inserted when power is removed, the Butler II’s internal clock will default to 12:00 AM. -
Page 7: Lockout
• Indefinite - The unit will only rearm if the external contact is activated. System ID In the event more than one LRS system is in a close proximity to another, a system ID can be changed to avoid interference (Note: Each individual pager must have it’s system ID changed). -
Page 8: Repaging Enable
Repaging Enable This feature will enable or disable resending pages when the button is pressed. NOTE: Acknowledge Page must be enabled for this feature to work. To set: 1. Click on Enabled box to enable or disable (a check mark indicates input is enabled). 2. -
Page 9: Low Battery Page
Low Battery Page The Butler II can send a low battery message to a selected pager when batteries are low. To set: 1. Enable the function. 2. Enter the pager that will be paged and the message that will be displayed. 3. -
Page 10: Load An Existing Configuration
LOAD AN EXISTING CONFIGURATION This feature allows the user to load a preset configuration to Butler II’s. To Load: 1. Select File, Load Configuration. 2. Select configuration file and Open. 3. Press Update Butler (USB cable must be attached to Butler II). USER MANUAL | Butler II LRSUS.COM | 10... -
Page 11: Programming Pagers
PROGRAMMING PAGERS Before programming a pager, make sure the pager is fully charged and still in charger or has fresh battery. Select from the menu Tools, Program Pagers. USER MANUAL | Butler II LRSUS.COM | 11... -
Page 12: Alpha Pagers
Alpha Pagers 1. Select the Alpha tab. 2. Enter an optional Welcome Message for RX-E467 Alpha Pagers (message appears when pager powers up). 3. Set the System ID. Must match System ID of Butler II. 4. Set the Pager Number and All Page number. 5. -
Page 13: Warranty
WARRANTY Long Range Systems, LLC (LRS) provides a one-year limited warranty on Complete Sys- tems. We warranty your system against defects in materials and workmanship that occur under ordinary use for one year from the original ship date. Warranty does not include damage to the product resulting from accident, natural disasters, misuse, improper electrical connection, or failure to charge the product within 30 days of receipt. -
Page 14: Terms & Conditions
Purchaser’s use of the Deliverables for any and all purpos- es; provided that LRS shall not identify any Purchaser, or distribute to third parties any “protected health information” (as defined by HIPAA) or billing or financial payment data of any customer or consumer of Purchaser, without the express prior consent of such Pur- chaser. - Page 15 LRS may at its option repair or replace any defective Deliverable or refund the money that Purchaser paid for it. LRS’s total liability for any defect in any Deliverable or for any other breach of any of its duties and obligations to Purchaser shall be limited to the amount of money that was paid for the defective Deliverable or the other duty or obligation.
- Page 16 LRS. In the event of any inconsistency between these General Terms and Conditions or any agreement that incor-...
- Page 17 Purchaser is responsible for providing accurate billing and contact information to LRS. LRS retains the right to suspend or terminate services if fees become past due. LRS reserves the right to change Service rates by providing Customer at least 30 days’ notice prior to billing.
- Page 18 USER MANUAL | Butler II LRSUS.COM | 18...
- Page 19 USER MANUAL | Butler II LRSUS.COM | 19...
