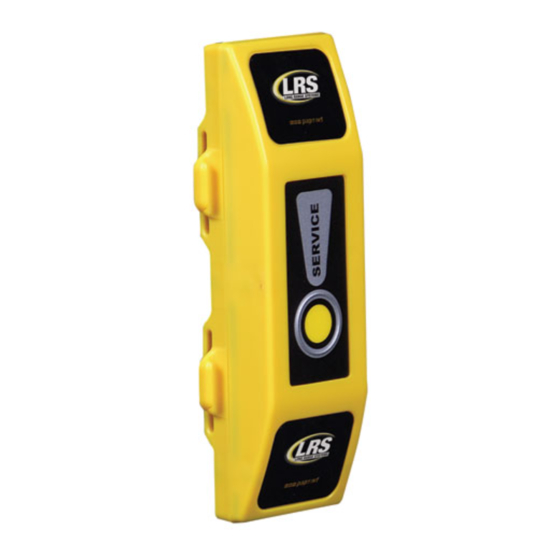

  4. Transmitter
  5. Butler XP
  6. Programming manual

LRS Butler XP Programming Manual

Paging system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Butler XP
P R O G R A M M I N G G U I D E
www.pager.net
www.pager.net
Installation, Warranty and Service Information
Long Range Systems, Inc.
4550 Excel Parkway, Suite 200
Addison, TX 75001
800.437.4996
www.pager.net
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Butler XP and is the answer not in the manual?

Questions and answers

Related Manuals for LRS Butler XP

Summary of Contents for LRS Butler XP

  • Page 1 Butler XP P R O G R A M M I N G G U I D E www.pager.net www.pager.net Installation, Warranty and Service Information Long Range Systems, Inc. 4550 Excel Parkway, Suite 200 Addison, TX 75001 800.437.4996 www.pager.net •...

  • Page 2: Table Of Contents

    Table Of Contents Launch Butler XP Application ....... .4 Read Butler ..........5 Configuring a Button Butler .

  • Page 3: Launch Butler Xp Application

    4. Select All Programs. 5. Select Beach Butler. 6. Select Butler Configurations Utility. 7. The Butler XP configurations screen will display. Manual Install 1. In the event the program does not automatically run on the PC: 2. Insert the CD into the PC drive.

  • Page 4: Read Butler

    1. Connect one end of the USB cable to the PC. 2. Connect the other end of the USB cable to the Butler XP. The USB connection is located in the Butler XP’s battery compartment. (Batteries are not required for programming).

  • Page 5: Configuring A Button Butler

    • The Update Butler button must be pressed for changes to be applied. Button Setup The Button section is used to set the message sent to the pager when the “Service” button on the Butler XP is pressed. To set a Message: 1.

  • Page 6: Group Paging Enable

    To set System ID: 1. From the System ID drop down box, select the ID number to use. 2. Click the Update Butler button to save the settings. 3. Reprogram pagers used with the system (refer to Programming Pagers on pg. 10). Group Paging Enable Group Paging allows you to page 2 or more pagers at the same time.

  • Page 7: Secondary Paging

    Secondary Paging The Secondary Paging feature, when enabled, will send a message to a second pager after the third repage cycle. This feature is useful if you want a backup person to respond to a customer’s request if the first per- son does not.

  • Page 8: Low Battery Page

    3. Enter a message. Once set, the function automatically alerts the selected pager when the batter- ies get low. Example: IF: Butler XP with ID of 5 has low batteries THEN: Pager will display “Low Battery 5” Repaging This feature will enable or disable the re-paging feature. When the “Service” button is pressed, the Butler transmitter will resend the message to the pager (at pre-set time intervals) until the page is cleared.

  • Page 9: Stop Re-Paging

    Stop Re-paging To stop repaging, hold the pager magnet over the Service button for 1 second. User will hear a beep to in- dicate repaging has ended. “BEEP” Hold magnet over circled area to stop repaging. Save a Configuration This feature allows the user to store a read or modified configuration from Button Butlers. File will save to a .b2c extension.

  • Page 10: Load An Existing Configuration

    Load an Existing Configuration This feature allows the user to load a preset configuration to Button Butlers. To Load: 1. Select File, Load Configuration. 2. Select configuration file and Open. 3. Press Update Unit (USB cable must be attached to the Button Butler). Programming Pagers Note: Before programming a pager, make sure the pager is turned OFF.

  • Page 11: Group

    Programming Individual Alpha Pagers 1. Select from the menu Tools, then Program Pagers. 2. Select the Alpha tab. 3. Set the System ID. Recommended System ID = 0. Note: Must match System ID of Button Butler 4. Set the Pager Number and the All Page number. (All Page is typically 911) 5.

  • Page 12: Troubleshooting

    11. Replace the battery and wait for the screen display to go blank (wait about 10 seconds). 12. Press Program to program the pager. A message box will appear to indicate programming. 13. The pager will beep four times to indicate it is being programmed. Programming is complete when the pager stops beeping.

  • Page 13: Warranty

    If this product should become de- fective within the warranty period, we will repair or replace it with an equivalent product, free of charge. LRS will return your product via UPS ground shipping. All warranty claims must be initiated through our cus- tomer service department.
  • Page 14 FCC STATEMENT 7KLV GHYLFH FRPSOLHV ZLWK 3DUW  RI WKH )&& 5XOHV 2SHUDWLRQ LV VXEMHFW WR WKH IROORZLQJ WZR FRQGLWLRQV  WKLV GHYLFH PD\ QRW FDXVHKDUPIXO LQWHUIHUHQFH DQG  WKLV GHYLFH PXVW DFFHSW DQ\ LQWHUIHUHQFH UHFHLYHG LQFOXGLQJ LQWHUIHUHQFH WKDW PD\ FDXVH XQGHVLUHG RSHUDWLRQ &KDQJHV RU PRGLILFDWLRQV QRW H[SUHVVO\ DSSURYHG E\ WKH SDUW\ UHVSRQVLEOH IRU FRPSOLDQFH FRXOG YRLG WKH XVHU V DXWKRULW\ WR RSHUDWH WKH HTXLSPHQW 127( 7KLV HTXLSPHQW KDV EHHQ WHVWHG DQG IRXQG WR FRPSO\ ZLWK WKH OLPLWV IRU...
