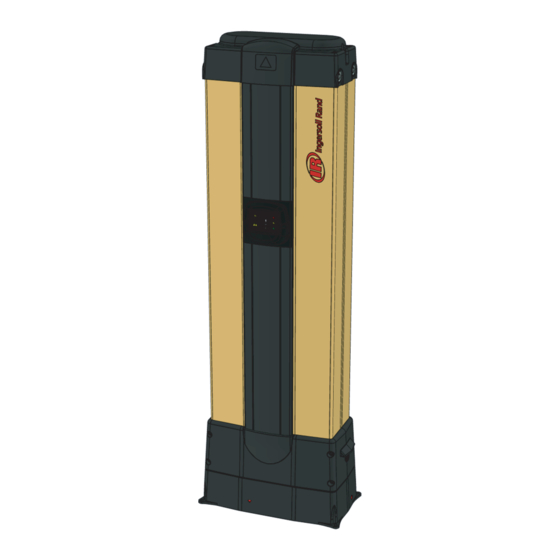

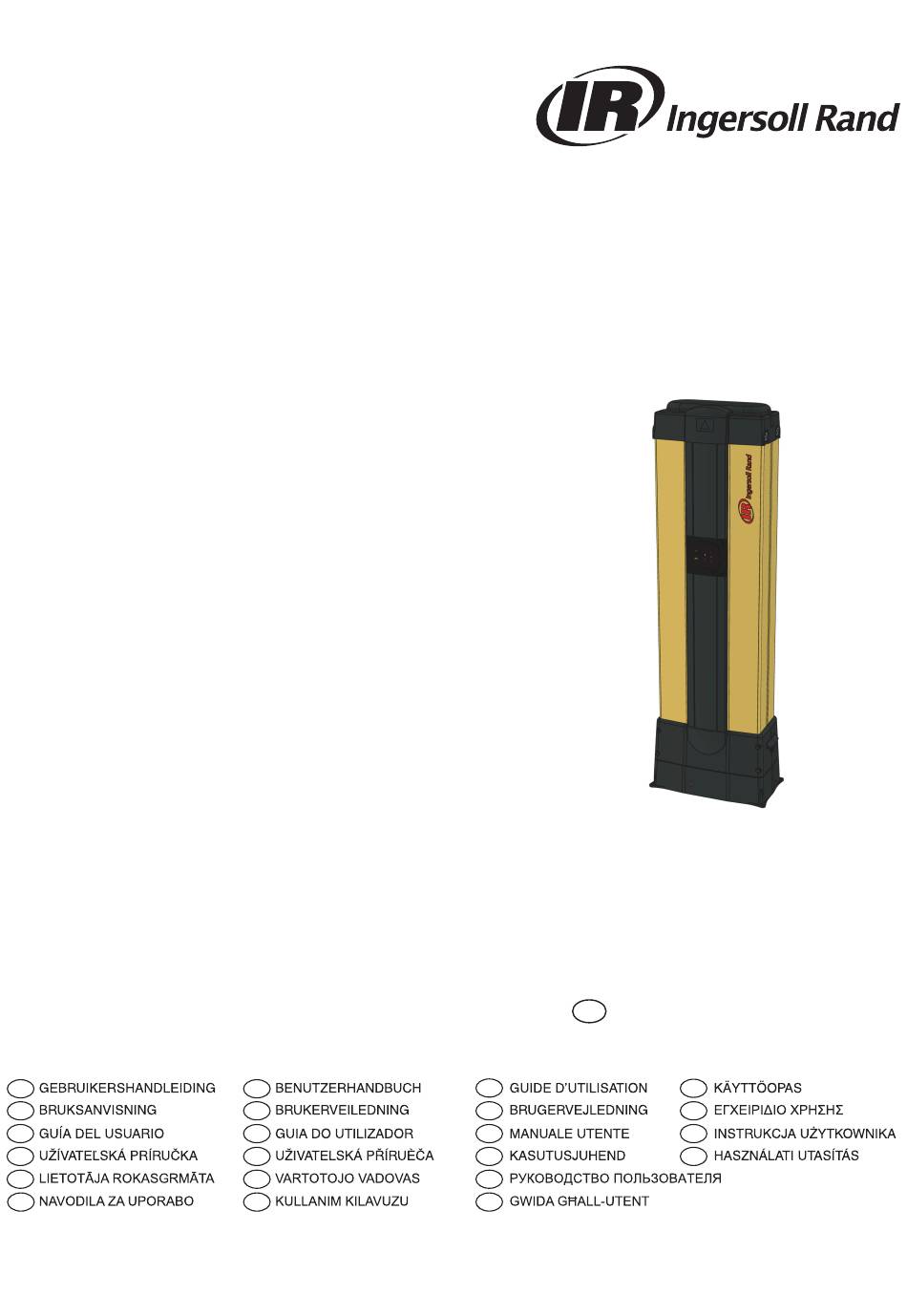

- Page 1 Desiccant Air Dryer D5IM - D34IM USER GUIDE (Original Language)
-
Page 2: Safety Information
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Ingersoll Rand the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 3: Technical Specification
D5IM - D34IM 2 Description Ingersoll Rand desiccant dryers are designed to remove moisture vapour from compressed air. Providing pressure dewpoints of -40°C (-40°F) at specified conditions. ISO8573.1 : 2001 Edition Dewpoint Selected Product Installed ISO Classification C Pressure Dewpoint GP Filter + Dryer ISO8573.1 : 2001 Class 3.2.2... - Page 4 The purge air flow is factory set for 6 bar g (87 psi g) minimum system pressure. Should the minimum supply pressure be lower than this figure the purge air flow must be reset in order to maintain the specified dewpoint. Please contact your local Ingersoll Rand office for assistance.
-
Page 5: Unpacking The Equipment
D5IM - D34IM 2.2 Unpacking the equipment Remove the equipment from its packaging as shown in A2 in Annex A of this user guide and check that it has not been damaged in transit, if so please contact your shipping company 2.3 Overview of the equipment... -
Page 6: Installation And Commissioning
Safety Information 3 Installation & Commissioning Only competent personnel trained, qualified, and approved by Ingersoll Rand should perform installation, commissioning and service procedures. 3.1 Recommended system layout The dryer should be installed with the correct pre-filtration and condensate management equipment to meet both the specification and local environmental requirements. -
Page 7: Electrical Installation
D5IM - D34IM 3.4 Electrical Installation A fully qualified electrical engineer must undertake all electrical work in accordance with local regulations. The equipment should be connected to the electrical supply through a switch or circuit breaker. This device should be clearly and indelibly marked as the disconnecting device for the equipment and located in close proximity to the equipment and be easily accessible to the operator. -
Page 8: Operating The Equipment
4 Correct operation 4.2 Starting the equipment Start-up should be undertaken by an Ingersoll Rand trained, qualified and approved service engineer. Ensure that the isolation valves on the inlet and the outlet of the dryer are closed. Connect the electrical supply to the dryer and verify that the Power On indicator is illuminated. -
Page 9: Service Intervals
D5IM - D34IM 5 Servicing The recommended service procedures identified in table 5.2 and all other repair and calibration work should be undertaken by a Ingersoll Rand trained, qualified and approved engineer. 5.1 Cleaning Clean the equipment with a damp cloth only and avoid excessive moisture around any electrical sockets. If required you may use a mild detergent, however do not use abrasives or solvents as they may damage the warning labels on the equipment. -
Page 10: Service Kits
Quantity Kit: Silencer element 38455879 Refer to Filter user guide 171130610 Kit: Exhaust Valve 50Hz 38455887 Kit: Exhaust Valve 60Hz 38455895 D5IM 38455903 D14IM 38455911 D25IM 38455929 D34IM 38455937 For servicing diagram please refer to A5 in Annex A. 5.4 Service Record... -
Page 11: Troubleshooting
In the unlikely event that a problem occurs on the equipment, this troubleshooting guide can be used to identify the probable cause and remedy. Troubleshooting should only be attempted by competent personnel. All major repair, and calibration work should be undertaken by a Ingersoll Rand trained, qualified and approved engineer. Problem... - Page 12 Safety Information Annex A D5IM - D34IM Weight Model (inches) (Ibs) D5IM (16.6) (24.2) D14IM (24.2) (35.3) D25IM (35.7) (50.7) 1098 D34IM (43.2) (61.7)
- Page 13 D5IM - D34IM...
- Page 14 Safety Information...
- Page 15 D5IM - D34IM...
- Page 16 Ingersoll Rand Company Ltd Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Desiccant Air Dryer Desiccant Air Dryer D5IM, D14IM, D25IM, D34IM D5IM, D14IM, D25IM, D34IM Directives 97/23/EC, 2006/42/EC, 73/23/EEC, 89/336/EEC Directives...
- Page 17 Generelt i overensstemmelse med ASMEVIII div. 1: De forma geral em concordância com 2004. ASMEVIII Div 1 : 2004. Forløb for PED-bedømmelse: Artikel 3.3 D5IM, D14IM Percurso de Avaliação do PED: Artigo 3.3 D5IM, D14IM Modul A D25IM, D34IM Módulo A D25IM, D34IM Autoriseret repræsentant...
- Page 18 Ingersoll Rand Company Ltd Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Desiccant Air Dryer Desiccant Air Dryer D5IM, D14IM, D25IM, D34IM D5IM, D14IM, D25IM, D34IM Dyrektywy 97/23/EC, 2006/42/EC, 73/23/EEC, Direktiivid 97/23/EC, 2006/42/EC, 73/23/EEC, 89/336/EEC...
- Page 19 EN 61000-6-3 : 2001, EN 61000-6-4 : EN 61010-1 : 2001 2001, eneralment f’konformità ma’ ASMEVIII Div 1 : EN 61010-1 : 2001 2004. Rotta ta’ l-Assessjar tal-PED: Artikolu 3.3 D5IM, D14IM ASMEVIII, 1: 2004. Modulu A D25IM, D34IM 3.3 D5IM, D14IM PED:...
- Page 20 Any such warranty or other items or conditions of products shall be in accordance with Ingersoll Rand Standard Terms and Conditions of Sale for such products, which are available upon request.
