Desiccant Air Dryer
USER GUIDE
EN
FR
DA
IT
ET
RU
MT
D41IM - D299IM
(Original Language)
FI
EL
PL
HU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D41IM and is the answer not in the manual?

Questions and answers

Summary of Contents for Ingersoll-Rand D41IM

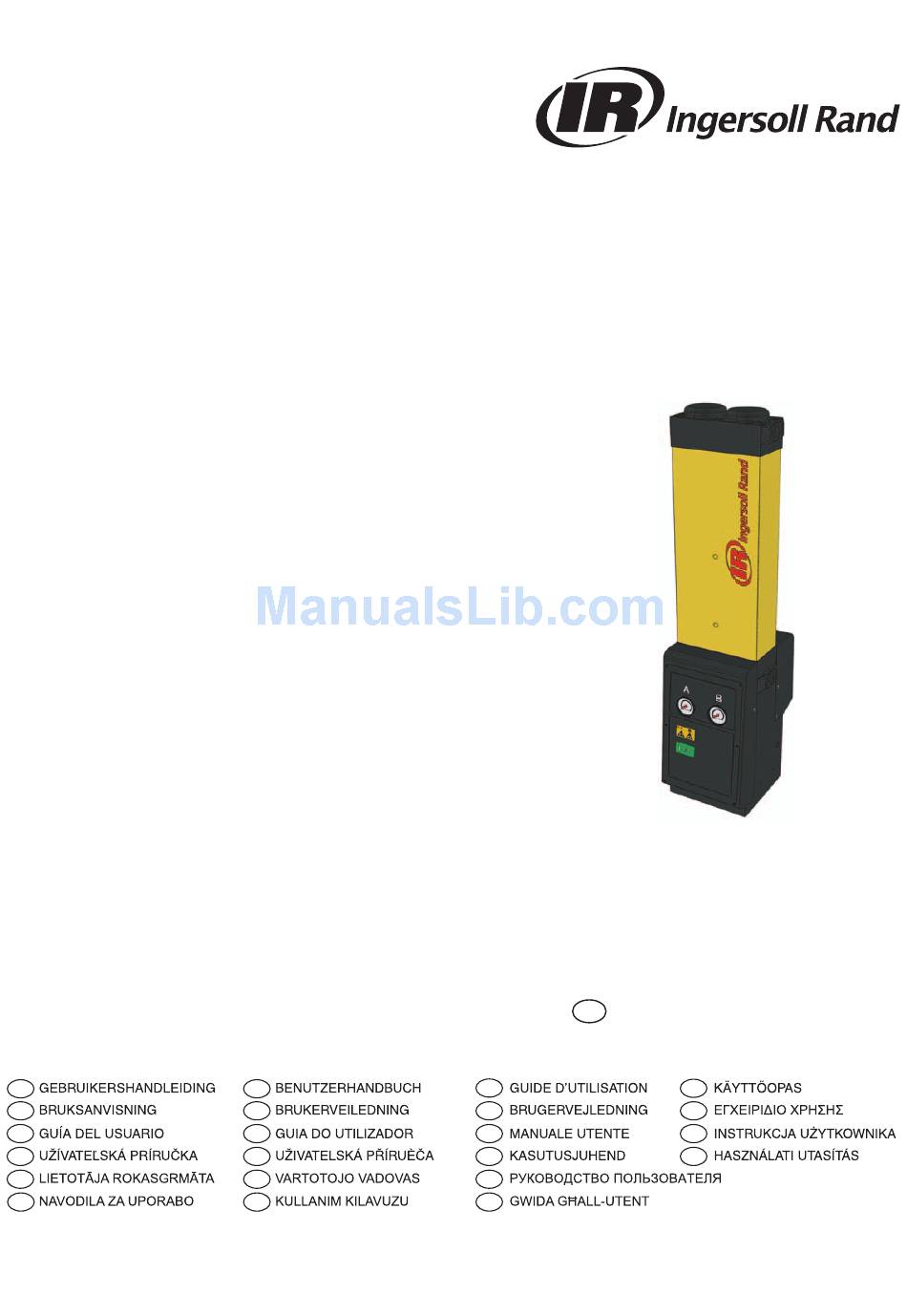

  • Page 1 Desiccant Air Dryer D41IM - D299IM USER GUIDE (Original Language)
  • Page 2: Safety Information

    1 Safety Information Important: Do not operate this equipment until the safety information and instructions in this user guide have been read and understood by all personnel concerned. Only competent personnel trained, qualified, and approved by Ingersoll Rand should perform installation, commissioning, service and repair procedures.
  • Page 3: Technical Specification

    Stated flows are for operation at 7 bar g (102 psi g) with reference to 20ºC (68ºF), 1 bar (a) (14.5 psi), 0% relative humidity. For flows at other conditions, apply the correction factors shown.. Model Pipe Size /min D41IM 1/2” 0.68 40.8 D54IM 1/2”...
  • Page 4 Description 4 bar g Minimum Operating Pressure 58 psi g 16 bar g Maximum Operating Pressure D41IM - D150IM 232 psi g 13 bar g Maximum Operating Pressure D180IM - D299IM 190 psi g Minimum Operating Temperature Maximum Inlet Air Temperature...
  • Page 5: Unpacking The Equipment

    Description 2.2 Unpacking the equipment Remove the equipment from its packaging as shown in A2 in Annex A of this user guide and check that it has not been damaged in transit, if so please contact your shipping company. The following items have been included with your equipment: Description Dryer HE Filter...
  • Page 6: Installation And Commissioning

    Installation & Commissioning 3 Installation & Commissioning Only competent personnel trained, qualified, and approved by Ingersoll Rand should perform installation, commissioning and service procedures. 3.1 Recommended system layout The dryer should be installed with the correct pre-filtration and condensate management equipment to meet both the specification and local environmental requirements.
  • Page 7: Electrical Installation

    Installation & Commissioning 3.4 Electrical Installation A fully qualified electrical engineer must undertake all electrical work in accordance with local regulations. Attach the cordset provided to the fused electrical power supply inlet on the equipment and connect to the electrical supply. If a cordset, other than the one provided with the equipment, is used to connect the equipment to the electrical supply ensure that it is suitably rated for the application and in accordance with local and national...
  • Page 8: Operating The Equipment

    Operating the equipment 4 Operating the equipment 4.1 Overview of Controls The facia of the dryer consists of indicators only as follows: Power “ON” Indicator ECO (EMS) Indicator Column A pressure Gauge Column B pressure Gauge 4.2 Starting the equipment Start-up should be undertaken by a Ingersoll Rand trained, qualified and approved service engineer.
  • Page 9: Service Intervals

    Servicing 5 Servicing The recommended service procedures identified in table 5.2 and all other repair and calibration work should be undertaken by a Ingersoll Rand trained, qualified and approved engineer. 5.1 Cleaning Clean the equipment with a damp cloth only and avoid excessive moisture around any electrical sockets. If required you may use a mild detergent, however do not use abrasives or solvents as they may damage the warning labels on the equipment.
  • Page 10: Service Kits

    Servicing 5.3 Service Kits Service Kit Description Kit No. Quantity Kit: Exhaust Silencer Single D41IM - D110IM 38455671 Kit: Exhaust Silencer Double D150IM - D299IM 38455689 Refer to Filter user guide 171130610 Kit: Hygrometer Service 38455697 Kit: Valve Overhaul D41IM - D110IM...
  • Page 11: Service Record

    Servicing 5.4 Service Record Date of Commissioning Service Serviced By Date Comments / Observations (Hours) Print Sign 4,000 8,000 16,000 20,000 24,000 28,000 32,000 36,000 40,000...
  • Page 12: Troubleshooting

    Troubleshooting 6 Troubleshooting In the unlikely event that a problem occurs on the equipment, this troubleshooting guide can be used to identify the probable cause and remedy. Troubleshooting should only be attempted by competent personnel. All major repair, and calibration work should be undertaken by a Ingersoll Rand trained, qualified and approved engineer.
  • Page 13: High Pressure Drop

    Troubleshooting 6.2 High Pressure drop A high pressure drop will result in low pressure gauge readings or intermittent operation of the downstream equipment. Possible Cause Action Required If the element and float drain have been installed longer than 12 months ensure that they are both changed. Filtration has not been correctly maintained.
  • Page 14 Troubleshooting Annex A D41IM - D110IM D150IM - D299IM Weight Model (inches) (inches) (inches) (inches) (inches) (Ibs) D41IM (32.9) (11.9) (11.2) (31.26) (13.86) (75) 1003 D54IM (39.5) (11.9) (11.2) (37.8) (13.86) (86) 1168 1125 D71IM (46.0) (11.9) (11.2) (44.29) (13.86)
  • Page 15 Troubleshooting D41IM - D110IM D150IM - D299IM...
  • Page 16 Troubleshooting...
  • Page 17 Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Desiccant Air Dryer Desiccant Air Dryer D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM Directives 97/23/EC, 2006/42/EC, 73/23/EEC, 89/336/EEC...
  • Page 18 Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Desiccant Air Dryer Desiccant Air Dryer D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM Direktiver 97/23/EC, 2006/42/EC, 73/23/EEC,...
  • Page 19 Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Desiccant Air Dryer Desiccant Air Dryer D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM Dyrektywy 97/23/EC, 2006/42/EC, 73/23/EEC,...
  • Page 20 Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Swan Lanne, Hindley Green, WIGAN, WN2 4EZ UK Desiccant Air Dryer Desiccant Air Dryer D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM D41IM, D54IM, D71IM, D90IM, D110IM, D150IM, D180IM, D221IM, D299IM Direktyvos 97/23/EC, 2006/42/EC, 73/23/EEC,...
  • Page 21 Any such warranty or other items or conditions of products shall be in accordance with Ingersoll-Rand Standard Terms and Conditions of Sale for such products, which are available upon request.
