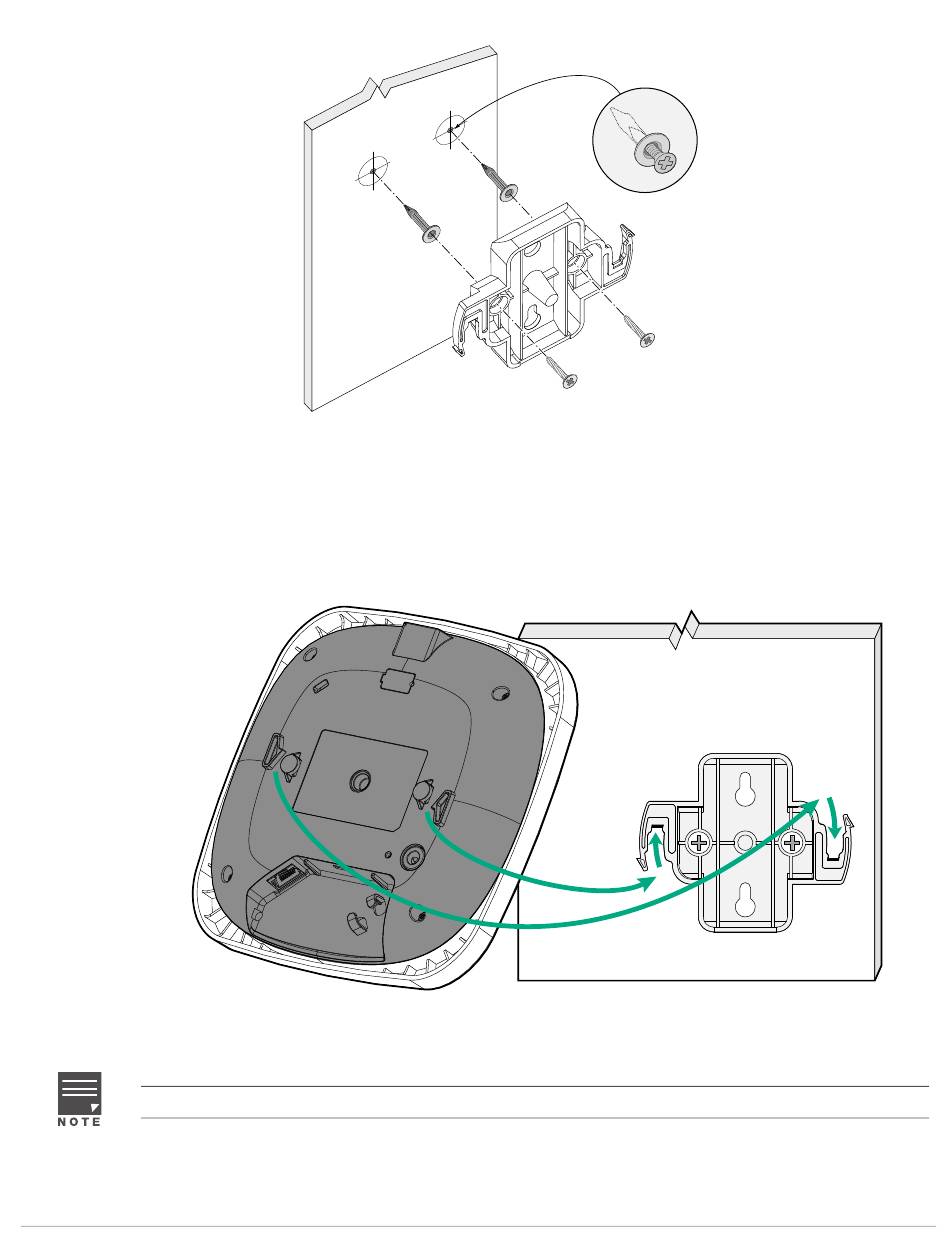

Figure 9
2. Attach the AP to the secured mount bracket as shown in
a. Align the AP with the mount bracket, placing the AP so that it's mounting tabs are at an angle of
approximately 30 degrees to the mount bracket.
3. Pushing towards the solid surface, rotate the AP clockwise until it clicks into place (see
Figure 10
AP-to-Bracket Option
This mounting option works only with a wall.
1. Place the mount bracket against the back of the AP with the bracket at an angle of approximately 30 degrees
to the tab (see
8
Attaching the Mount Bracket to a Solid Surface
Attaching the AP to the Mount Bracket
Figure 11).
Figure 10.
Aruba Instant On AP12 Access Point
Figure 10).
