Aruba Instant On AP12 Installation Manual page 6

Figure 5
4. Hold the access point next to the ceiling tile rail with the mounting slots at approximately a 30-degree angle
to the ceiling tile rail (see
5. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the
ceiling tile rail.
Figure 6
6

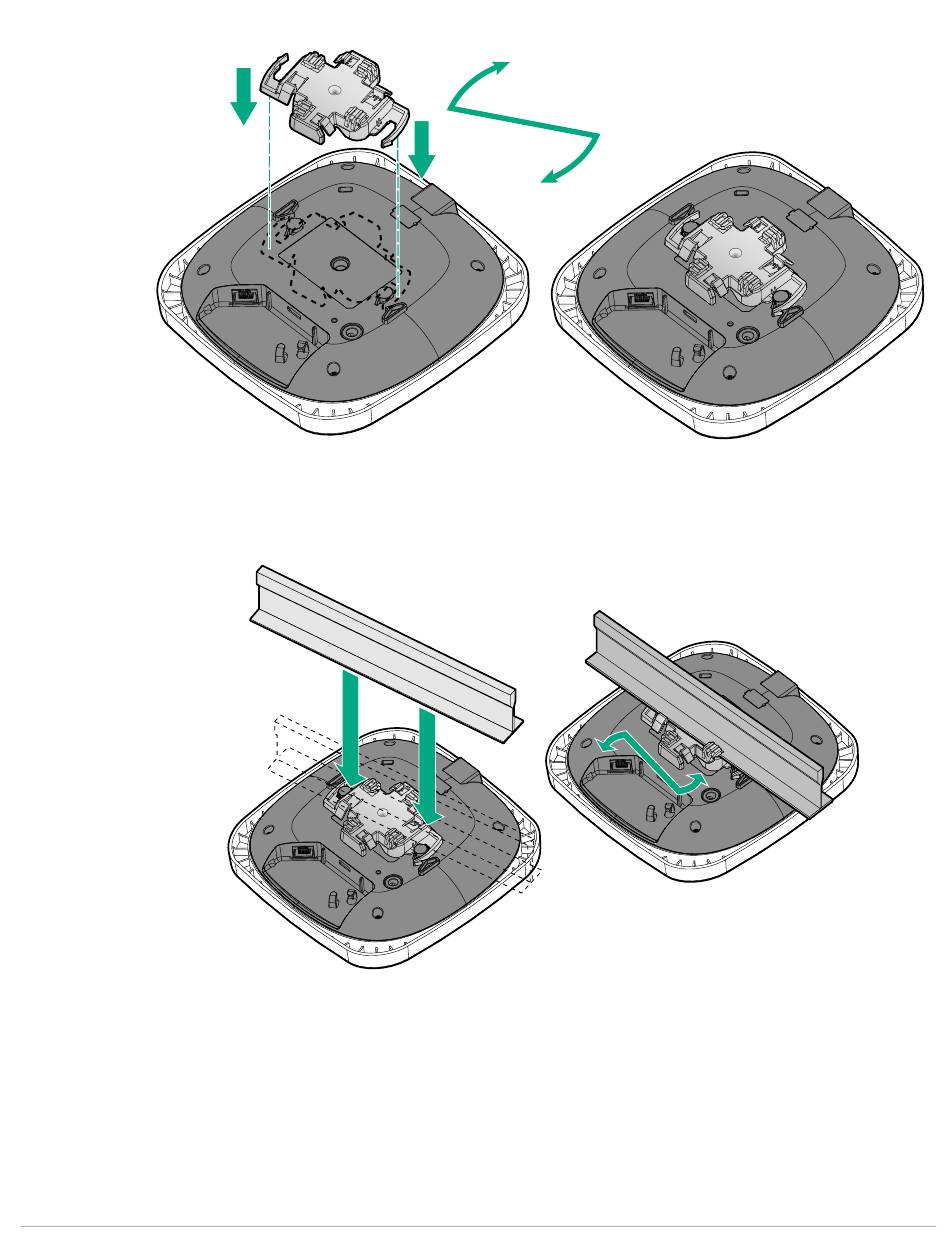

Attaching the Ceiling Rail Adapter to the AP
Figure 6
Mounting the AP to a 15/16" Ceiling Rail
and Figure 7). Make sure that any cable slack is above the ceiling tile.
Aruba Instant On AP12 Access Point | Installation Guide
