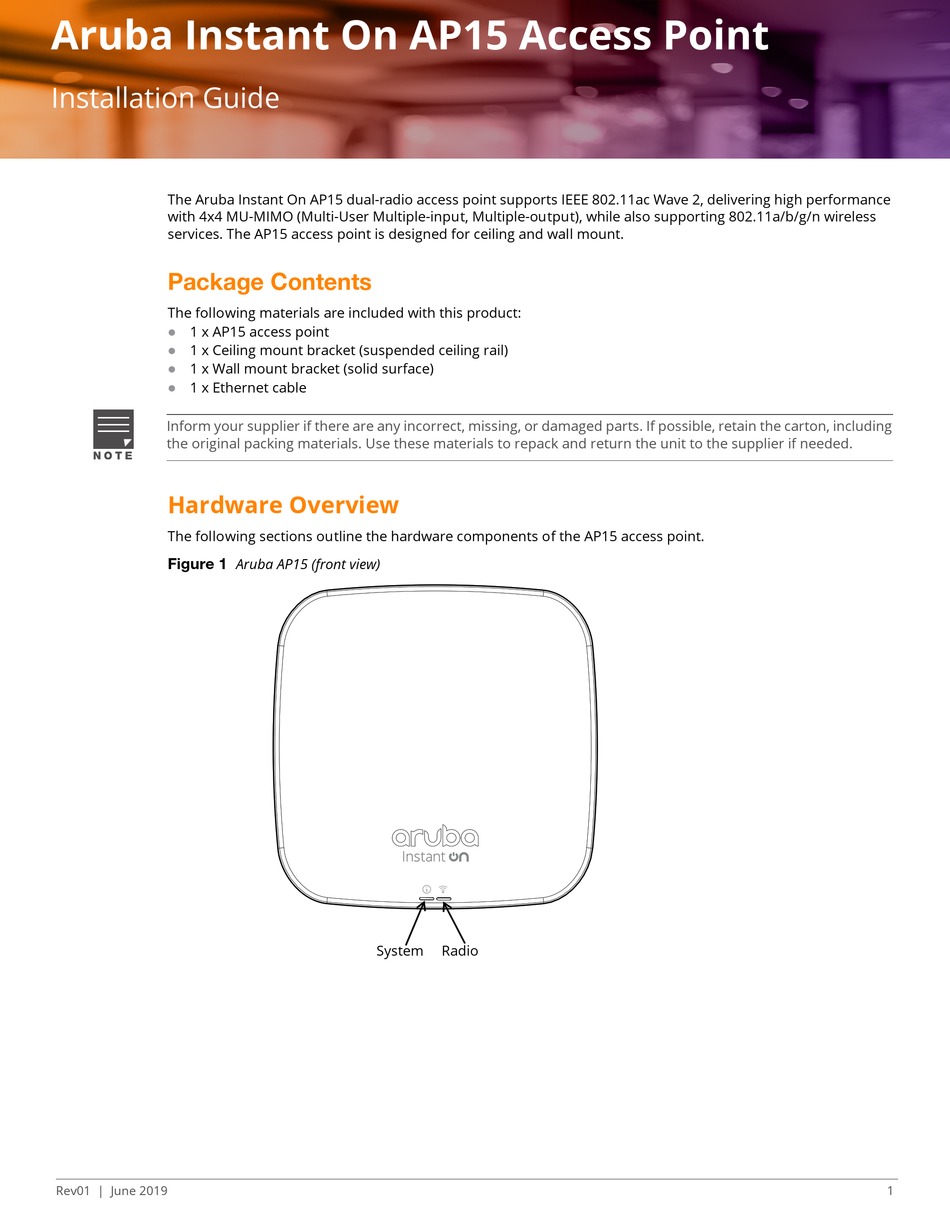

Aruba Instant On AP15 Access Point
Installation Guide
The Aruba Instant On AP15 dual-radio access point supports IEEE 802.11ac Wave 2, delivering high performance
with 4x4 MU-MIMO (Multi-User Multiple-input, Multiple-output), while also supporting 802.11a/b/g/n wireless
services. The AP15 access point is designed for ceiling and wall mount.

Package Contents

The following materials are included with this product:
1 x AP15 access point
1 x Ceiling mount bracket (suspended ceiling rail)
1 x Wall mount bracket (solid surface)
1 x Ethernet cable
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.

Hardware Overview

The following sections outline the hardware components of the AP15 access point.
Figure 1
Rev01 | June 2019

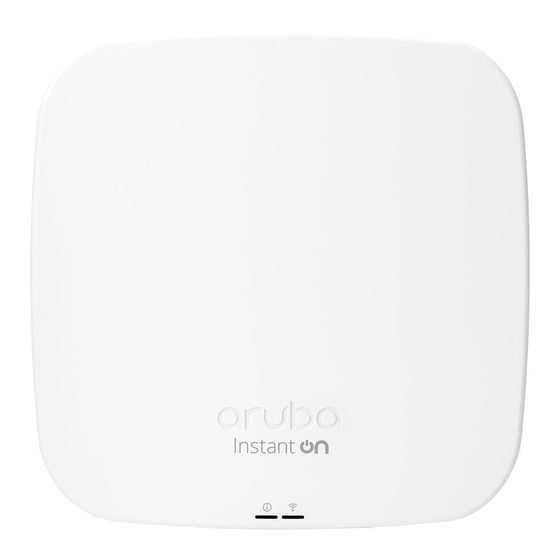

Aruba AP15 (front view)
System
Radio
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Instant On AP15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aruba Instant On AP15

  • Page 1: Package Contents

    Aruba Instant On AP15 Access Point Installation Guide The Aruba Instant On AP15 dual-radio access point supports IEEE 802.11ac Wave 2, delivering high performance with 4x4 MU-MIMO (Multi-User Multiple-input, Multiple-output), while also supporting 802.11a/b/g/n wireless services. The AP15 access point is designed for ceiling and wall mount.
  • Page 2: Kensington Lock Slot

    Power over Ethernet (PoE) from IEEE 802.3af and 802.3at compliant power sources. This device accepts 56V DC (802.3at), or 48V DC (802.3af) nominal as a standard powered device (PD) Aruba Instant On AP15 Access Point | Installation Guide...
  • Page 3: Reset Button

    Power If PoE is not available, a proprietary Aruba 12V/30W power adapter can be used to power the AP15 access point. Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this device, as long as it...
  • Page 4: Access Point Installation

    2. Place the mount bracket against the back of the access point with the mount bracket at an angle of approximately 30 degrees to the tabs (see Figure 3. Twist the mount bracket clockwise until it snaps into place in the tabs (see Figure Aruba Instant On AP15 Access Point | Installation Guide...
  • Page 5 5. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the ceiling tile rail. Mounting the AP to a 15/16” Ceiling Rail Figure 5 | Installation Guide Aruba Instant On AP15 Access Point...
  • Page 6 Align the screw holes in the mount bracket with the previously installed anchors or demarcated screw points. c. Insert the screws to secure the mount bracket. Screws are not included in the package. Attaching the Bracket to a Wall Figure 7 Aruba Instant On AP15 Access Point | Installation Guide...
  • Page 7 30 degrees to the mount bracket. Pushing towards the solid surface, rotate the AP clockwise until it clicks into place (see Figure 10). Attaching the AP to the Mount Bracket Figure 9 | Installation Guide Aruba Instant On AP15 Access Point...
  • Page 8: Verifying Post-Installation Connectivity

    Mobile Application Installation Search for “Aruba Instant On” app within the Apple App Store or Google Play to download and install the Aruba Instant On mobile app to your phone. Launch the app and follow the instructions to complete the setup. For more details, please refer to the User Guide.
  • Page 9: Electrical And Environmental Specifications

     If a power adapter other than the Aruba-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 12Vdc, minimum 2A, marked “LPS” and “Class 2”, and suitable for plugging into a standard power receptacle in the US and Canada.
  • Page 10: Federal Communication Commission

    équivalente (PIRE) ne dépasse pas les valeurs nécessaires à une communication efficace. Ce périphérique est conforme aux règlements RSS exempts de licence d’Industrie Canada. L’utilisation de ce Aruba Instant On AP15 Access Point | Installation Guide...
  • Page 11: European Union Regulatory Conformance

    If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally. Compliance is based on the use of Aruba approved accessories. | Installation Guide Aruba Instant On AP15 Access Point...
  • Page 12: Нормативные Требования Евразийского Экономического Союза

    ЖШС "Хьюлетт Паккард Энтерпрайз" Ресей Федерациясы, 125171, Мәскеу, Ленинград тас жолы, 16A блок 3, Телефон: +7 499 403 4248 Факс: +7 499 403 4677 «HEWLETT-PACKARD Bel» ЖШС, Беларусь Республикасы, 220030, Минск қ., Интернациональная көшесі, 36/ 1, Телефон/факс: +375 17 392 28 20 Aruba Instant On AP15 Access Point | Installation Guide...
  • Page 13 OF UKRAINE dated May 24, 2017, No. 355. The full text of the UA declaration of conformity is available at the following internet address: https://certificates.ext.hpe.com/public/certificates.html Hong Kong HK0011601492 Philippines Type-Approval No. ESD-1613371C Singapore DB100427 | Installation Guide Aruba Instant On AP15 Access Point...
  • Page 14: Contact Aruba

    Enterprise Company. To obtain such source code, send a check or money order in the amount of US $10.00 to: Hewlett Packard Enterprise Company Attn: General Counsel 6280 America Center Drive San Jose, CA 95002 Warranty This hardware product is protected by an Aruba warranty. For details, visit https://support.ArubaInstantOn.com. Aruba Instant On AP15 Access Point | Installation Guide...
