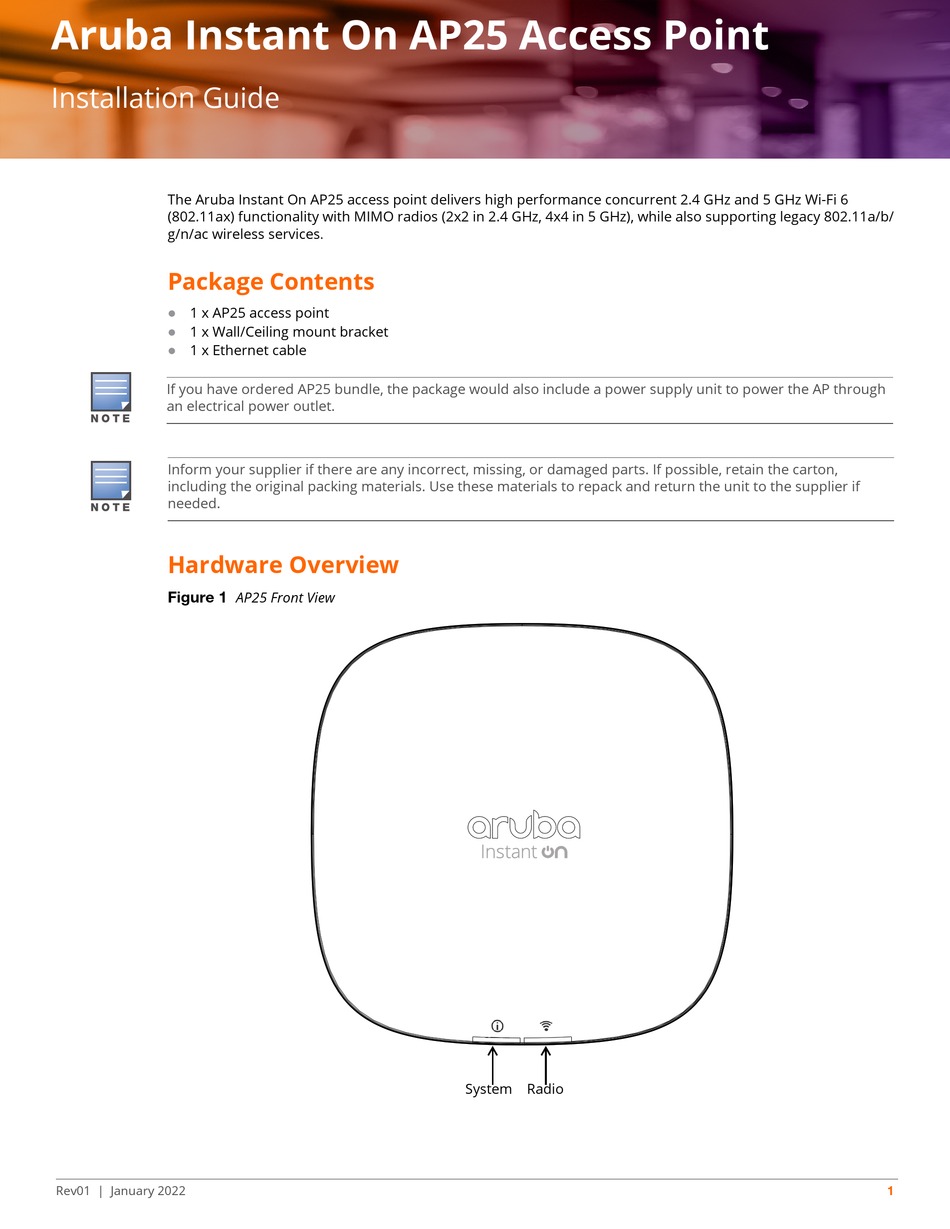

Aruba Instant On AP25 Installation Manual

Aruba Instant On AP25 Access Point
Installation Guide
The Aruba Instant On AP25 access point delivers high performance concurrent 2.4 GHz and 5 GHz Wi-Fi 6
(802.11ax) functionality with MIMO radios (2x2 in 2.4 GHz, 4x4 in 5 GHz), while also supporting legacy 802.11a/b/
g/n/ac wireless services
Package Contents
1 x AP25 access point

1 x Wall/Ceiling mount bracket

1 x Ethernet cable

If you have ordered AP25 bundle, the package would also include a power supply unit to power the AP through
an electrical power outlet.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Hardware Overview
Figure 1
Rev01 | January 2022
.
AP25 Front View
System Radio
