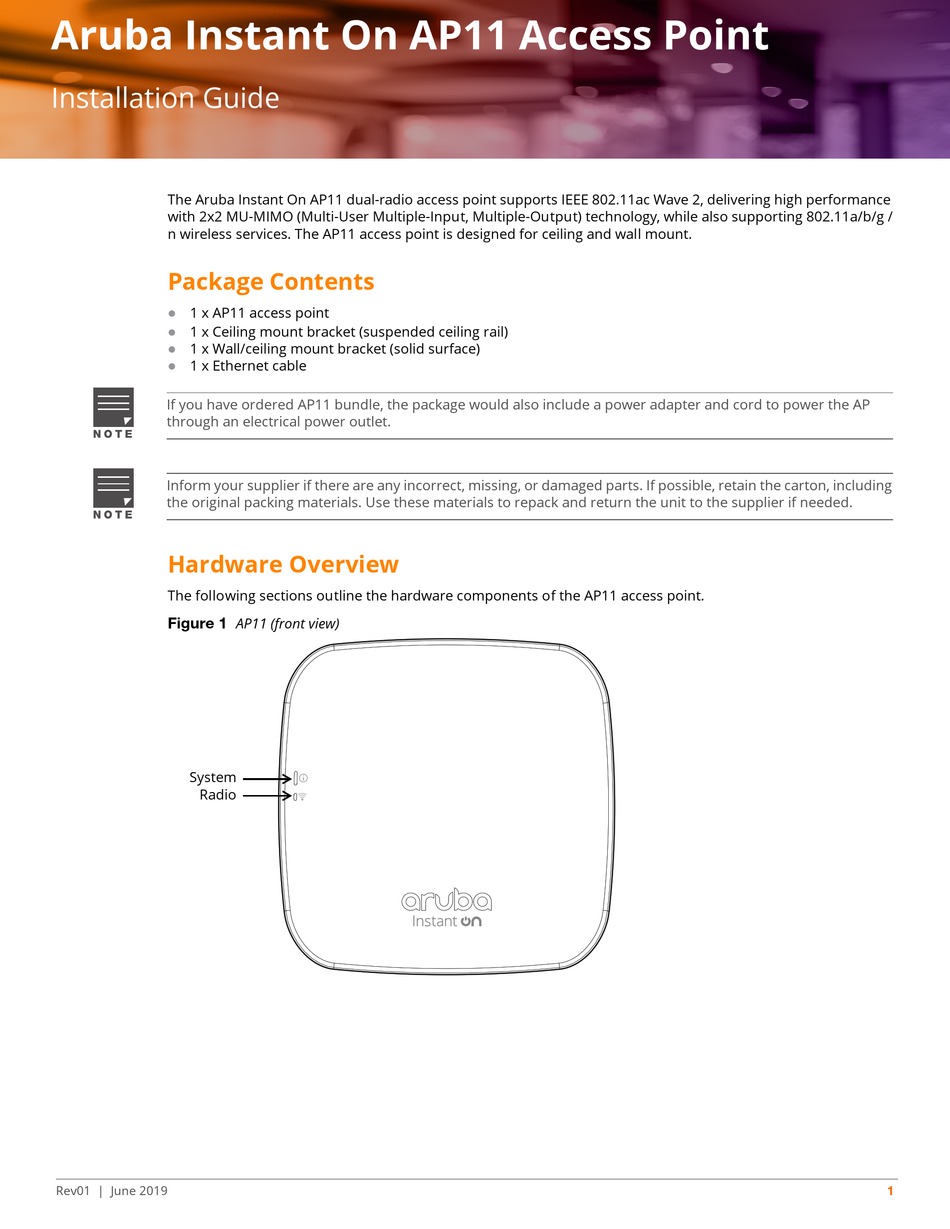

Aruba Instant On AP11 Access Point
Installation Guide
The Aruba Instant On AP11 dual-radio access point supports IEEE 802.11ac Wave 2, delivering high performance
with 2x2 MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g /
n wireless services. The AP11 access point is designed for ceiling and wall mount.
Package Contents
1 x AP11 access point

1 x Ceiling mount bracket (suspended ceiling rail)

1 x Wall/ceiling mount bracket (solid surface)

1 x Ethernet cable

If you have ordered AP11 bundle, the package would also include a power adapter and cord to power the AP
through an electrical power outlet.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the AP11 access point.
Figure 1
System
Radio
Rev01 | June 2019

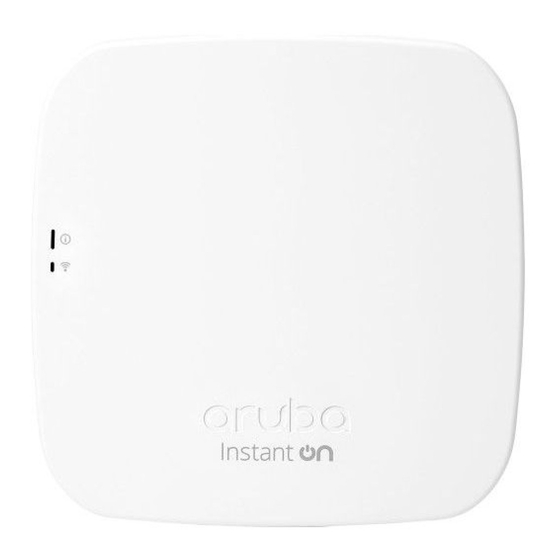

AP11 (front view)
1
