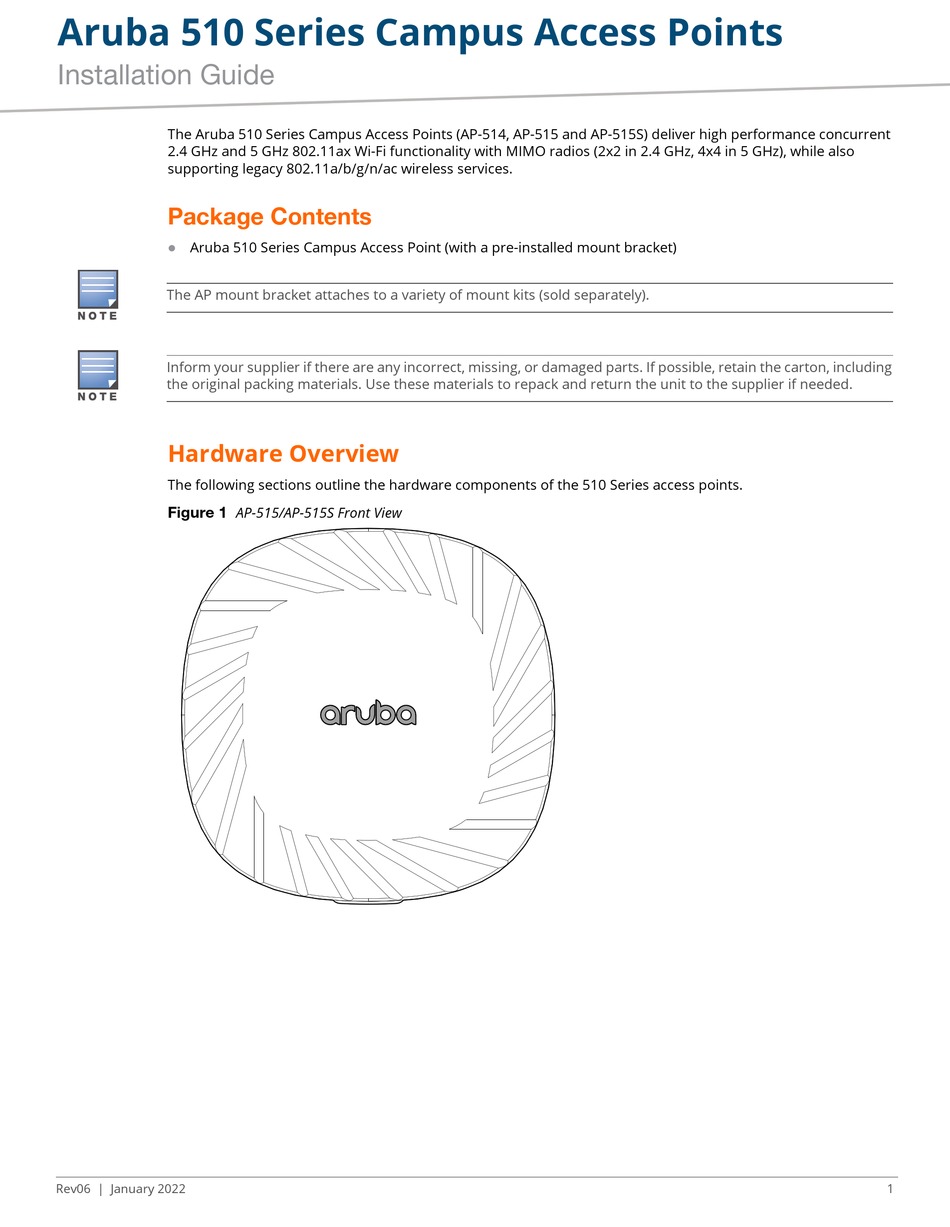

Aruba 510 Series Campus Access Points
Installation Guide
The Aruba 510 Series Campus Access Points (AP-514, AP-515 and AP-515S) deliver high performance concurrent
2.4 GHz and 5 GHz 802.11ax Wi-Fi functionality with MIMO radios (2x2 in 2.4 GHz, 4x4 in 5 GHz), while also
supporting legacy 802.11a/b/g/n/ac wireless services.
Package Contents
Aruba 510 Series Campus Access Point (with a pre-installed mount bracket)
The AP mount bracket attaches to a variety of mount kits (sold separately).
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the 510 Series access points.
Figure 1
Rev06 | January 2022
AP-515/AP-515S Front View
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aruba AP-515S
Summary of Contents for Aruba AP-515S
- Page 1 Aruba 510 Series Campus Access Points Installation Guide The Aruba 510 Series Campus Access Points (AP-514, AP-515 and AP-515S) deliver high performance concurrent 2.4 GHz and 5 GHz 802.11ax Wi-Fi functionality with MIMO radios (2x2 in 2.4 GHz, 4x4 in 5 GHz), while also supporting legacy 802.11a/b/g/n/ac wireless services.
- Page 2 1), are used for both radios and bands (RF signals are diplexed), while antenna ports A2 and A3 (corresponding with radio chains 2 and 3) are used for the 5 GHz radio only. Aruba 510 Series Campus Access Points | Installation Guide...
- Page 3 External antennas for this device must be installed by an Aruba Certified Mobility Professional (ACMP) or other Aruba-certified technician, using manufacturer-approved antennas only. The Equivalent Isotropically Radiated Power (EIRP) levels for all external antenna devices must not exceed the regulatory limit set by the host country/domain.
- Page 4 The cable guide on the rear of the access point is used to organize cables, as shown in Figure 5. The use of the cable guide is optional and does not support all types of cables and plugs. Aruba 510 Series Campus Access Points | Installation Guide...
- Page 5 IOT gateway applications The AP-515S access point does not have the BLE and Zigbee radio, but an Aruba AP-USB-ZB external USB based dongle can be used with the AP-515S to provide the BLE and Zigbee functionality. | Installation Guide...
- Page 6 3: TXD 4: GND 5: GND Ethernet Ports The Aruba 510 Series access points are equipped with two Ethernet ports (E0 and E1), shown in Figure E0 port: 100/1000/2500BaseT auto-sensing MDI/MDX wired RJ45 network connectivity port E1 port: 100/1000BaseT auto-sensing MDI/MDX wired RJ45 network connectivity port ...
-
Page 7: Before You Begin
FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). Pre-Installation Checklist Before installing your Aruba 510 Series access point, be sure that you have the following (not included with the AP): A mount kit compatible with the AP and mount surface ... -
Page 8: Access Point Installation
Aruba 510 Series access points are designed for ceiling or wall mounted deployments. Several optional mount kits are available to attach the Aruba 510 Series access point to a variety of surfaces. These mount kits are available as accessories and must be ordered separately. Refer to the online ordering guide at http:// www.arubanetworks.com/assets/og/OG_AP-510Series.pdf... -
Page 9: Verifying Post-Installation Connectivity
If a power adapter other than the Aruba-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 12V DC, minimum 0.75A, marked “LPS” and “Class 2,” and suitable for plugging into a standard power receptacle in the US and Canada. -
Page 10: Safety And Regulatory Compliance
être approuvés par Industrie Canada. Pour réduire les interférences radio potentielles, le type d’antenne et son gain doivent être choisis de façon à ce Aruba 510 Series Campus Access Points | Installation Guide... - Page 11 (link provided below) with the maximum permissible gain indicated. Antenna types not included in this list, having a greater gain than the maximum gain indicated for the type, are strictly prohibited for use with this device. Compliance is only assured if the Aruba approved accessories as listed in the ordering guide are used. http://www.arubanetworks.com/assets/og/OG_AP-510Series.pdf Wireless Channel Restrictions 5150-5350MHz band is limited to indoor only in the following countries;...
- Page 12 If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally. Compliance is based on the use of Aruba approved accessories. Refer to the ordering guide for this access point at http://www.arubanetworks.com/assets/og/OG_AP-510Series.pdf.
- Page 13 El uso con este equipo de antenas no incluidas en esta lista o que tengan una ganancia mayor que 8.5 dBi quedan prohibidas. La impedancia requerida de la antena es de 50 ohms. Morocco Oman AP-514 AP-515 | Installation Guide Aruba 510 Series Campus Access Points...
- Page 14 1, Телефон/факс: +375 17 392 28 20 ЖШС «Хьюлетт-Паккард (К)», Қазақстан Республикасы, 050040, Алматы к., Бостандык ауданы, Әл-Фараби даңғ ылы, 77/7, Телефон/факс: +7 (727) 355 35 50 Taiwan 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功 能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使 用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。 Aruba 510 Series Campus Access Points | Installation Guide...
-
Page 15: Contact Aruba
To obtain such source code, send a check or money order in the amount of US $10.00 to: Hewlett Packard Enterprise Company Attn: General Counsel 6280 America Center Drive San Jose, CA 94089 Warranty This hardware product is protected by an Aruba warranty. For more details, visit www.hpe.com/us/en/support.html | Installation Guide Aruba 510 Series Campus Access Points...
