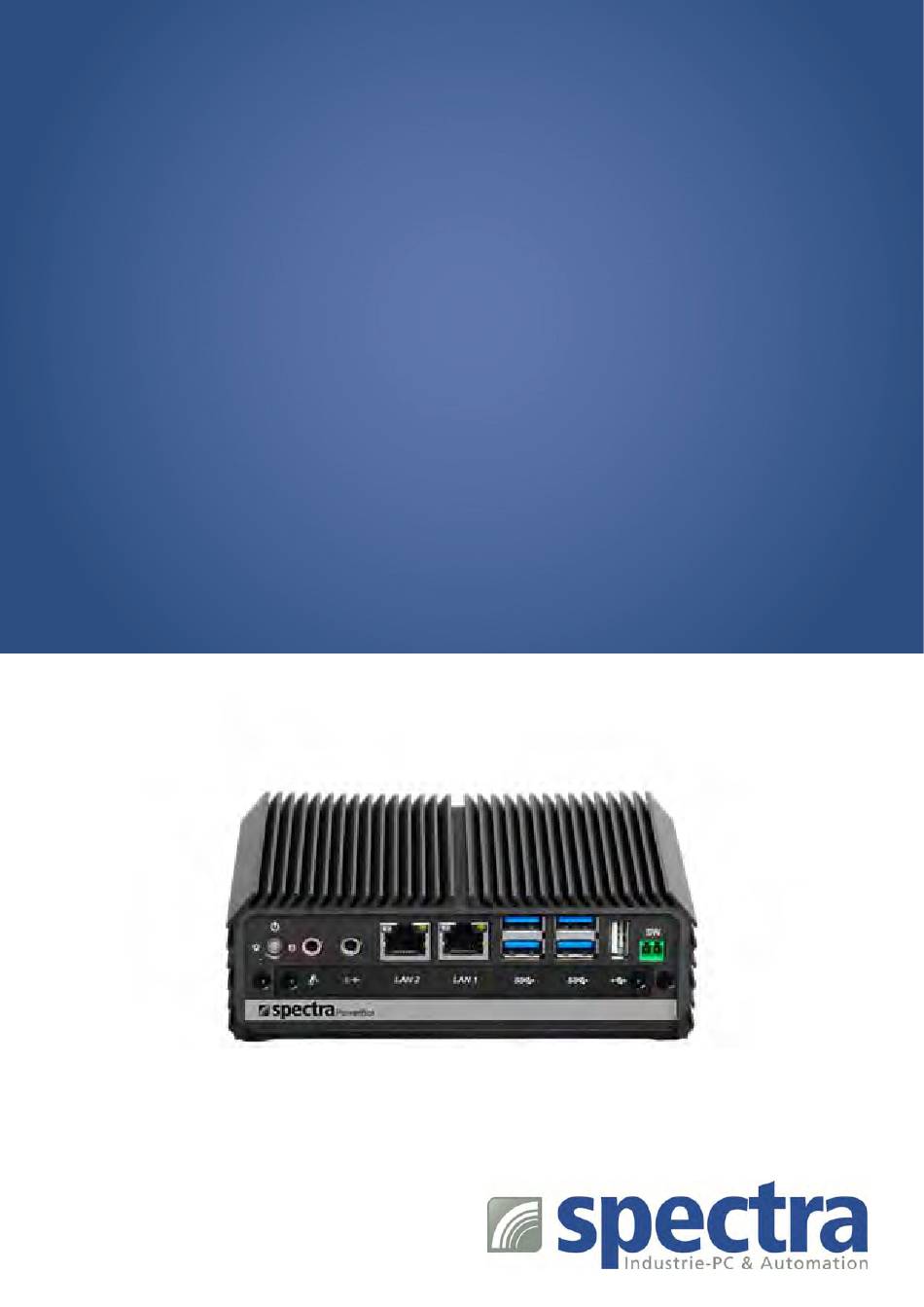

SPECTRA POWERBOX 110‐
SERIES
USER MANUAL
Version 1.1 – April 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powerbox 110 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Spectra Powerbox 110 Series

Summary of Contents for Spectra Powerbox 110 Series

  • Page 1 SPECTRA POWERBOX 110‐ SERIES USER MANUAL Version 1.1 – April 2019...

  • Page 2: Table Of Contents

    3.5 Installing a SATA Hard Drive…………………………………………… 33 3.6 Installing a Half-Slim SSD…………………………………………… 3.7 Installing a SODIMM……….……………………..….……………..35 3.8 Installing the Chassis ………….…………..………..….……………..36 3.9 Installing the Chassis Bottom Cover …..…………..….……………... 37 3.10 Installing a SIM Card ………………………………..…………………. 38 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 3 Installing a CMI-DP Module ..………………..……………………….. 77 Installing a CMI-DVI Module .………………..……………………….. 78 Installing a CMI-VGA Module .………………..……………………… 79 Installing a CMI-HDMI Module .……………..……………………….. 80 Installing a CMI-LPPS Module .……………..……………………….. 81 Installing a CFM-PoE Control Module .……..……………………….. 82 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 4: Revision

    2019/04/09 Copyright Notice © 2019 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Spectra GmbH &...

  • Page 5: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in a Spectra RMA Request Form and obtain a RMA number from us. Please go to www.spectra.de/RMA...

  • Page 6: Technical Support And Assistance

    This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment. This indication provides additional information to complete a task easily. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 7: Safety Precaution

     The equipment has been dropped and damaged.  The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 8: Package Content

    Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Spectra PowerBox 110 Affordable Fanless Embedded Computer Utility DVD Driver Thermal Pad (for CPU Thermal Block) DVI-I to VGA Adapter Power Terminal Block Connector...

  • Page 9: Optional Modules & Accessories

    Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30 ° C ~ +70 ° C), 155057 level VI EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G X10018 Black 1.8M SL-6+SL-3 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 10: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 11: Overview

    1.1 Overview Spectra PowerBox 110 affordable fanless embedded computer is based on the Intel® Pentium® N4200 / Celeron® N3350 processor. This mainstream Intel® SoC (Apollo Lake) integrates the Intel® Gen 9 graphics architecture with triple display support in 4K/2K UHD resolution. Spectra PowerBox 110 supports...

  • Page 12: Product Pictures

    • 1 x 2.5’’ SATA Drive Bay, 1x mSATA Socket • 2 x Full Size Mini-PCIe Socket, 1 x SIM Card Socket • Ultra Compact Size (150x 105 x 52.3mm) • Wide Operating Temperature -40°C to 70°C • Safety: LVD EN60950-1 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 13: Hardware Specification

    • 1x Combined Multiple I/O (CMI) Interface • 1x SIM Socket • 2x Antenna Holes Other Functions • Watchdog Timer: Software Programmable Supports 256 Levels System Reset • Supports Instant Reboot Technology (0.2 sec) Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 14: System I/O

    Used to clear CMOS to reset BIOS LAN Port 1 & 2 AT/ATX Mode Select Switch Used to connect the system to a local area network Used to select AT or ATX power mode Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 15 COM / DIO / DisplayPort / DVI / LPT & PS2 / VGA / HDMI. Do not change the CMI module by yourself, it may cause damage to your Spectra PowerBox 110. Please contact with your regional dealer for more information about it.

  • Page 16: Mechanical Dimension

    1.7 Mechanical Dimensions Each of Spectra PowerBox 110 computers has the same mechanical dimension. Unit: mm Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 17: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...

  • Page 18: Jumper Settings

    2.1 Jumpers Settings Spectra PowerBox 110 is featured with jumper-free design 2.2 Location of the Switches and Connectors 2.2.1 Top View Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 19: Bottom View

    2.2.2 Bottom View Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 20: Switch And Connector Definition

    RS232 / RS422 / RS485 Connectors SODIMM1 SODIMM DDR3L Socket POE_PH1 POE Board to Board Connector BTB_FH1 CMI Module Board to Board Connector SATA1 SATA with Power Connector POWER1 Power Connector with +5V/ +12V Power Output Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 21: Definition Of Switches

    Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear CMOS LED1: Power / HDD Access LED Status LED Status LED Color POWER Green Yellow RESET1 : Reset Button Switch Definition Push Reset System Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 22: Definition Of Connectors

    MINIPCIE1： Mini PCI-Express Socket (Support 4G Module) Definition Definition WAKE# 3.3V +1.5V SMB_CLK PETN0/USB3TN0 1.5V SMB_DATA PETP0/USB3TP0 SIM_VCC SIM_DATA USB_D- REFCLK- RESERVED SIM_CLK USB_D+ REFCLK+ RESERVED SIM_Reset 3.3V SIM_VPP 3.3V PERST# PERN0/USB3RN0 3.3V PERP0/USB3RP0 +3.3V Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 23 MINIPCIE2 : Mini PCI-Express Socket (Support mSATA) Definition Definition WAKE# 3.3V +1.5V SMB_CLK PETN0/SATATN0 1.5V SMB_DATA PETP0/SATATP0 USB_D- REFCLK- USB_D+ REFCLK+ 3.3V 3.3V 3.3V PERST# +1.5V PERN0/SATARP0 +3.3V PERP0/SATARN0 +3.3V Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 24 LAN1 / LAN2: LAN LED Status Definition Act LED Status Definition Link LED Status Definition Blinking Yellow Data Activity Steady Green 1Gbps Network Link No Activity Steady Orange 100Mbps Network Link 10Mbps Network Link Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 25 RS422 / 485 Full RS485 Half RS232 Definition Duplex Definition Duplex Definition 1                  5 DATA1- 6              9  DATA1+ 1                  5 6              9  POWER1 : Power Connector Connector Type: 1x4 4-pin Wafer, 2.0mm pitch Definition Pin 1 +12V Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 26: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 27: Removing The Chassis Bottom Cover

    1. Turn over the unit to have the bottom side face up, loosen the 4 screws of bottom cover and place them aside. 2. Remove the cover from the chassis. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 28: Removing The Chassis

    3.2 Removing the Chassis 1. Hold front and rear panel and lift up the body of unit vertically. 2. Turn over the body of the unit and place it gently. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 29: Installing The Antennas

    3.3 Installing the Antennas 1. Remove the antenna hole covers at back panel. 2. Have antenna jack penetrate through the hole. 3. Put on washer and fasten the nut with antenna jack. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 30 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 31: Installing A Full-Size Mini Pcie Card On Bottom Side

    1. Turn over the body of unit. Unscrew the 4 screws on HDD bracket and remove the bracket. 2. Locate the Mini PCIe slots. Please note that the right connector is shared mSATA/Mini-PCIe interface, and left connector (Support SIM Card to Link feature) is Mini-PCIe interface. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 32 4. Press down the module and use the two screws to fix the module. 5. If you have a Half-size Mini-PCIe card, make sure use extender to make it Full-size as shown below. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 33: Installing A Sata Hard Drive

    3 provided screws to assemble HDD and HDD bracket together. 3. Turn over the HDD bracket. Connect the HDD bracket to the SATA connector of the unit and fasten the 4 screws. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 34: Installing A Half-Slim Ssd

    1. Lift up the empty HDD bracket by unscrewing the 4 screws. 2. Fasten the 4 copper pillars. 3. Connect the Half Slim SSD to the SATA connector of the unit and fasten the 4 screws. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 35: Installing A Sodimm

    2. Tilt the SODIMM module at a 45 degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 3. Press the module down until it’s fixed firmly by the two locking latches on the sides. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 36: Installing The Chassis

    3.8 Installing the Chassis 1. Hold the body of unit, and make sure the both sides of front and rear panels are in the chassis grooves and insert the body of unit into chassis. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 37: Installing The Chassis Bottom Cover

    3.9 Installing the Chassis Bottom Cover 1. Level the grooves on the cover at front and rear panels. Put on the cover. 2. Fasten the 4 screws to fix the cover. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 38: Installing A Sim Card

    3.10 Installing a SIM Card 1. Loosen 2 screws on front panel to remove cover plate. 2. SIM card slot is at the front panel of the system. 3. Insert the SIM card. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 39: Wall Mount Brackets

    3.11 Wall Mount Brackets Spectra PowerBox 110 offers Wall Mount that customers can install system on the wall in convenient and economical way. 1. The mounting holes are at the bottom side of system. Use provided 4 screws to fasten the bracket with each side on system together.

  • Page 40: Side Mount Bracket

    3.12 Side Mount Bracket Spectra PowerBox 110 offers Side Mount that customer can install system to the right or left side of wall to create effectiveness of space. 1. Place the side mount bracket on the bottom of system as shown in the picture below, and fasten the rest of 4 screws to fix the side mount bracket with system together.
  • Page 41 2. Fasten the screws through the bracket mounting hole to mount system on the wall. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 42: Vesa Mount Bracket

    3.13 VESA Mount Bracket Spectra PowerBox 110 offers VESA Mount that customer can mount system with panel complying with VESA 75mm standard for various usage. 1. Provided below is the base of the system unit and screw holes specified to be mounted from VESA stand.
  • Page 43 3. Provided below is completion of mounting with VESA stand. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 44: Din-Rail Mount Bracket

    3.14 DIN-Rail Mount Bracket Spectra PowerBox 110 offers DIN-Rail Mount that customer can install system on the DIN Rail. 1. The mounting holes are at the bottom of system. Fasten the 2 screws to fix the DIN- Rail mount bracket with system together.

  • Page 45: Din-Rail Mount Clips (On Side Mount Bracket)

    3.15 DIN-Rail Mount Clips (on Side Mount Bracket) Spectra PowerBox 110 offers DIN-Rail Mount Clips and side mount bracket that customer can install system on the DIN Rail. Fasten 2 DIN rail mounting clips to the side mount bracket with provided 4 screws as illustrated.

  • Page 46: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 47: Bios Introduction

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 48: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. ■ System Date Set the date. Please use <Tab> to switch between date elements. ■ System Time Set the time. Please use <Tab> to switch between time elements. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 49: Advanced Setup

    4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 ACPI Settings Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 50: F81866 Super Io Configuration

    ■ Lock Legacy Resources [Enabled] Enables or disables Lock Legacy Resources. 4.3.2 F81866 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 51 ■ Watch Dog Mode [Sec] Allows to set watchdog timer unit <Sec> or <Min>. ■ Watch Dog Timer [0] Allows you to set watchdog timer’s value in the range of 0 to 255. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 52: Hardware Monitor

    4.3.3 Hardware Monitor This screen displays the current status of all monitored hardware devices/components such as voltages, temperatures. 4.3.4 S5 RTC Wake Settings Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 53: Serial Port Console Redirection

    [Dynamic Time]: Sets a increase minute(s) from current time to wake system from 4.3.5 Serial Port Console Redirection ■ Console Redirection [Disabled] Allow users to enable or disable COM1, COM2, COM3, COM4 console redirection function. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 54: Cpu Configuration

    Enables or disables Intel Virtualization Technology. Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 55: Network Stack Configuration

    4.3.7 Network Stack Configuration ■ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.8 CSM Configuration This option controls legacy/UEFI ROMs priority. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 56 [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. ■ Other PCI devices [Do not launch] Allows users to determine option ROM execution policy for devise other than network, storage, or video. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 57: Usb Configuration

    Enables or disables XHCI (USB3.0) hand-off function. Use this feature as a workaround for operating systems without XHCI hand-off support. ■ USB Mass Storage Driver Support [Enabled] Enables or disables USB mass storage driver support. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 58: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 North Bridge This section provides information on the installed memory size. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 59: South Bridge

    Allows you to change Mini PCIE2 as [Mini PCIE] or [mSATA]. ■ PSE Enable Selection [Enabled] Enables or disables PSE (Power Sourcing Equipment). ■ LAN1 [Enabled] Enables or disables LAN1 Controller. ■ LAN2 [Enabled] Enables or disables LAN2 Controller. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 60: South Cluster Configuration

    4.4.3 South Cluster Configuration ■ PCI Express Configuration Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 61 Configuration options: [Auto] [Gen1] [Gen2]. ■ SATA Devices SATA Port 0  Port 0 [Enabled] Enables or disables SATA Port 0. SATA Port 1  Port 1 [Enabled] Enables or disables SATA Port 1. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 62 [Last state]: Enters to the last power state before a power failure sables.  Wake On Lan [Enabled] Enables or disables Wake On LAN (WOL) function.  BIOS Lock [Disabled] Enables or disables BIOS the SC BIOS Lock enable feature. It is required to be enabled to  ensure SMM protection of flash. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 63: Security Setup

    Allows you to set Administrator Password to control access to the BIOS Setup utility. ■ User Password Allows you to set User Password to control access to the system at boot and to the BIOS Setup utility. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 64: Boot Setup

    Allows you to enable or disable Quiet Boot function. ■ Fast Boot Allows you to enable or disable Fast Boot function. If enabled, system boots with initialization of a minimal set of devices required to launch active boot option. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 65: Save & Exit

    ■ Save as User Defaults This item allows you to save the changes done so far as user defaults. ■ Restore User Defaults This item allows you to restore the user defaults to all the setup options. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 66: Chapter 5 Product Application (For Cmi-Dio100 Only)

    Chapter 5 Product Application (For PB-100-DIO Only)

  • Page 67: Digital I/O (Dio) Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O for Spectra PowerBox 110 series product Item Standard GPIO54 (Pin13)
  • Page 68 5.1.1.3 Relative Registers To program the F81866A configuration registers, the following configuration procedures. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 69 // Set (bit 4~7) = 0 to select GP 54~57 as Input mode. <Input Value> WriteByte(AddrPort, 0xA1) // Select configuration register A1h ReadByte(DataPort, Value) // Read bit 4~7 (0xFx)= GP54 ~57 as High. <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 70 // Set (bit 0~3) = 1 to select GP 60 ~63 as Output mode. <Output Value> WriteByte(AddrPort, 0x91) // Select configuration register 91h WriteByte(DataPort, Value) // Set bit 0~3=(0/1) to output GP 60~63 as Low or High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 71 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 = DO4 = DI4 ‐ ‐ ‐ ‐ 1 0 0 0 value 1 0 0 0 ‐ ‐ ‐ ‐ value Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 72: Digital I/O (Dio) Hardware Specification

    - DO Signal have to pull up resistor to XCOM+ for external device, the resistance will affect the pull up current - Signal High Level : Pull up resistor to XCOM+ - Signal Low Level : = XCOM- - Sink Current: 1A (Max) Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 73: Dio Connector Definitions

    5.2.1 DIO Connector Definitions DIO1: Digital Input Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition XCOM+ XCOM- Pin 1 Pin 1 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 74: Chapter 6 Optional Module Pin Definitions And Settings

    Chapter 6 Optional Module Pin Definitions and Settings...

  • Page 75: Location Of The Connectors And Switches

    Cutout for PowerBox 100/110 series CMI Module with 1x LPT Port, 1x PS/2 / 1x Universal Bracket with PB-100-LPT/PS2 PS/2, LPT Cutout for PowerBox 100/110 series Locate the CMI connector on system motherboard as indicated. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 76 2. Insert PB-100-COM module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Attach the PB-100-COM bracket, and fasten 2 screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 77 COM3_1 / COM4_1 : RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half 1                         5 RS232 Definition Duplex Definition Duplex Definition 6                   9  DATA1- Power over Serial PIN Definitions DATA1+ RS422/ RS232 RS485 0/5/12V 0/5/12V 0/5/12V Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 78 2. Insert PB-100-DIO module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Attach the PB-100-DIO bracket, and fasten 2 screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 79 2. Insert PB-100-DP module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Attach the PB-100-DP bracket, and fasten 2 screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 80 2. Insert PB-100-DVI module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Attach the PB-100-DVI bracket, and fasten 2 screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 81 2. Insert PB-100-VGA module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Attach the PB-100-VGA bracket, fasten 2 screws and 2 D-Sub jack screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 82 1. Unscrew 2 screws to remove bracket from rear panel. 2. Insert PB-100-HDMI module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Attach the PB-100-HDMI bracket, fasten 2 screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 83 2. Insert PB-100-LPT/PS2 module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Attach the PB-100-LPT/PS2 bracket, fasten 2 screws and 2 D-Sub jack screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...

  • Page 84: Installing A Cfm-Poe Control Module

    CFM Module with PoE Control Function, Individual Port 25.5W CFM-PoE 1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of CFM-PoE module to the male connector on system motherboard. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 85 3. Turn over the heatsink and paste the thermal pad onto the marked by red squares. 4. Paste the heatsink onto the CFM-PoE module carefully and fasten 2 screws to fix it. 5. Paste the thermal pads onto the heatsink and coil carefully. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerBox 110  Series April 2019...
  • Page 86 Spectra GmbH & Co. KG Spectra GmbH & Co. KG Spectra (Schweiz) AG Mahdenstr. 3 Gewerbepark Ost 1 Flugplatzstr. 5 72768 Reutlingen 4621 Sipbachzell (Wels) 8404 Winterthur Germany Austria Switzerland Phone Phone +49 (0) 7121 1432-10 +43 (0) 7240 20190...
