Spectra POWERTWIN P12i5-6300UR User Manual

Powertwin p core-i series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

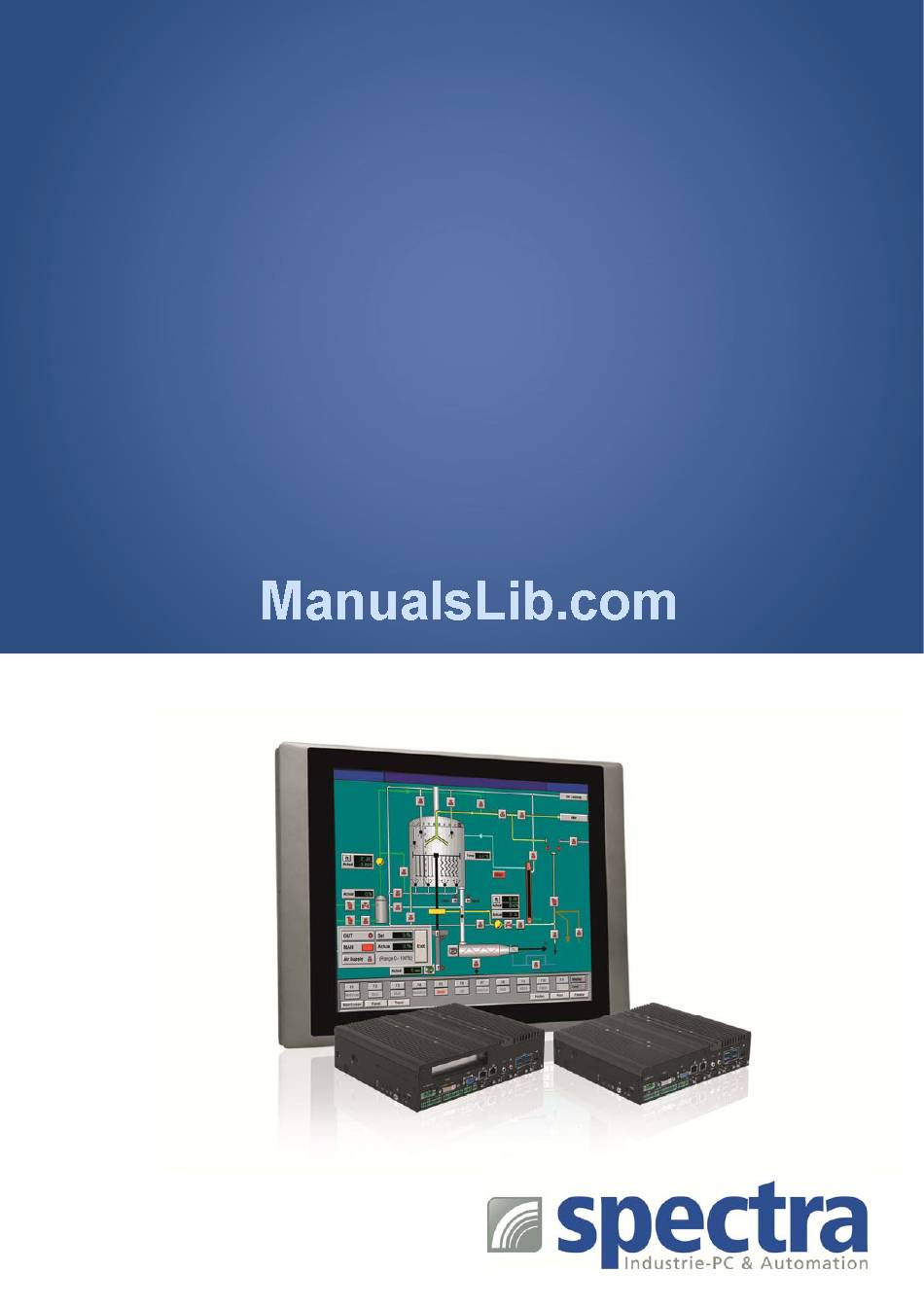

SPECTRA POWERTWIN
P CORE‐i SERIES
USER MANUAL
Version 1.5 – March 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERTWIN P12i5-6300UR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spectra POWERTWIN P12i5-6300UR

Summary of Contents for Spectra POWERTWIN P12i5-6300UR

  • Page 1 SPECTRA POWERTWIN  P CORE‐i SERIES USER MANUAL Version 1.5 – March 2018...

  • Page 2: Table Of Contents

    3.11 Installing the Top Cover ………………………...…..….……………..50 3.12 Installing a SATA Hard Drive at Front Pane………..….……………… 51 3.13 Installing a SATA Hard Drive on Bottom Side …..…….……………... 54 3.14 Installing a SIM Card ……………………….………..….……………… 56 Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 3 5.2.1 Pi5-6300U DIO Connector Definition ………………………..96 Chapter 6 Standard Displays + Pi5-6300U(E) Modules Technical data & Dimensions..…………………….…..….………….. 99 Chapter 7 Sunreadable Displays + Pi5-6300U(E) Modules Technical data & Dimensions..…………………….…..….………….. 112 Appendice Panel Mount Procedure …..…………………….…..….………….. Tripple Display Set-up……………………………………………………..125 Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 4: Revision

    2018/03/19 Copyright Notice © 2018 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Spectra GmbH &...

  • Page 5: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in a Spectra RMA Request Form and obtain a RMA number from us. Please go to www.spectra.de/RMA...

  • Page 6: Technical Support And Assistance

    Prefaces Technical Support and Assistance 1. Visit our website at www.spectra.de where you can find the latest information about the product. 2. Contact our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ...

  • Page 7: Safety Precaution

     The equipment has been dropped and damaged.  The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 8: Package Contents

    Power Ignition Sensing Control Function Module PT‐i5‐CFM‐PoE100‐R10 PoE Control Function Module, individual port 25.5W (50 x 44 x 15 mm) (For Pi5‐6300U only) PT‐i5‐CFM‐PoE101‐R10 PoE Control Function Module, individual port 25.5W (50 x 44 x 33 mm) (For Pi5‐6300UE only) Mini‐PCIe module with 2x RS‐232 Serial Ports, 1x Universal bracket  PT‐MEC‐COM‐M212 (154 x 17 x 11 mm) Mini‐PCIe module with 4x RS‐232/422/485 Serial Ports,1x Universal bracket  PT‐MEC‐COM‐M334 (154 x 17 x 11 mm) Mini‐PCIe module with 2x LAN Ports, 1x Universal bracket  PT‐MEC‐LAN‐M002 (154 x 17 x 11 mm) Mini‐PCIe module with 2x USB 3.0 Ports, 1x Universal bracket  PT‐MEC‐USB‐M002 (154 x 17 x 11 mm) Mini‐PCIe module with 1x 1394A Port, 2x 1394B Ports, 1x Universal bracket  PT‐MEC‐FIR‐M003 (154 x 17 x 11 mm) RSC‐E4 Riser Card 1 x PCIex4 (For Pi5‐6300UE only) RSC‐P V1.2 Riser Card 1 x PCI (For Pi5‐6300UE only) PB3000 Power Adapter 120 W Power Adapter 24V/5A, 3pin Phoenix, w/Tube (when PoE Option) Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 9: Ordering Information

    Ordering Information Spectra PowerTwin Series with standard displays & Pi5-6300U(E) Modules Modell Description Spectra PowerTwin P12i5‐6300UR 12" TFT XGA 4:3 Panel PC with Resistive 5‐wire Touch Modell Description Spectra PowerTwin P15i5‐6300UR 15" TFT XGA 4:3 Panel PC with Resistive 5‐wire Touch Spectra PowerTwin P15i5‐6300UER 15" TFT XGA 4:3 Panel PC with Resistive 5‐wire Touch, expandable Spectra PowerTwin P15i5‐6300UC 15" TFT XGA 4:3 Panel PC with Projected Capacitive Touch Spectra PowerTwin P15i5‐6300UEC 15" TFT XGA 4:3 Panel PC with Projected Capacitive Touch, expandable Modell Description Spectra PowerTwin PW15i5‐6300UR 15" TFT XGA 16:9 Panel PC with Resistive 5‐wire Touch Spectra PowerTwin PW15i5‐6300UER 15" TFT XGA 16:9 Panel PC with Resistive 5‐wire Touch, expandable Modell Description Spectra PowerTwin P17i5‐6300UR 17" TFT SXGA 5:4 Panel PC with Resistive 5‐wire Touch Spectra PowerTwin P17i5‐6300UER 17" TFT SXGA 5:4 Panel PC with Resistive 5‐wire Touch, expandable Spectra PowerTwin P17i5‐6300UC 17" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch Spectra PowerTwin P17i5‐6300UEC 17" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch, expandable...

  • Page 10: Chapter 1 Product Introductions

    Chapter 1 PRODUCT INTRODUCTIONS...

  • Page 11: Overview

    1.1 Overview Spectra PowerTwin Pi5-6300U(E) is a high performance fanless embedded and display computer powered by Intel® 6th generation Core™ U series processor with only 15 watt power consumption. The advanced graphics engine supports triple independent display with 1x VGA, 1x DVI-D and 1x CDS interface.

  • Page 12: Product Pictures

    PowerTwin Pi5-6300U PowerTwin Pi5-6300UE Front Front Rear Rear Side (Left) Side (Left) Side (Right) Side (Right) 1.4 key Features •  Onboard Intel® 6th Generation Core™ U Series Processor (15W) •  2x DDR4 SO‐DIMM Socket, Support Up to 32 GB •  Advanced Graphics Engine Support Triple Independent Display •  2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket •  2x Full Size Mini‐PCIe Socket •  1x PCI or 1x PCIex4 Socket  (For PowerTwin Pi5‐6300UE only) •  Support CFM (Control Function Module) Technology •  Support 2x PoE+, Individual Port Offers Max. 25.5W (with optional CFM module) •  Support Ignition Sensing Function (IGN) (with optional CFM module) •  Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO) •  Support Instant Reboot Technology •  Support CDS Technology for Convertible Panel PC •  Wide Operating Temperature (‐25°C to 70°C) •  SuperCap integrated for Battery Maintenance‐Free Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 13: Hardware Specification

    • 1x Universal I/O Bracket (with SSD, according to IEC60068-2-27) • 1x SIM Socket • Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes • 4x Antenna Hole (with SSD, according to IEC60068-2-64) • EMC: CE, FCC Class A Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 14: System I/O

    PowerTwin Pi5-6300UE 1.3.2 Rear CFast and SIM Card Power On/Off Switch CFast card and SIM card slot Power-on or power-off the system HDD/SSD 2.5” SATA HDD/SSD Bay, Support RAID 0/1 PowerTwin Pi5-6300U PowerTwin Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 15 Press to decrease brightness of the screen PowerTwin Pi5-6300U PowerTwin Pi5-6300UE 1.3.4 Right Antenna Hole Used to connect an antenna for optional Mini-PCIe Used to connect to RS-232/422/485 serial devices WiFi module PowerTwin Pi5-6300U PowerTwin Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 16 1.3.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) PowerTwin Pi5-6300U PowerTwin Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 17: Mechanical Dimension

    1.7 Mechanical Dimension Unit: mm PowerTwin Pi5-6300U Unit: mm PowerTwin Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 18 Chapter 2 JUMPERS, SWITCHES & CONNECTORS...

  • Page 19: Jumper Settings

    1 2 3 1 2 3 Open Short All pins are open Pins 1 and 2 are short Pins 2 and 3 are short 2.2 Location of Jumpers, Switches and Connectors 2.2.1 Top View Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 20 2.2.2 Bottom View Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 21: List Of Jumpers, Connectors And Switches

    SPK_L1 、 SPK_R1 Internal Speaker Connector USB2_1 USB 2.0 Port USB3_1 、 USB3_2 USB 3.0 Port VGA1 VGA Connector PWR_SW1 Power Switch Connector FAN1 FAN Increase DIO1 DIO Connector DIO2 DIO Connector PCIE1 PCIE Connector Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 22: Definition Of Switches

    Clear CMOS Function Setting : Pin Define SW2 Switch Switch mode Function CMOS Clear CMOS Normal (Default) COM1/2 Voltage Function Setting : Pin Define SW2 Switch Switch mode Function ON/ON (Default) COM2 ON/OFF OFF/OFF ON/ON (Default) COM1 ON/OFF OFF/OFF Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 23 COM3/4/5/6 Voltage Function Setting : Pin Define SW1 Switch Switch mode Function ON/ON (Default) COM3 ON/OFF OFF/OFF ON/ON (Default) COM4 ON/OFF OFF/OFF ON/ON (Default) COM5 ON/OFF OFF/OFF ON/ON (Default) COM6 ON/OFF OFF/OFF Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 24 Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode（Default） BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 25 BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Switch Switch Definition Push Reset System Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 26: Definition Of Connectors

    2.5 Definition of Connectors CFAST1: CFast Connector Definition Definition Definition PC10 SATA_TX2+ PC11 SATA_TX2- PC12 PC13 +3.3V SATA_RX2- PC14 +3.3V SATA_RX2+ PC15 PC16 PC17 SIM1：SIM Card Socket Definition UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 27 COM1_1/COM2_1/(COM3_1/COM4_1/COM5_1/COM6_1 in the BTB Board): RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Full Duplex Half Duplex Definition Definition Definition DATA- DATA+ Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 28 DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 29 Definition Blinking Yellow Data Activity Steady Green 1Gbps Network Link No Activity Steady Orange 100Mbps Network Link 10Mbps Network Link LED1: Power / HDD Access LED Status LED Status LED Color Yellow POWER Green Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 30 CN1: Mini PCI-Express Socket (SIM Card to Link) Definition Definition Definition WAKE# RESERVED +3.3V +3.3V USB_D+ RESERVED PERST# PERN0 +3.3V +1.5V +3.3V CLKREQ# PERN0 RESERVED SIM_DATA +1.5V REFCLK+ SIM_CLK SMB_CLK +1.5V REFCLK+ PETN0 SIM_RESET SMB_DATA PETP0 SIM_VPP +3.3V USB_D- Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 31 CN2: Mini PCI-Express Socket / mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# PERN0/SATAPR0 +3.3V +1.5V +3.3VAUX CLKREQ# PERN0/SATARN0 +1.5V REFCLK+ SMB_CLK +1.5V REFCLK+ PETN0 SMB_DATA PETP0 +3.3V USB_D- Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 32 CN3: mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# SATARXP +3.3V +1.5V +3.3V SATARXN +1.5V SMB_CLK +1.5V SATATXN SMB_DATA SATATXP +3.3V USB_D- Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 33 POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition Definition +12V +12V SATA1/SATA2: SATA with Power Connector Definition Definition SATA_TX+ SATA_TX- SATA_RX- SATA_RX+ +3.3V +3.3V +12V +3.3V +12V +12V Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 34 SPK_L1: Left Internal Speaker Connector Definition OUT_L SPK_R1: Right Internal Speaker Connector Definition OUT_R USB2_1: USB2.0 Connector, Type A Definition USB2_DATA1- USB2_DATA1+ USB3_1、USB3_2 : USB 3.0 Connector, Type A Definition Definition USB3_RX0+ USB2_D0- USB2_D0+ USB3_TX0- USB3_TX0+ USB3_RX0- Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 35 OUT1_1 OUT6_1 OUT2_1 OUT7_1 OUT3_1 OUT8_1 OUT4_1 XCOM-_1 DIO2(IN): Digital Input / Output Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+_1 IN5_1 IN1_1 IN6_1 IN2_1 IN7_1 IN3_1 IN8_1 IN4_1 XCOM-_1 Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 36 Definition 0 second 1 minute 5 minutes 10 minutes 30 minutes 1 hour 2 hours Reserved (0 second) 12V_24V_1: 12V / 24V Car Battery Switch Definition 24V Car Battery Input 12V Car Battery Input Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 37: Chapter 3 System Setup

    Chapter 3 SYSTEM SETUP...

  • Page 38: Removing The Top Cover

    1. Loosen the six screws at front and rear panel. 2. Raise the left edge of top cover(1) , and raise the other side (2) subsequently to remove it from the chassis. 3. Place the top cover aside gently. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 39: Installing A Half Size Mini Pcie Card

    2. Use two screws provided on adapter bracket to fasten the card and bracket together. 3. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. 45° Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 40: Installing A Full Size Mini Pcie Card

    1. Locate the Mini PCIe slot on the system board. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 41: Installing A Msata Card

    1. Locate the mSATA slot on the system board. 2. Tilt the mSATA card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 42: Installing Antennas

    3. Fasten the card with two screws. 3.5 Installing Antennas 1. Remove the antenna rubber covers on left and right panel. 2. Penetrate the antenna jack through the hole. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 43 3. Put on the washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at the another end of the cable onto the card. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 44: Installing A So-Dimm Module

    2. Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 45° 3. Press down the memory module until retaining clips snap back in place. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 45: Installing A Pci(E) Card

    4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. 3.7 Installing a PCI(e) Card 1. Locate the retention module of PCI(e) expansion card. 2. Loosen one screw halfway as indicated to have the clamp arm slidable. clamp arm Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 46 4. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly. 5..Fasten one screw to secure the PCI(e) expansion card. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de...

  • Page 47: Installing Thermal Pad Of Thermal Block

    7. Finally, fasten the screw that were previously loosen halfway to fix the retention module. 3.8 Installing Thermal Pad of Thermal Block Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create a efficient heat dissipation. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 48: Installing A Power Ignition Daughter Board (Optional)

    1. Locate the power Ignition connector on system motherboard as indicated. 2. Insert the female connector of power ignition board to the male connector on system motherboard. 3. Fasten two screws to secure the power ignition board. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 49: Installing A Poe Daughter Board (Optional)

    1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of PoE daughter board to the male connector on system motherboard. 3. Fasten two screws to secure the PoE board. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 50: Installing The Top Cover

    3.11 Installing the Top Cover 1. Put on the left edge of top cover onto system, and the other side subsequently. 2. Fasten the six screws at front and rear panel to secure the top cover. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 51: Installing A Sata Hard Drive At Front Pane

    3.12 Installing a SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove one screw. 2. Loosen the two screws to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 52 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 53 7. Put back HDD bay cover at front panel, and fasten it with two screws. 8. Fasten one screw to secure the HDD bracket on the system chassis. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 54: Installing A Sata Hard Drive On Bottom Side

    1. Turn over the system to bottom side. Locate the cover of HDD compartment. 2. Loosen the two screws, then pull the cover to remove it. 3. Loosen three screws and take the HDD bracket out of HDD compartment. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de...
  • Page 55 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. 6. Secure the HDD bracket with three screws. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 56: Installing A Sim Card

    7. Put back the cover and fasten the two screws. 3.14 Installing a SIM Card 1. Locate the SIM card slot at front panel. 2. Loosen two screws to remove the cover plate. 3. Insert the SIM card. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 57: Installing A Cfast Card

    3.15 Installing a CFast Card 1. Locate the CFast card slot at front panel. 2. Loosen the two screws to remove the cover plate. 3. Insert a CFast card. 4. Fasten two screws to secure the cover plate. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 58: Connecting With Powertwin Display Module

    2. Remove six screws at left and right panel of PC Pi5-6300U(E). 3. Assemble two mounting brackets to left and right panel of PC Pi5-6300U(E) by fastening three screws at each side. Left Panel Right Panel Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 59 4.Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on Pi5-6300U). Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 60 7. Align the mounting holes of Pi5-6300U with the screw holes of display module underneath. Then slide the PC Pi5-6300U(E) carefully as indicated to have Pi5-6300U and display module connected together. 8. Fasten six screws to secure Pi5-6300U on the display module. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 61: Vesa Mount

    To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. (Please refer to section 3.15 in this manual for how to attach PC Pi5-6300U(E) to PowerTwin display module.) Pi5-6300U + PowerTwin display module VESA stand Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 62: Wall Mount

    1. Prepare wall mount kit (two wall brackets and one screw pack) that came with the Pi5- 6300U. De-attach six rubber holes from the mounting brackets as indicated. 2. Assemble two wall mount brackets by fastening three screws at each side. The following picture indicates six wall mounting holes at each side. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 63 3. Attach the Pi5-6300U to wall by fastening six screws through mounting holes at each side as illustrated. Pi5-6300U Wall Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 64 Chapter 4 BIOS SETUP...

  • Page 65: Chapter 4 Bios Setup

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de...

  • Page 66: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 67: Advanced Setup

    4.3 Advanced Setup 4.3.1 ACPI Settings This item allows users to configure ACPI settings. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS ACPI Auto Configuration. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 68: Amt Configuration

    Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Un-Configure ME [Disabled] Sets this items to [Disabled] to unconfigure AMT/ME without using a password or set it to [Enabled] to use a password. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 69: Pch-Fw Configuration

    4.3.3 PCH-FW Configuration ■ Firmware Update Configuration  ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 70: F81866 Super Io Configuration

    This item allows users to change the address & IRQ settings of the specified serial port.  Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422] [RS485] Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 71: Hardware Monitor

    ■ PWM Fan Mode Configuration  PWM Fan1 Duty [60%] This item allows users to change duty cycle value of PWM Fan1.  PWM Fan2 Duty [60%] This item allows users to change duty cycle value of PWM Fan2. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 72: S5 Rtc Wake Settings

    This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 73: Serial Port Console Redirection

    4.3.7 Serial Port Console Redirection ■ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, COM3, Com4, COM5 console redirection function. 4.3.8 CPU Configuration Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 74: Sata Configuration

    RAID option ROM (OROM) / Intel® Rapid Storage Technology(RST) driver will refer to the software feature configuration to enable or disable the storage features.  RAID0 [Enabled] Enables or disables RAID0 function.  RAID1 [Enabled] Enables or disables RAID1 function. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 75  Port 1 [Enabled] Enables or disables SATA Port 1.  Hot Plug [Enabled] Enables or disables Hot Plug support for port1. ■ Serial ATA Port (CFast)  Port 2 [Enabled] Enables or disables SATA Port 2. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 76: Csm Configuration

    ■ Network PXE [Do not launch] This item allows users to enable or disable Network Preboot eXecution Environment (PXE) function. [Do not launch]: Disables option ROM. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 77 This item allows users to select whether to enable the UEFI or legacy option ROM for the other PCI devices. [Do not launch]: Disables option ROM. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 78: Asmedia Sata Controller Configuration

    4.3.11 Asmedia SATA Controller Configuration ■ SATA Controller 0 Configuration Settings Displays configuration information on SATA Controller 0. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 79: Usb Configuration

    USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.0) hand-off function. ■ USB Mass Storage Driver Support [Enabled] Enables or disables support for USB mass storage devices. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 80: Chipset Setup

    This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ VT-d [Enabled] This item allows users o enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 81  PCI Express Port 0 [Enabled] Allows you to enable or disable PCI Express Port 0.  PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 82 Allows you to specify which power state system will enter when power is resumed after a power failure. [Last State]: Enter last power state before a power failure. [S0 State]: Enter power-on state. [S5 State]: Enter power-off state. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 83: Security Setup

    Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. 4.5.3 HDD Security Configuration Allows access to set, modify and clear HDD user and master password. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 84: Boot Setup

    4.6.6 New Boot Option Policy [Default] Allows you to change New Boot Option Policy. Configuration options: [Default] [Place First] [Place Last]. 4.6.7 Hard Drive BBS Priorities [Default] Allows you to change the order of the legacy devices in the group. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 85: Save & Exit

    4.7.8 Save as User Defaults This item allows you to save the changes done so far as user defaults. 4.7.9 Restore User Defaults This item allows you to restore the user defaults to all the options. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 86 Chapter 5 PRODUCT APPLICATION...

  • Page 87: Chapter 5 Product Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O for Spectra PowerTwin series Item Standard GPIO70 (Pin103)
  • Page 88 To disable configuration, write exit entry key 0xAA to the index port. Following is an example to enable configuration and to disable configuration by using debug. -o 4e 87 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 89 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 90 Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 91 // Set (bit 0~7) = 0 to select GP 70~77 as Input mode. <Input Value> WriteByte(AddrPort, 0x82) // Select configuration register 82h ReadByte(DataPort, Value) // Read bit 0~7 (0xFF)= GP70 ~77 as High. <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 92 // Set (bit 0~7) = 1 to select GP 80 ~87 as Output mode. <Output Value> WriteByte(AddrPort, 0x89) // Select configuration register 89h WriteByte(DataPort, Value) // Set bit 0~7=(0/1) to output GP 80~87 as Low or High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 93 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Default GPIO Port base address is 0xA00h Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 94 = DO3 value value = DI4 = DO4 value value = DO5 value = DI5 value = DO6 = DI6 value value = DI7 = DO7 value value = DO8 = DI8 value value Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 95: Pi5-6300U Digital I/O (Dio) Hardware Specification

    - Logic 0: Close to GND - Logic 1: Open • Input Voltage: - Logic 0: -3V (Min/DI to COM+) • 8X Digital Output (Open Drain) - Supply Voltage: 5~48V - Sink Current: 1A (Max) - DO Max: 48V Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 96: Pi5-6300U Dio Connector Definition

    5.2.1 PowerTwin Pi5-6300 DIO Connector Definition DIO1/DIO2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch DIO1(Out) DIO2(IN) Definition Definition DC INPUT DC INPUT Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 97 Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 98 Chapter 6 STANDARD DISPLAYS + Pi5-6300U(E)

  • Page 99: Chapter 6 Standard Displays + Pi5-6300U(E) Modules Technical Data & Dimensions

    6.1 Spectra PowerTwin with 12” standard Display SPT-12/Pi5-6300U(E) SPT-H12/Pi5-6300U(E) Display Display • LCD Size: 12.1" (4:3) • LCD Size: 12.1" (4:3) • Max. Resolution: 800 x 600 • Max. Resolution: 1024 x 768 • Brightness (cd/m2): 450 • Brightness (cd/m2): 500 •...
  • Page 100 Dimensions Spectra PowerTwin with 12” standard Display SPT-12/Pi5-6300U SPT-12/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 101 6.2 Spectra PowerTwin with 15” standard Display Display • LCD Size: 15" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2): 350 • Contrast Ratio: 700 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.297 (H) x 0.297 (V) •...
  • Page 102 Dimensions Spectra PowerTwin with 15” standard Display SPT-15/Pi5-6300U SPT-15/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 103 6.3 Spectra PowerTwin with W15” standard Display Display • LCD Size: 15.6" (16:9) • Max. Resolution: 1366 x 768 • Brightness (cd/m2): 400 • Contrast Ratio: 500 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.252 (H) x 0.252 (V) •...
  • Page 104 Dimensions Spectra PowerTwin with W15” standard Display SPT-W15/Pi5-6300U SPT-W15/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 105 6.4 Spectra PowerTwin with 17” standard Display Display • LCD Size: 17" (5:4) • Max. Resolution: 1280 x 1024 • Brightness (cd/m2): 350 • Contrast Ratio: 800 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.264 (H) x 0.264 (V) •...
  • Page 106 Dimensions Spectra PowerTwin with 17” standard Display SPT-17/Pi5-6300U SPT-17/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 107 6.5 Spectra PowerTwin with 19” standard Display Display • LCD Size: 19" (5:4) • Max. Resolution: 1280 x 1024 • Brightness (cd/m2): 350 • Contrast Ratio: 1000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.294 (H) x 0.294 (V) •...
  • Page 108 Dimensions Spectra PowerTwin with 19” standard Display SPT-19/Pi5-6300U SPT-19/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 109 6.6 Spectra PowerTwin with W21” standard Display Display • LCD Size: 21.5" (16:9) • Max. Resolution: 1920 x 1080 • Brightness (cd/m2): 300 • Contrast Ratio: 5000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.24825 (H) x 0.24825 (V) •...
  • Page 110 Dimensions Spectra PowerTwin with W21” standard Display SPT-W21/Pi5-6300U SPT-W21/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 111 Chapter 7 SUNREADABLE DISPLAYS + Pi5-6300U(E)

  • Page 112: Chapter 7 Sunreadable Displays + Pi5-6300U(E) Modules Technical Data & Dimensions

    7.1 Spectra PowerTwin with 12” sunreadable Display Display • LCD Size: 12.1" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2):1500 • Contrast Ratio: 700 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.24 (H) x 0.24 (V) •...
  • Page 113 Dimensions Spectra PowerTwin with 12” sunreadable Display SPT-SH12C/Pi5-6300U SPT-SH12CO/Pi5-6300U SPT-SH12C/Pi5-6300UE SPT-SH12CO/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 114 7.2 Spectra PowerTwin with 15” sunreadable Display Display • LCD Size: 15" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2): 1600 • Contrast Ratio: 800 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.297 (H) x 0.297 (V) •...
  • Page 115 Dimensions Spectra PowerTwin with 15” sunreadable Display SPT-S15C/Pi5-6300U SPT-S15CO/Pi5-6300U SPT-S15C/Pi5-6300UE SPT-S15CO/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 116 7.3 Spectra PowerTwin with 17” sunreadable Display Display • LCD Size: 17" (5:4) • Max. Resolution: 1280 x 1024 • Brightness (cd/m2): 1500 • Contrast Ratio: 800 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.264 (H) x 0.264 (V) •...
  • Page 117 Dimensions Spectra PowerTwin with 17” sunreadable Display SPT-S17C/Pi5-6300U SPT-S17CO/Pi5-6300U SPT-S17C/Pi5-6300UE SPT-S17CO/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 118 7.4 Spectra PowerTwin with 19” sunreadable Display Display • LCD Size: 19" (5:4) • Max. Resolution: 1280 x 1024 • Brightness (cd/m2): 1600 • Contrast Ratio: 1000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.294 (H) x 0.294 (V) •...
  • Page 119 Dimensions Spectra PowerTwin with 19” sunreadable Display SPT-S19C/Pi5-6300U SPT-S19CO/Pi5-6300U SPT-S19C/Pi5-6300UE SPT-S19CO/Pi5-6300UE Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...

  • Page 120: Appendice

    Appendice PANEL MOUNT PROCEDURES TRIPPLE DISPLAY SET-UP...

  • Page 121: A Panel Mount Procedure

    A. Panel Mount Procedures A.1 Mounting Solution Guide For Panel Mount 1. Accessories provided by Spectra are as follows. Mounting Kits Panel Mount PPC Before assembly, please prepare panel mount PPC and customer’s fixture. Panel Mount with customer’s fixture (Front View) Spectra GmbH & Co. KG...
  • Page 122 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. LVDS connector Before Mounting Kits are installed Panel mount side view with LVDS connector of Spectra PowerTwin series Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 123 STEP 1 Position panel mount kits STEP 2 Insert the panel mounting kit into bottom hole STEP 3 Slide the kit toward back Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 124 STEP 4 Tighten the screw forward until the front screw just touches the surface 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...

  • Page 125: Tripple Display Set-Up

    B. Tripple Display Set-up B.1 How to set up triple display extended & clone mode function Spectra PowerTwin Pi5-Series with Windows® 10 IoT 64-bit B.1.1 How to install resistive panel driver in Windows 10? Install Windows 10 IoT 64-bit Please double click Setup.exe (Driver CD) Spectra GmbH & Co. KG...
  • Page 126 Accept the terms of license agreement Please make sure that your touch monitor or touch controller’s USB cable is plugged into the computer now Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 127 Please Select “Yes The driver is installed completely Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 128 Install Windows 10 IoT 64-bit B.1.2.1 CLONE DISPLAYS a. Please double click Intel HD graphics, control panel b. Multiple Displays  Clone Displays c. Apply Spectra PowerTwin 10”, 12” & 15” Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series...
  • Page 129 B.1.2.2 EXTENDED DISPLAYS a. Please double click Intel HD graphics, control panel b. Multiple Displays  Extended Displays c. Apply Spectra PowerTwin 10”, 12” & 15” Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 130 B.1.3 How to setup triple display extended and clone function on capacitive panel? B.1.3.1 CLONE DISPLAYS Setup the same as in B.1.2.1. B.1.3.2 EXTENDED DISPLAYS Setup the same as in B.1.2.2. Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 131 B.1.4 How to use touch function in extended and clone mode? Use touch function in extended displays Use touch function in clone displays Spectra GmbH & Co. KG User Manual Version 1.5 vertrieb@spectra.de Spectra PowerTwin P Core‐i Series March 2018...
  • Page 132 Spectra GmbH & Co. KG Spectra GmbH & Co. KG Spectra (Schweiz) AG Mahdenstr. 3 Gewerbepark Ost 1 Flugplatzstr. 5 72768 Reutlingen 4621 Sipbachzell (Wels) 8404 Winterthur Germany Austria Switzerland Phone Phone +49 (0) 7121 1432-10 +43 (0) 7240 20190...
