Manual Fiber Polarization Controllers Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal...
(i.e., the solution will not vary by a complete loop N for Ø900 µm jacketed fiber). The FPC020, FPC030, and FPC560 are empty controllers in which the user can install a fiber of their choice. The rest of our fiber polarization controllers have fiber pre-installed to optimize the polarization control at common wavelengths.
Manual Fiber Polarization Controllers Chapter 2: General Description 2.1. 3-Paddle Fiber Polarization Controllers A 3-paddle polarization controller combines a quarter-wave plate, half-wave plate, and quarter-wave plate in series to transform an arbitrary polarization state into any other polarization state. The first quarter-wave plate would transform the input polarization state into a linear polarization state.
Page 7
Manual Fiber Polarization Controllers Chapter 2: General Description Figure 3 and Figure 4 show the results for Ø80 µm and Ø125 µm clad fiber, respectively, for the FPC560 controller, which has three paddles with a loop diameter of 56 mm. The larger loop diameter is ideal for fibers with higher bend loss.
1, 2, 3, and 4 loops per paddle for a fiber with cladding diameters of 80 µm and 125 μm (Figure 5 and Figure 6). Due to its small size, the FPC020 cannot accommodate more than 4 loops per paddle. Page 6...
Manual Fiber Polarization Controllers Chapter 2: General Description 2.3. Recommended Number of Loops The retardation of multi-order (including zero order) quarter-wave plate is given by the following equation: where m is an integer. Similarly, the retardation of multi-order (including zero order) half-wave plate is given by: See the table below for several solutions to the equations Quarter-Wave...
Page 11
Manual Fiber Polarization Controllers Chapter 2: General Description The number of recommended loops and recommended fiber for several wavelengths is given in the following tables. These combinations come close to the desired quarter-wave retardation: # of Loops for ~1/4λ Retardation Wavelength Ø18 mm Ø27 mm...
Manual Fiber Polarization Controllers Chapter 3: Setup Chapter 3 Setup 3.1. Loading the Fiber 3.1.1. 3-Paddle Fiber Polarization Controllers The FPC030 and FPC560 do not come with fiber and we recommend using at least 2 m of fiber. The controller can accept bare fiber or a jacket up to Ø900 µm.

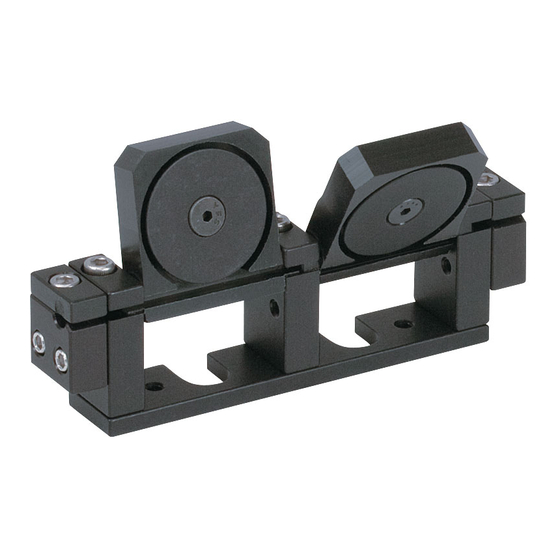

3.1.2. Miniature 2-Paddle Fiber Polarization Controllers The FPC020 does not come with fiber and we recommend using at least 2 m of fiber. The controller can accept bare fiber or a jacket up to Ø900 µm. Position both paddles vertically and align the grooves (see Figure 8).
Thorlabs or your nearest dealer for further information. Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
Manual Fiber Polarization Controllers Chapter 6: Thorlabs Worldwide Contacts Chapter 6 Thorlabs Worldwide Contacts USA, Canada, and South UK and Ireland America Thorlabs Ltd. Thorlabs, Inc. 1 Saint Thomas Place, Ely 56 Sparta Avenue Cambridgeshire CB7 4EX Newton, NJ 07860...
