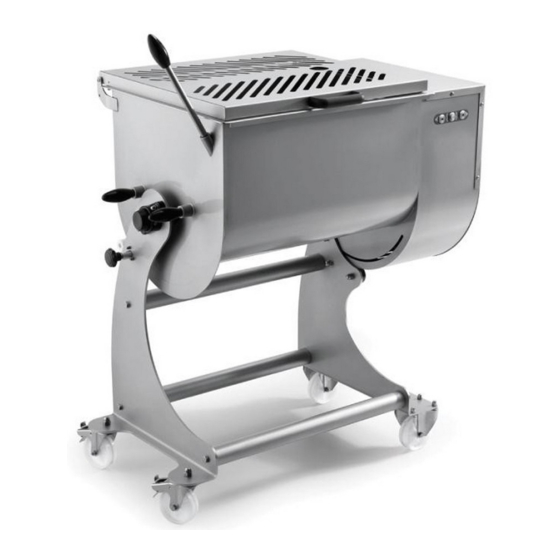

- Page 1 Electrical Meat Mixers Models MM-IT-0080, 0120 Items 37450, 37451 Instruction Manual Revised - 10/19/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MM-IT-0080 / Model MM-IT-0120 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Installation -------------------------------------------------------------------------------------------- 7 Operation ----------------------------------------------------------------------------------------- 8 - 9 Maintenance --------------------------------------------------------------------------------- 10 - 12... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty 1. Rotor protection grille. This safety feature impedes incidental contact with the rotor. 2. Micro-switch. 3. Knob to lock tank. 4. Ball grip for locking the rotor in position. ATTENTION! Do Not for any reason tamper with the safety features. DANGER AND WARNING NOTICES ATTENTION When the appliance is connected to the electricity supply do not touch any...
-
Page 6: Technical Specifications
1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. -
Page 7: Installation
Installation ATTENTION! The work surface or area where the appliance is to be installed must be horizontal and solid guaranteeing stability and safety. When installing the appliance bear in mind that amp space must be left around the appliance. This space allows you to work freely with the appliance and allows easy access when servicing or repairing it. -
Page 8: Operation
Operation LIST OF CONTROLS AND INDICATORS CONTROL PANEL 1. Stop button. - Black. - Press to stop rotor motor. 2. Light indicator for tension. - Green. - Indicates power supply. On the stop button marked with “1” it is green and remains lit when the appliance has power. - Page 9 Operation - Signals that the machine is connected to the electrical network. 5. Drive indicator light. - Signals that the tool of the machine is in movement. - Located close to the start push-button “3” and close to the reverse drive push-button “3”. - Visible only when the control is operating.
-
Page 10: Maintenance
Maintenance EMPTYING AND CLEANING EMPTYING THE MIXING BOWL Turn off the mixer, the on/off switch is in position “0” unplug from main power supply. The mixing bowl is designed to rotate to facilitate emptying. • With the bowl in a horizontal position grip the handle on the bowl titling bar. •... - Page 11 Maintenance for use given. ATTENTION! The mixer must always be off and the power plug removed from the power socket when servicing and cleaning. The maintenance area must always be clean, dry and well illuminated. Do not allow unauthorized staff to service the appliance. Do not put parts of your body, hands or arms into the mixer or openings not protected where there is the risk of being injured.
-
Page 12: Troubleshooting
The on/off switch is in position “0”. Switch the switch to position “1”. The grill is raised. Lower the grill. The microswitch mounted on the Contact Omcan. mixing drum does not work. Either the electric motor or the Contact Omcan. command circuit board is faulty. -
Page 13: Parts Breakdown
Parts Breakdown Model MM-IT-0080 37450... - Page 14 Parts Breakdown Model MM-IT-0080 37450 Item No. Description Position Item No. Description Position Item No. Description Position Mobile Wheel with Brake D 100 C/Perno AG284 Cable 3x1.5 for 37450 61579 62643 Flat Washer Din 125 D6 for 37450 for 37450 62602 Power Lead Motor TF/1.5 for 37450...
- Page 15 Parts Breakdown Model MM-IT-0120 37451...
- Page 16 Parts Breakdown Model MM-IT-0120 37451 Item No. Description Position Item No. Description Position Item No. Description Position Cradle INOX ME 120 EVO BIALB for Carter Band MOT. ME 120 EVO BIALB Bearing Reg. SP 7205 ME 80 EVO 61577 61584 61597 37451 for 37451...
-
Page 17: Electrical Schematics
Electrical Schematics Model MM-IT-0080 37450... - Page 18 Electrical Schematics Model MM-IT-0120 37451...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
