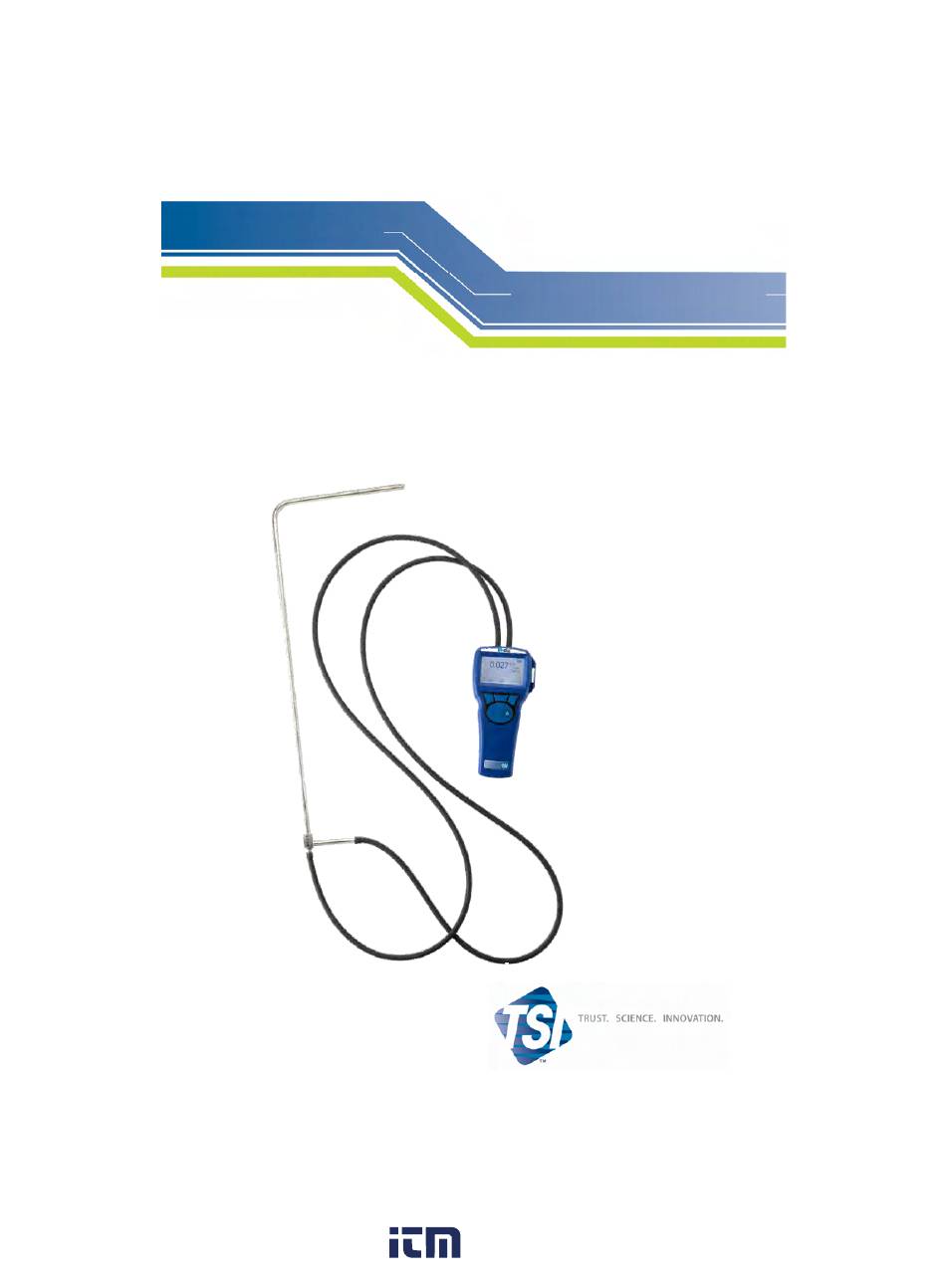

- Page 1 ENERGY AND COMFORT Ventilation Testing DP-C Micromanometer Model 5815 Operation and Service Manual 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Model 5815 DP-C Micromanometer ... 3 Installing the Batteries ...............3 CHAPTER 3 OPERATION ..............5 Keypad Functions ................5 CHAPTER 4 MAINTENANCE............7 Recalibration...................7 Cases....................7 Storage ...................7 CHAPTER 5 TROUBLESHOOTING.......... -
Page 3: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 1.800.561.8187 information@itm.com www. -
Page 4: Chapter 2 Setting-Up
Chapter 2 Setting-up Supplying Power to the Model 5815 DP-C Micromanometer The Model 5815 is powered with four size AA batteries. Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Model 5815 is designed to operate with either alkaline or NiMH rechargeable batteries, although it will not recharge NiMH batteries. -
Page 5: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Model 5815 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. ft/min / m/s Key Pressing this key changes the display to read air velocity, converted from. -
Page 6: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 5815. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model 5815 Symptom Possible Causes Corrective Action... -
Page 7: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Static/Differential Pressure: Range -15 to +15 in. H O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) Accuracy: ±1% of reading ±0.005 in. H O (±0.01 mm Hg, ±1 Pa) Resolution: 0.001 in.
