HIKVISION UD07275B Quick Start Manual

HIKVISION UD07275B Quick Start Manual

Network box camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Box Camera
Quick Start Guide
UD07275B
0

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION UD07275B

Summary of Contents for HIKVISION UD07275B

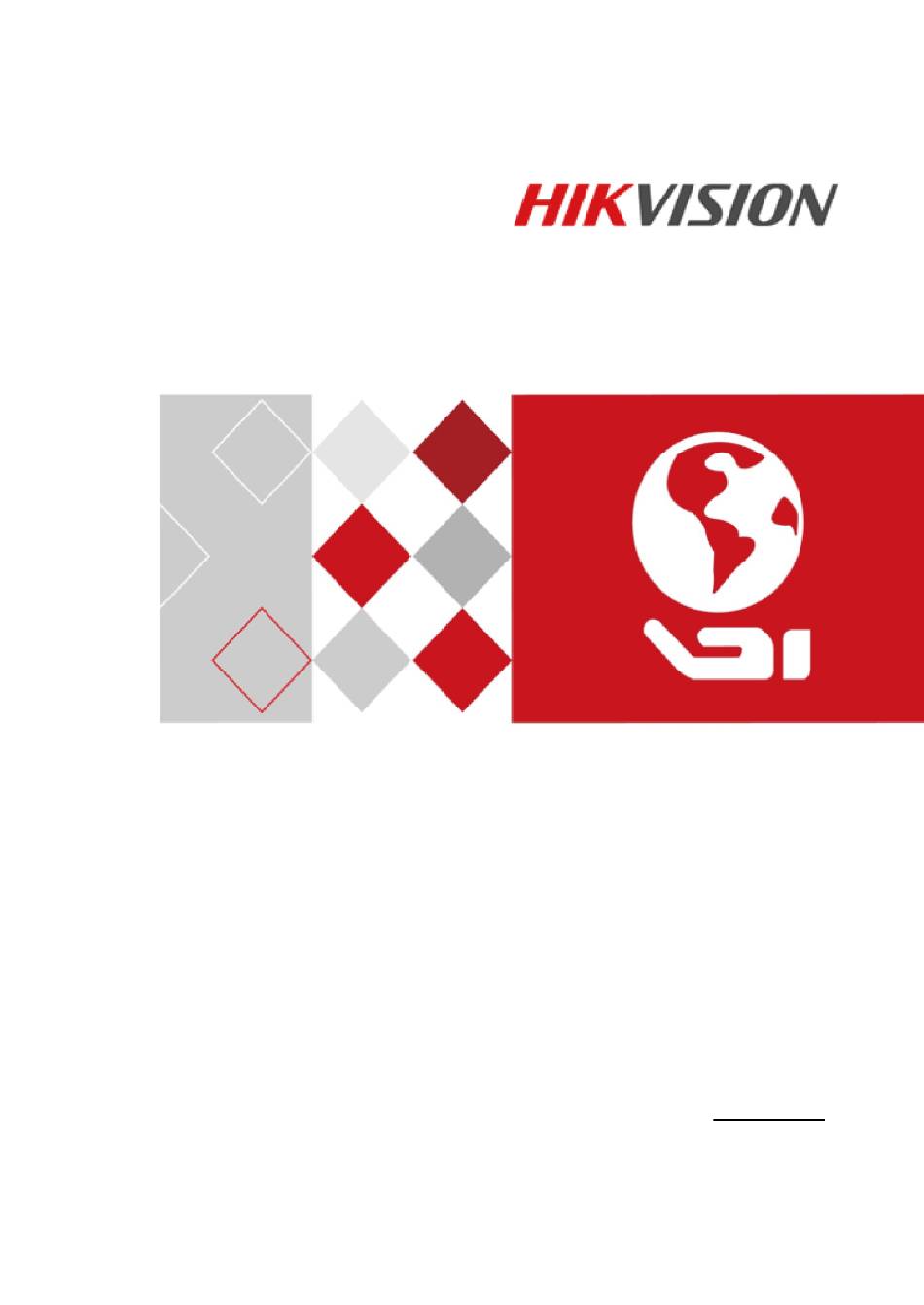

  • Page 1 Network Box Camera Quick Start Guide UD07275B...
  • Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 4 Network Box Camera·Quick Start Guide IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 5 Network Box Camera·Quick Start Guide This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Network Box Camera·Quick Start Guide Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings Serious injury or death may occur if any of the warnings are neglected.
  • Page 7 Network Box Camera·Quick Start Guide System Security The installer and user are responsible for password and security configuration and its settings. Battery Improper use or replacement of the battery may result in explosion hazard. Replace with the same or equivalent type only. Dispose of used batteries in conformance with the local codes.
  • Page 8 Network Box Camera·Quick Start Guide When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or it may burn out. Do not expose the device to high electromagnetic radiation or dusty environments.

  • Page 9: Table Of Contents

    Network Box Camera·Quick Start Guide Table of Contents 1 Appearance Description ..............9 2 Installation ................11 2.1 Memory Card Installation ..........11 2.2 Lens Installation ..............12 2.3 CameraMounting............... 13 2.3.1 Pendant Mounting ..........13 2.3.2 Wall Mounting ............15 2.4 Mounting with Housing ............

  • Page 10: Appearance Description

    Network Box Camera·Quick Start Guide 1 Appearance Description The overview of the box camera is shown below: Figure 1-1 Overview...
  • Page 11 Network Box Camera·Quick Start Guide Table 1-1 Description Description Description Lens Mount Auto-iris Interface Power Indicator ¼ -20 UNC Screw Hole LAN(PoE 802.3af) Power Supply (12 VDC/24 VAC) Reset ABF (Auto Back Focus) Memory Card Slot Video Out Grounding Screw Power Output (12 VDC, 200mA) Grounding Audio Input...

  • Page 12: Installation

    Network Box Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12 VDC, 24 VAC or PoE (802.3af), please make sure your power supply matches with your camera.

  • Page 13: Lens Installation

    Network Box Camera·Quick Start Guide Memory Card Figure 2-1 Memory Card Installation Lens Installation Before you start: The lens shown below is only for demonstration. Figure 2-2 Lens Installation...

  • Page 14: Cameramounting

    Network Box Camera·Quick Start Guide Steps: Fit the lens (not supplied) to the camera and rotate it to get it tightened. Notes:  Install the adapter ring to the lens interface if a C-mount lens is used.  A manual-iris lens can be directly installed to the camera without plugging the power cable of the auto-iris to the auto-iris interface.
  • Page 15 Network Box Camera·Quick Start Guide Figure 2-3 Install the Mount Screw the camera to pendant mount and tighten the nut. Adjust surveillance angle Adjusting Knob Figure 2-4 Adjust Surveillance Angle...

  • Page 16: Wall Mounting

    Network Box Camera·Quick Start Guide Loosen the adjusting knob. Hold the camera body to adjust panning and tilting position. Tighten the knob after adjustment. Adjust zoom and focus level. Refer to Section 2.5. 2.3.2 Wall Mounting Before you start: Wall mount is not included in package. If you adopt this mounting style, you need to prepare a mounting bracket in advance.
  • Page 17 Network Box Camera·Quick Start Guide 3. Install the wall mount to wall. 4. Install the pedestal together with the camera back to wall mount. Figure 2-7 Install Camera to Wall Mount 5. Adjust the surveillance angle. Loosen tilt adjusting screw. Tighten the screw after adjusting. Loosen pan adjusting screw.

  • Page 18: Mounting With Housing

    Network Box Camera·Quick Start Guide Mounting with Housing Before you start: The shown housing is not included in package. You need to prepare one if you adopt this mounting style. Also, for housing mounting, you need to prepare suitable brackets in advance.
  • Page 19 Network Box Camera·Quick Start Guide Window Cable Outlet Figure 2-10 Install Camera to Housing Connect and route cables through the cable outlet of the housing. For network, alarm input and output, and audio input and output, plug corresponding plugs to the rear panel of the camera.
  • Page 20 Network Box Camera·Quick Start Guide Heater To camera RS-485 -, yellow RS-485 +, orange To camera 12 VDC -, black 12 VDC +, red To power source 24 VAC Heater To camera RS-485 -, yellow RS-485 +, orange To camera To power source 24 VAC 24 VAC...
  • Page 21 Network Box Camera·Quick Start Guide Buckle the housing. Install the housing to surveillance scene. Using brackets, the housing supports wall mounting, pole mounting, and pendant mounting. The brackets are shown in the figures below: Wall Mount Horizontal Pole Mount Pendant Mount Install the bracket onto the wall/ceiling/pole.
  • Page 22 Network Box Camera·Quick Start Guide Ceiling Pendant Mount Figure 2-13 Install the Bracket to Mounting Place (2) Fix the housing (with camera) onto the bracket with the supplied screws. Loosen the adjusting screw to adjust the surveillance angle of the camera. Tighten the screw after adjustment. Pole Mount Adjustment Screw...

  • Page 23: Zoom And Focus Adjustment

    Network Box Camera·Quick Start Guide Pendant Mount Adjusting Screw Figure 2-15 Fix the Housing to Brackets (2) Adjust zoom and focus level. Refer to Section 2.5. Zoom and Focus Adjustment Steps: Power on the camera. Connect the video out interface of the camera to the installation display device.

  • Page 24: Setting The Network Camera Over The Lan

    Network Box Camera·Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.

  • Page 25: Activating The Camera

    Network Box Camera·Quick Start Guide Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. We will take activation via SADP software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 26: Activation Via Sadp Software

    Network Box Camera·Quick Start Guide Figure 3-3 Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 27 Network Box Camera·Quick Start Guide Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps: 1. Run the SADP software to search the online devices. 2.

  • Page 28: Modifying The Ip Address

    Network Box Camera·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 29 Network Box Camera·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an active device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Figure 3-5 Modify the IP Address...
  • Page 30 Network Box Camera·Quick Start Guide Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 5.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

  • Page 31: Accessing Via Web Browser

    Network Box Camera·Quick Start Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 to 42.
  • Page 32 Network Box Camera·Quick Start Guide 4. Click Login. Figure 4-1 Login Interface 5. Download and install appropriate plug-in for your web browser. For IE based web browser, webcomponents and QuickTime optional. For non-IE based web browser, webcomponents, QuickTime , VLC and MJEPG are optional. Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 33: Operating Via Hik-Connect App

    Network Box Camera·Quick Start Guide 5 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so Note: Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using...

  • Page 34: Enable Hik-Connect Service Via Web Browser

    Network Box Camera·Quick Start Guide Figure 5-1 Verification Code Setting (SADP) Note: The verification code is required when you add the camera to Hik-Connect app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. 5.1.2 Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service.
  • Page 35 Network Box Camera·Quick Start Guide Steps: 1. Access the camera via web browser. Refer to Chapter 4. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access Figure 5-2 Platform Access Configuration (Web) 3. Select Platform Access Mode as Hik-Connect. 4.

  • Page 36: Hik-Connect Setup

    Network Box Camera·Quick Start Guide Hik-Connect Setup Steps: 1. Download and install the Hik-Connect app by searching “Hik-Connect” in App Store or Google Play 2. Launch the app and register for a Hik-Connect user account. 3. Log in Hik-Connect app after registration. Adding Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on camera before...
  • Page 37 Network Box Camera·Quick Start Guide You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Figure 5-4 Scan QR Code Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.

  • Page 38: Initializing The Memory Card

    Network Box Camera·Quick Start Guide Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
