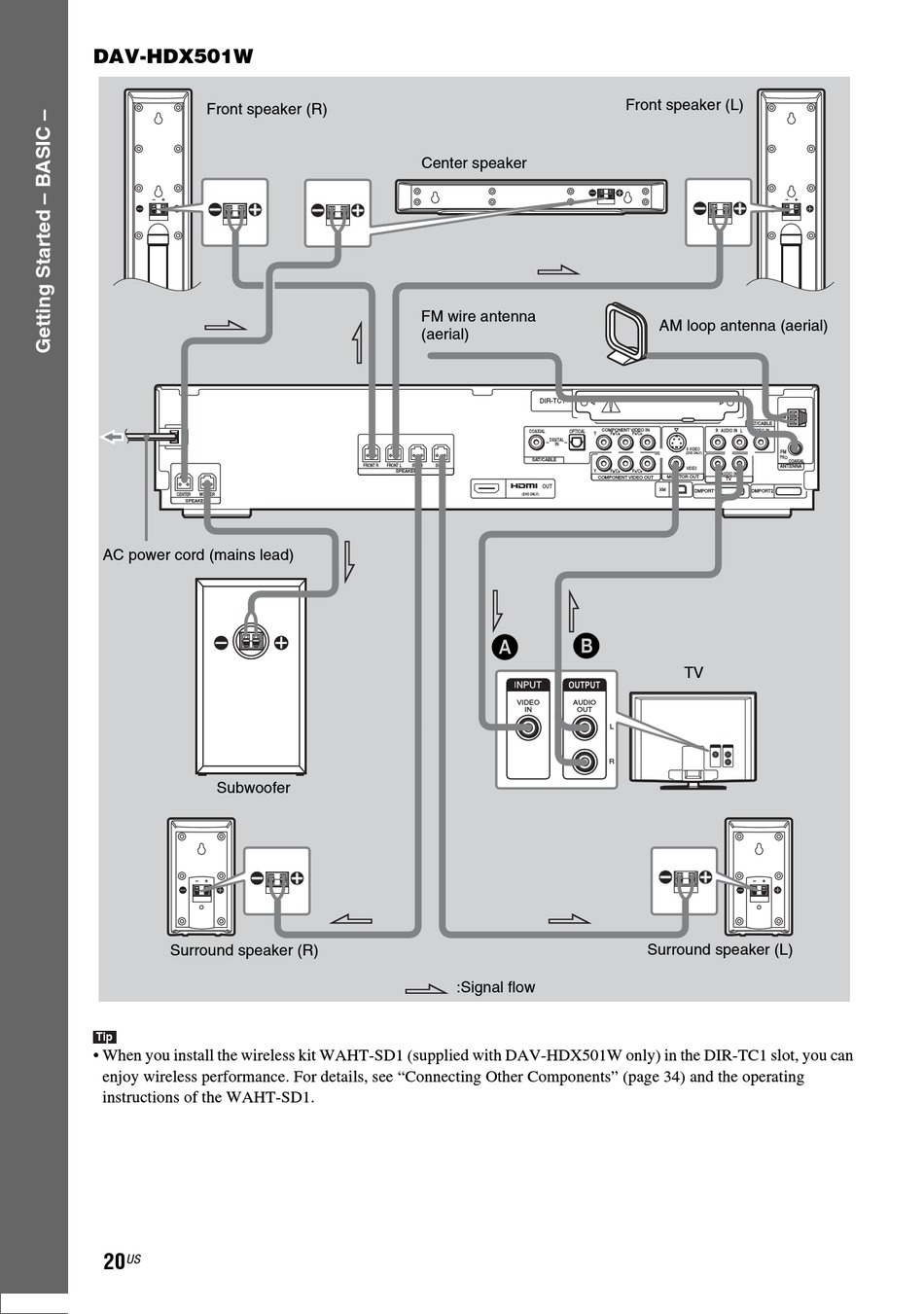

DAV-HDX501W
Front speaker (R)
CENTER WOOFER
SPEAKER
AC power cord (mains lead)
Subwoofer
Surround speaker (R)
Tip
• When you install the wireless kit WAHT-SD1 (supplied with DAV-HDX501W only) in the DIR-TC1 slot, you can
enjoy wireless performance. For details, see "Connecting Other Components" (page 34) and the operating
instructions of the WAHT-SD1.
