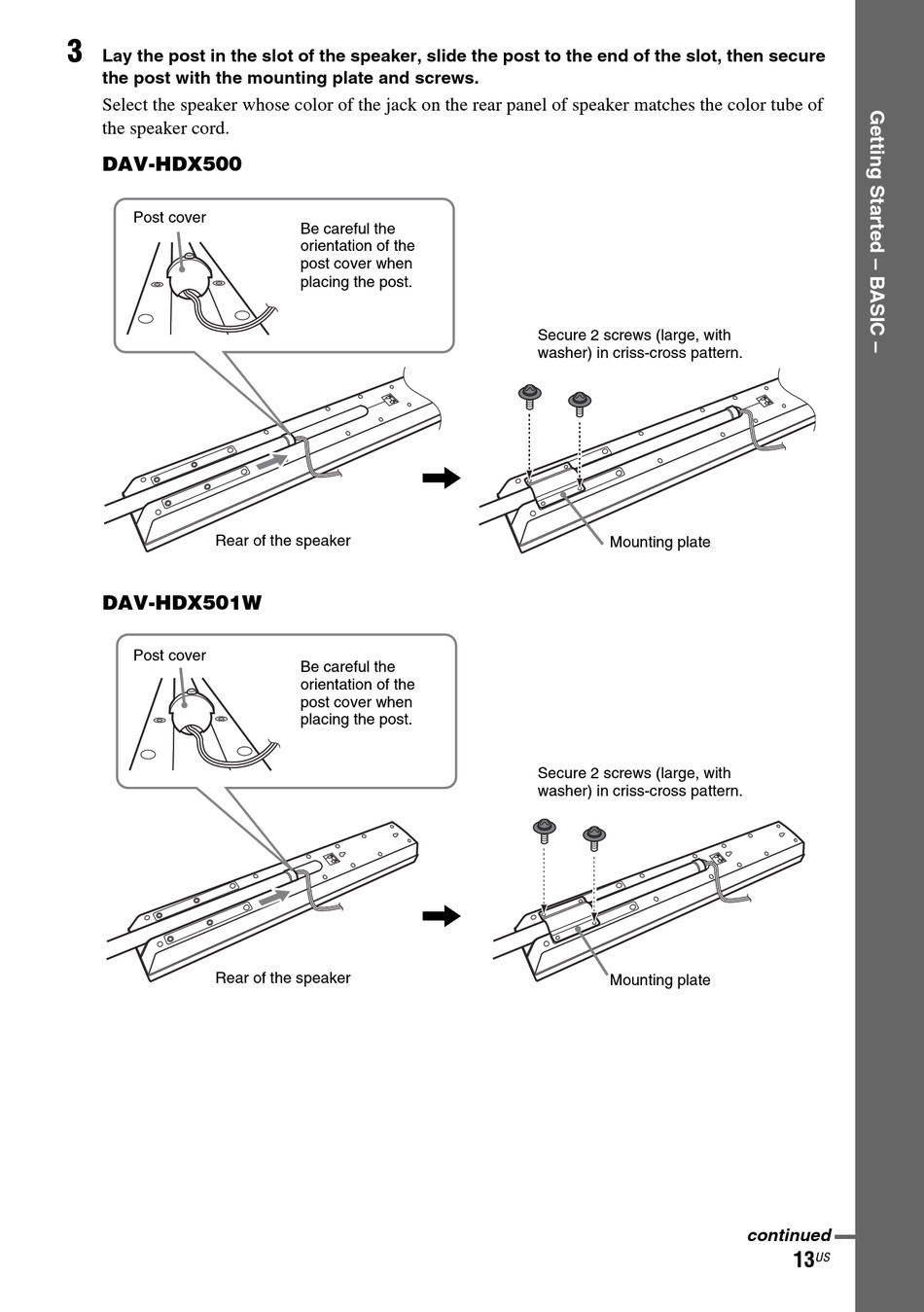

Lay the post in the slot of the speaker, slide the post to the end of the slot, then secure
the post with the mounting plate and screws.
Select the speaker whose color of the jack on the rear panel of speaker matches the color tube of
the speaker cord.
DAV-HDX500
Post cover
Rear of the speaker
DAV-HDX501W
Post cover
Rear of the speaker
Be careful the
orientation of the
post cover when
placing the post.
,
Be careful the
orientation of the
post cover when
placing the post.
,
Secure 2 screws (large, with
washer) in criss-cross pattern.
Mounting plate
Secure 2 screws (large, with
washer) in criss-cross pattern.
Mounting plate
