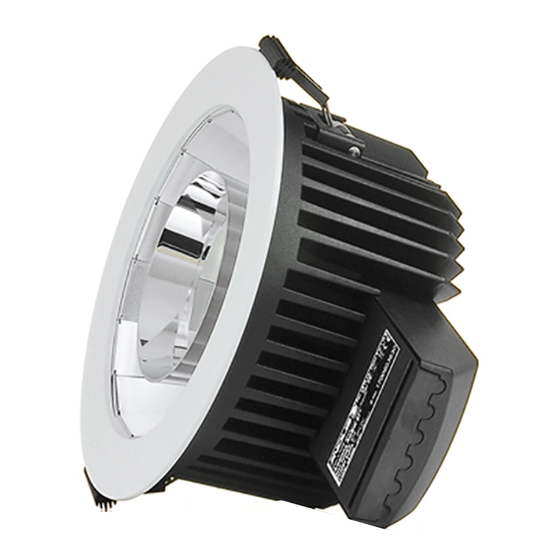

The unit generates colored light by means of high power LEDs. The product was designed for indoor use only.
1. Attention
The unit must be installed by a qualified electrician in accordance with all
national and local electrical and construction codes and regulations.
Avoid looking directly into the LED light beam at close range!
Do not install the unit near highly inflammable liquids or materials.
Do not allow anything to rest on the unit.
Do not use the unit near high humidity or water or expose to rain.
Do not install the unit near an open flame.
Do not install the unit in dirty,dusty or badly ventilated location.
Sufficient air accessing to the housing of the unit has to be ensured,
there must not be any heat or anti-noise insulation within a 0.6m x 0.6m
area around the unit (non-IC rated fixture).
Alvays switch off power suply of the unit before connecting or disconnecting the unit
2. Installation

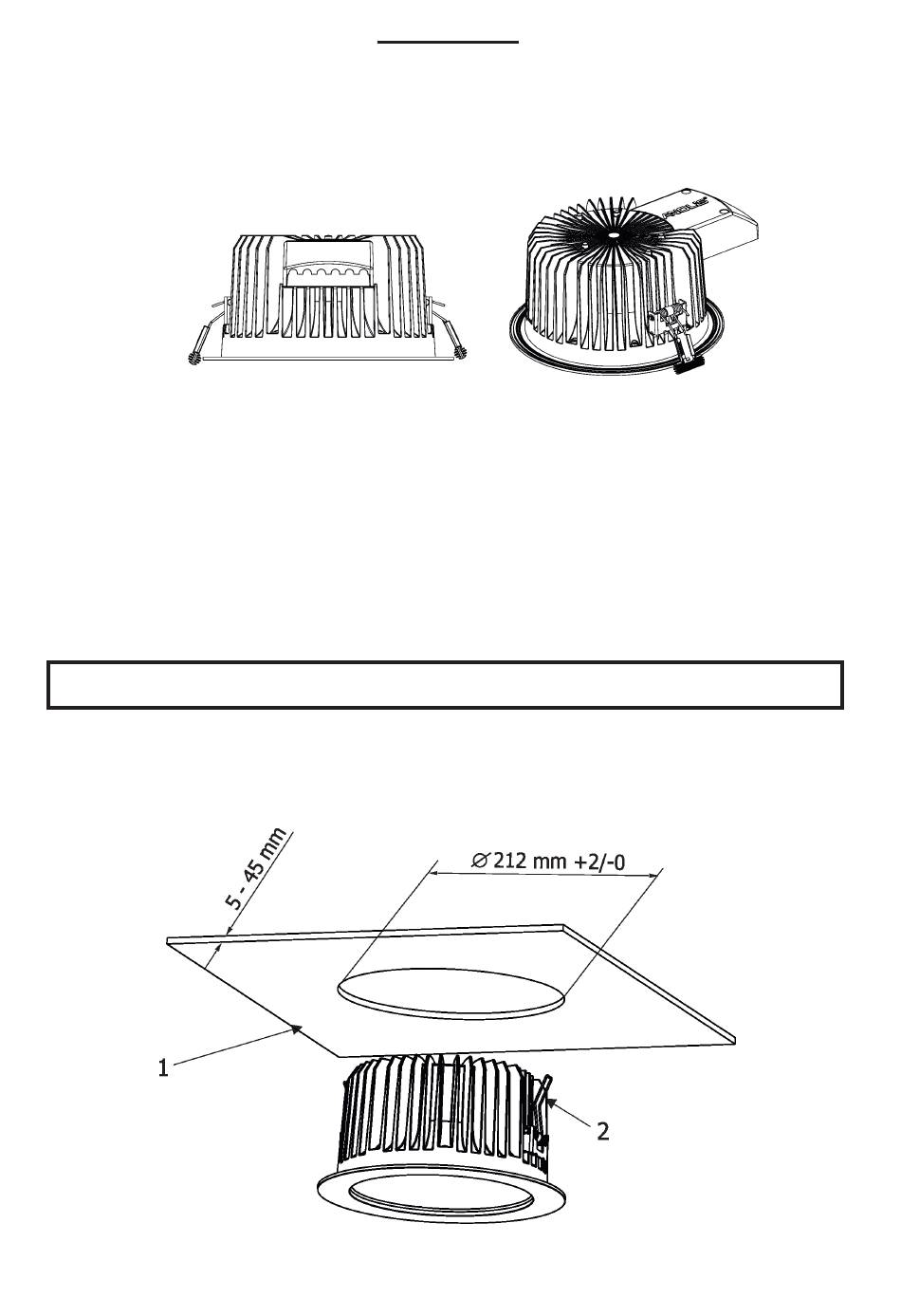

1. Prepare a circular opening in the lower ceiling (1) as shown in the picture below.
2. Insert the Ambiane unit into the opening. Fasten the fixture by means of two spring fasteners (2) to the opening
User manual
Ambiane TW
1
Advertisement
Table of Contents
Related Manuals for Robe Ambiane
Summary of Contents for Robe Ambiane
- Page 1 User manual Ambiane TW The unit generates colored light by means of high power LEDs. The product was designed for indoor use only. 1. Attention The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. Avoid looking directly into the LED light beam at close range! Do not install the unit near highly inflammable liquids or materials.
- Page 2 To connect needed cables to the fixture, unscrew two screws (4) from the plastic cover (3). The connection blocks (5) have the following wiring: The primary power input serves for a standard power (e.g. ArcPower for Ambiane). The secondary power input serves for a backup power( in case that primary power failed). If both power inputs are under voltage, the primary power has a priority and the secondary power is disabled. In case of primary power loss, the secondary power is enabled. If the fixture is supplied via the secondary power, the light output of the fixture is a white colour (3200K) and its light intensity can be set by a trimmer.
- Page 3 DIP 10 - if switched to ON=test light (the fixture lights at 3200K) DIP 11 - has to be switched to OFF position to receive DMX 512 or DALI DIP 12 - change from OFF to ON position switches the fixture to the update mode. DMX control The DMX start address, is the first channel used to receive instructions from the DMX controller. The address may be any channel from 1 to 510. DMX address can be set either by DIP switch or by RDM. DMX address set by RDM overwrites address set by DIP switch and vice versa. DIP 11 has to be set in OFF position. DALI commands have priority to DMX operation. Example of DMX addresses: DALI control Addressing of the fixture is made by means of an external DALI controller. The external DALI controller has to send activating command (1=ON) to start control of the fixture (and deactivating command (0=OFF) to stop control of the fixture). DIP 11 has to be set in OFF position. DALI commands have priority to DMX operation. 4.RDM This fixture supports RDM operation. RDM (Remote Device Management) is a bi-directional communication protocol for use in DMX512 control systems, it is the new open standard for DMX512 device configuration and status monitoring. RDM allows you to set DMX address and readout software version of the fixture. . Anti-glare ring installation Insert the anti-glare ring (1) into the fixture until three locks (2) snap into slots (3).
-
Page 4: Technical Specifications
RDM compatible DMX channels: Typical Lumen maintenance: 70%@ 50,000 hours Led life expectancy: minimum 50,000 hours Operating ambient temp. range: -20°C/+45°C (-4F/+113F) Operating temperature: 75°C @ Ambient +35°C (167°F @ Ambient +95°F) Total heat dissipation: 136 BTU/h (calculated) Cooling : convection Total heat dissipation: 136 BTU/h (calculated) Housing: alluminium Weight: 1.8 kg Installation method: via two spring fasteners Protection factor: IP 20 IC rating: non-IC rated Power/DMX/DALI connection: screw connection block Degson DG306-5.0-02P (Wire range: 22-14AWG(UL), 1.5mm (IEC)) 8. Optional Accessories ArcPower for Ambiane (P/N 10063035) Anti-Glare Ring (P/N 10980386) Diffuser Glass Frosted (P/N 10980387) Adapter Ring (230-255mm ) (P/N 10980388) 9. Maintenance Keep the fixture clean, especially light source and the ribbed housing. - Page 5 10.Dimensions mm [inch] Version 2.0 June 23, 2017 Specifications are subject to change without notice. Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
