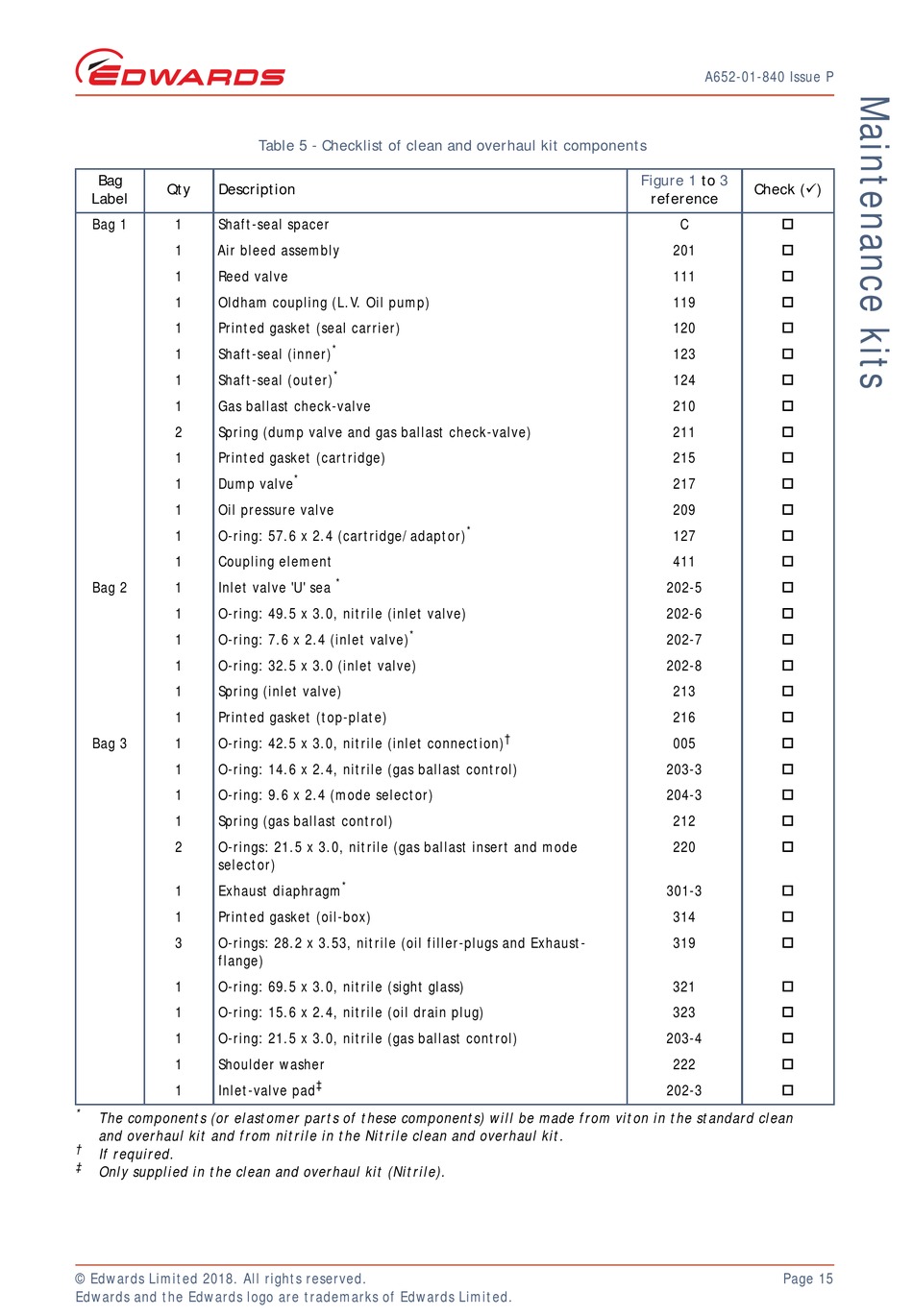

Checklist Of Clean And Overhaul Kit Components - Edwards RV3 Parts And Maintenance Manual

Bag
Qty Description
Label
Bag 1 1 Shaft-seal spacer
1 Air bleed assembly
1 Reed valve
1 Oldham coupling (L.V. Oil pump)
1 Printed gasket (seal carrier)
1 Shaft-seal (inner)
1 Shaft-seal (outer)
1 Gas ballast check-valve
2 Spring (dump valve and gas ballast check-valve)
1 Printed gasket (cartridge)
1 Dump valve
1 Oil pressure valve
1 O-ring: 57.6 x 2.4 (cartridge/adaptor)
1 Coupling element
Bag 2 1 Inlet valve 'U' sea
1 O-ring: 49.5 x 3.0, nitrile (inlet valve)
1 O-ring: 7.6 x 2.4 (inlet valve)
1 O-ring: 32.5 x 3.0 (inlet valve)
1 Spring (inlet valve)
1 Printed gasket (top-plate)
Bag 3 1 O-ring: 42.5 x 3.0, nitrile (inlet connection)
1 O-ring: 14.6 x 2.4, nitrile (gas ballast control)
1 O-ring: 9.6 x 2.4 (mode selector)
1 Spring (gas ballast control)
2 O-rings: 21.5 x 3.0, nitrile (gas ballast insert and mode
selector)
1 Exhaust diaphragm
1 Printed gasket (oil-box)
3 O-rings: 28.2 x 3.53, nitrile (oil filler-plugs and Exhaust-
flange)
1 O-ring: 69.5 x 3.0, nitrile (sight glass)
1 O-ring: 15.6 x 2.4, nitrile (oil drain plug)
1 O-ring: 21.5 x 3.0, nitrile (gas ballast control)
1 Shoulder washer
1 Inlet-valve pad
*
The components (or elastomer parts of these components) will be made from viton in the standard clean
and overhaul kit and from nitrile in the Nitrile clean and overhaul kit.
†
If required.
‡
Only supplied in the clean and overhaul kit (Nitrile).
