INFORMATION HABILLAGE
FABRIKANTEN INFORMATION
MANUFACTURING INFORMATION

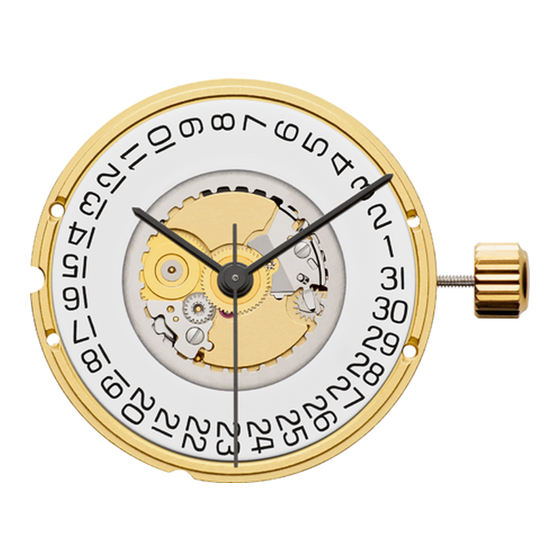

11 ½´´´ ETA 955.112
Spécifications techniques
1. Forme et genre
Calibre rond
Affichage analogique
Quartz:
Pierres:
2. Dimensions en mm
Diamètre total
Diamètre d'encageage
Hauteur totale du mouvement
Hauteur sur pile
3. Fonctions
1
Affichage par aiguilles:
heures, minutes, secondes.
Quantième dans le guichet.
Circuit économiseur de courant (asservis-
sement et hachage).
Indicateur de fin de vie de pile (EOL).
4. Corrections
Tige de mise à l'heure à 3 positions:
Tige de mise à l'heure:
Pos. 1 Position de marche (neutre).
Pos. 2 Correction rapide de la date.
Pos. 3 Mise à l'heure, arrêt de la se-
conde.
Technische Spezifikationen
1. Form und Art
11 ½´´´
Rundes Kaliber
Analoganzeige
32'768 Hz
Quarz:
7
Steine:
2. Abmessungen in mm
26,20
Gesamtdurchmesser
25,60
Gehäusepassungsdurchmesser
2,50
Gesamtwerkhöhe
2,57
Höhe auf Batterie
3. Funktionen
2
3
Anzeige durch Zeiger:
Stunden, Minuten, Sekunden.
Datum im Fenster.
Stromsparende Motorsteuerung (Asservis-
sement und Hachage).
Batterie–End–Anzeige (EOL).
4. Korrekturen
Zeigerstellwelle mit 3 Stellungen:
Zeigerstellwelle:
Pos. 1 Gangstellung (neutral).
Pos. 2 Schnellkorrektur des Datums.
Pos. 3 Zeigerstellung, Stop der Sekunde.
ETA SA Manufacture Horlogère Suisse
SC Product Communication | Bahnhofstrasse 9 | 2540 Grenchen | Switzerland
Phone +41 (0)32 655 71 11 | Fax +41 (0)32 655 71 74 | contact@eta.ch | www.eta.ch
IH 955112 FDE 489263 08
Technical specifications
1. Shape and type
11 ½´´´
Round caliber
Analog display
32'768 Hz
Quartz:
7
Jewels:
2. Dimensions in mm
26,20
Overall diameter
25,60
Case fitting diameter
2,50
Overall movement height
2,57
Height on battery
3. Functions
1
2
3
Display by means of hands:
hours, minutes, seconds.
Date in window.
Integrated circuit with current saving drive
system (asservissement and chopped mo-
tor pulses).
End–of–life display (EOL).
4. Corrections
Handsetting stem with 3 positions:
Handsetting stem:
Pos. 1 Running position (neutral).
Pos. 2 Quick correction of date.
Pos. 3 Time setting, stopping of second.
26.04.2012
11 ½´´´
32'768 Hz
7
26.20
25.60
2.50
2.57
1
2
3
