6.3

Board configuration with ADDIREG

The ADDIREG registration program is a 32-bit program for Windows NT 4.0/ 95.
The user can registrate all hardware information necessary to operate the
ADDI-DATA PC boards.

6.3.1 Program description

IMPORTANT!
Insert the ADDI-DATA boards to be registrated before starting the
ADDIREG program.
If the board is not inserted, the user cannot test the registration.
Once the program is called up, the following dialog box appears.
Table:
The table in the middle lists the registrated boards and their respective parameters.
Board name:
Names of the different registrated boards (e.g.: APCI-3120).
When you start the program for the first time, no board is registrated in this table.
Base address:
Selected base address of the board.
PCI slot:
Used PCI slot. If the board is no PCI board, the message „NO" is displayed.
Interrupt:
Used interrupt of the board. If the board uses no interrupt, the message „Not
available" is displayed.
DMA:
Indicates the selected DMA channel or „Not available" if the board uses no DMA.
24

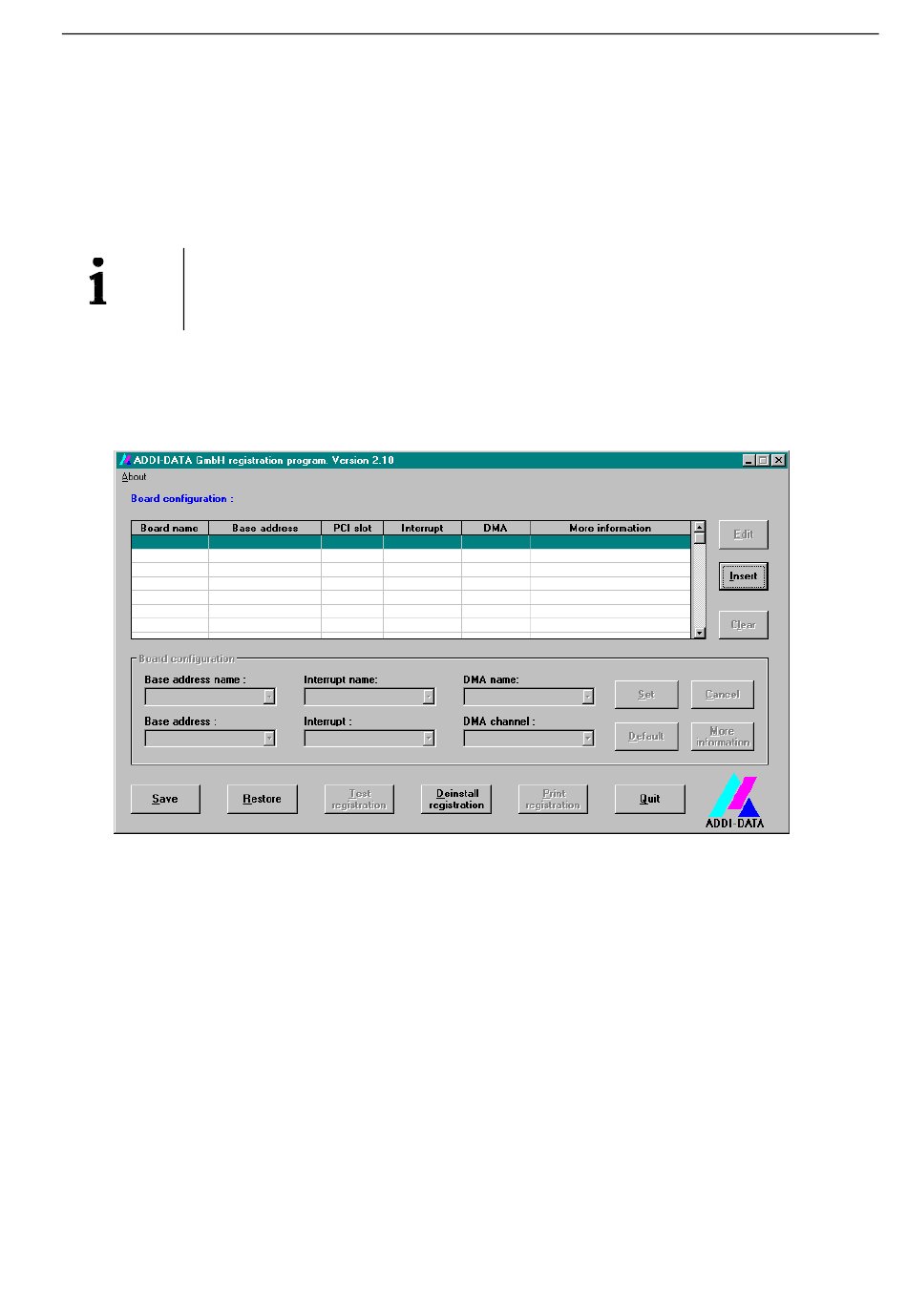

Fig. 6-5: ADDIREG registration program
