5.2

Jumper settings

5.2.1 Jumper location and settings at delivery

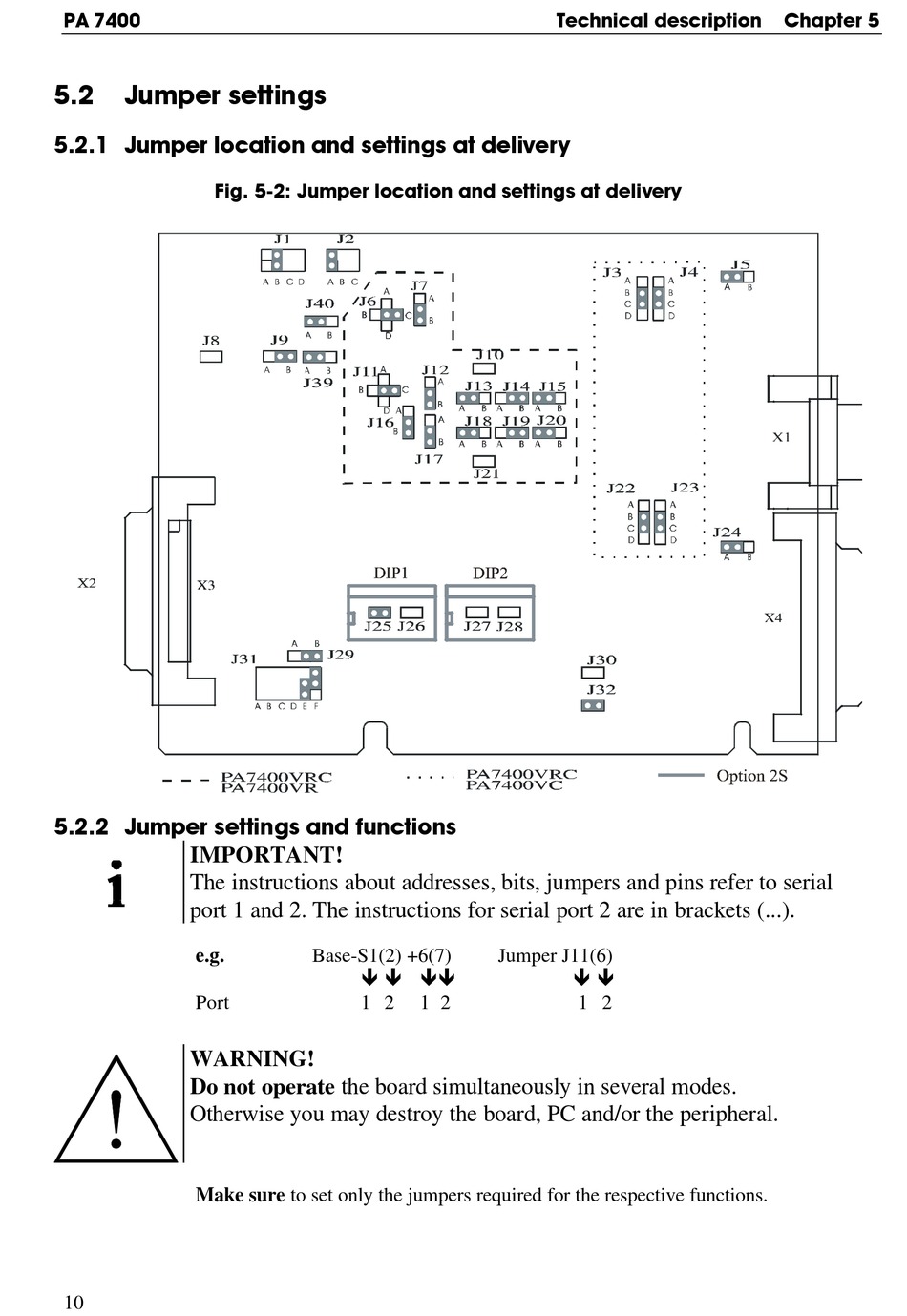

Fig. 5-2: Jumper location and settings at delivery

5.2.2 Jumper settings and functions

IMPORTANT!
The instructions about addresses, bits, jumpers and pins refer to serial
port 1 and 2. The instructions for serial port 2 are in brackets (...).
e.g.
Port
WARNING!
Do not operate the board simultaneously in several modes.
Otherwise you may destroy the board, PC and/or the peripheral.
Make sure to set only the jumpers required for the respective functions.
10
Base-S1(2) +6(7)
ê ê êê
1 2 1 2
Technical description
Jumper J11(6)
ê ê
1 2
