Fig. 5-5: Block Of Dip Switches Dip2; Fig. 5-6: Block Of Dip Switches Dip1; Table 5-14: Setting The Base Address For The Serial Port 1 (Dip2- 0390H); Table 5-15: Setting The Base Address For The Serial Port 2 (Dip1- 0300H) - Addi-Data ADDICOM PA 7400 Series Technical Description

Technical description

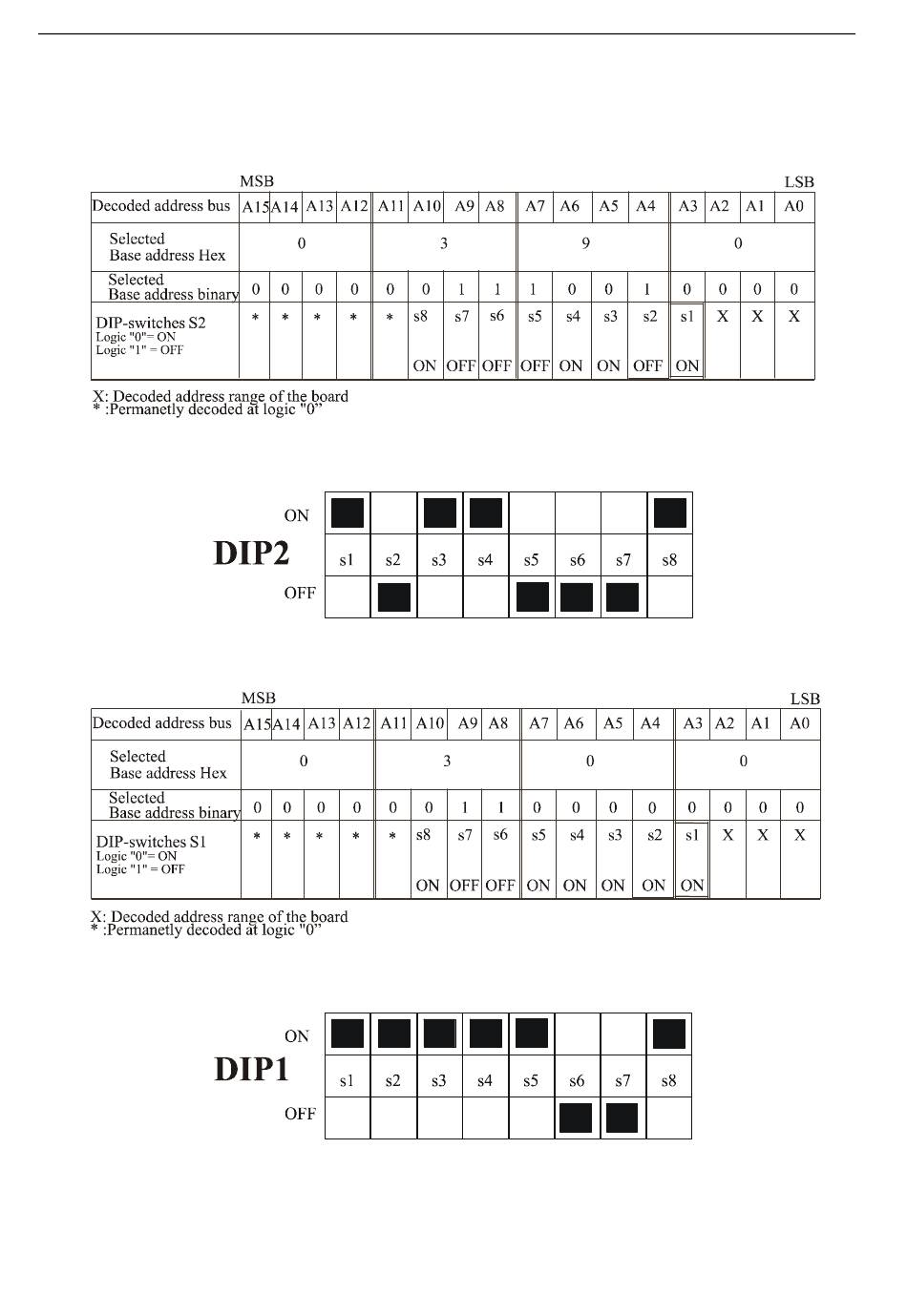

See the tables 5-14 and 5-15: Decoding examples for the serial ports

Table 5-14: Setting the base address for the serial port 1 (DIP2- 0390H)

Table 5-15: Setting the base address for the serial port 2 (DIP1- 0300H)

Chapter 5

Fig. 5-5: Block of DIP switches DIP2

Fig. 5-6: Block of DIP switches DIP1
