TECHNICAL DATA

4.1

Electromagnetic compatibility

The board has been subjected to EMC tests in an accredited laboratory in
accordance with the norms EN50082-2, EN55011, EN55022.
The board complies with the limit values set by the norm EN50082-2 as follows:
ESD ............................................................... 4 kV
Fields .............................................................. 10 V/m
Burst .............................................................. 4 kV
Conducted radio interferences ......................... 10 V
WARNING!
The EMC tests have been carried out in a specific appliance
configuration. We guarantee these limit values only in this
configuration
Consider the following aspects:
- your test program must be able to detect operation errors.
- your system must be set up so that you can find out what caused errors.
4.2

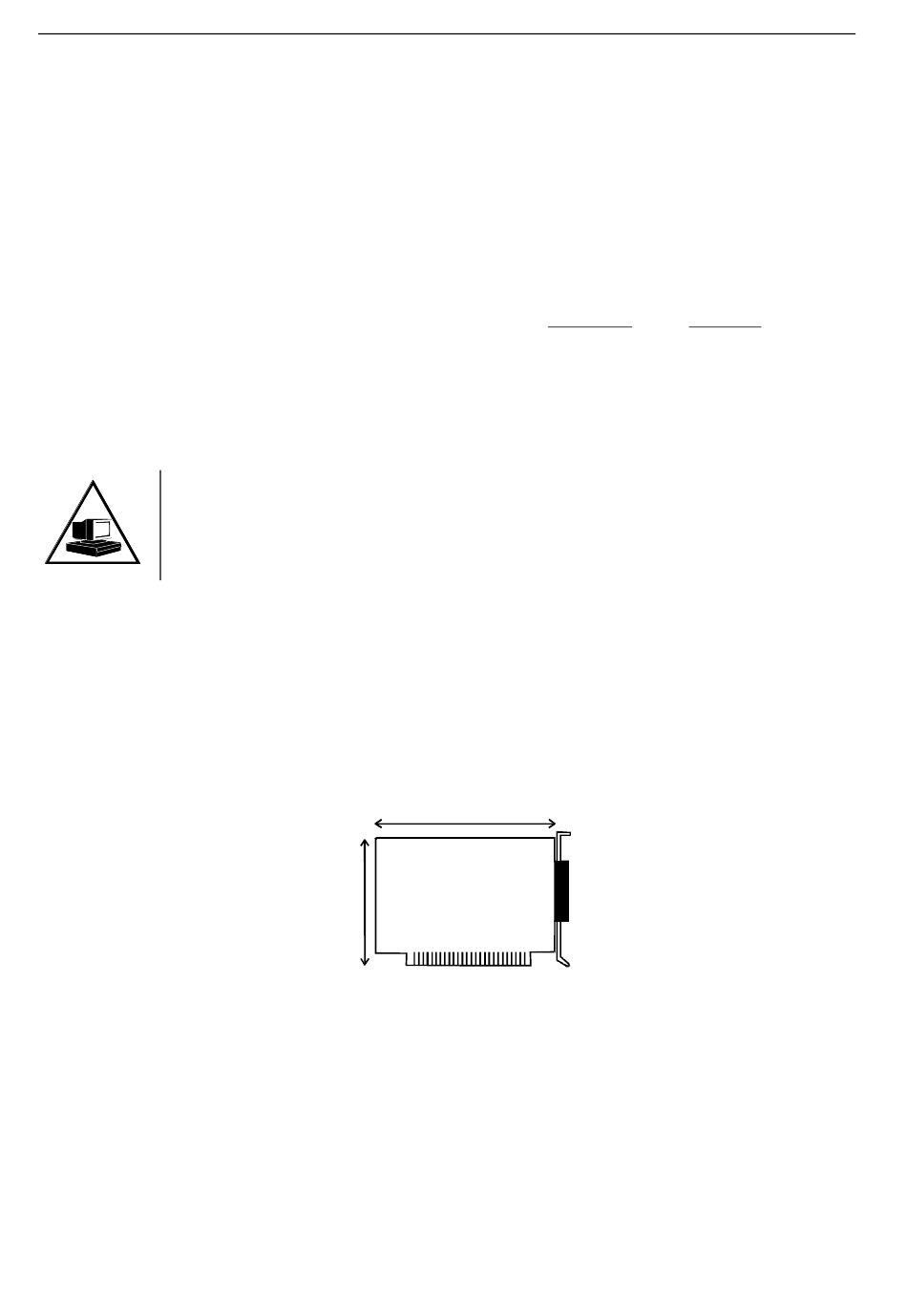

Physical set-up of the board

The board is assembled on a 4- layer printed circuit card.
Installation in:
Connectors:
Chapter 4
156 mm
114 mm
True value
AT slot
Serial port 1: 25-pin SUB-D male connector
Serial port 2: 9-pin SUB-D male connector
Parallel port 1: 26-pin male connector
PA 7400
Set value
4 kV
10 V/m
2 kV
10 V
