Inserting The Board; Opening The Pc; Selecting A Free Slot; Fig. 6-1: Types Of Slots - Addi-Data ADDICOM PA 7400 Series Technical Description

Technical description
6.1

Inserting the board

IMPORTANT!
Do observe the safety instructions.

6.1.1 Opening the PC

•
Switch off your PC and all the units connected to the PC.
•
Pull the PC mains plug from the socket.

6.1.2 Selecting a free slot

in which type of slot to insert the board.
according to the instructions of the PC manufacturer.
Keep the back cover. You will need it if you remove the board.
3. Discharge yourself from electrostatic charges
4. Take the board out of its protective blister pack
Chapter 6
•
Open your PC as described in the manual of the PC manufacturer.

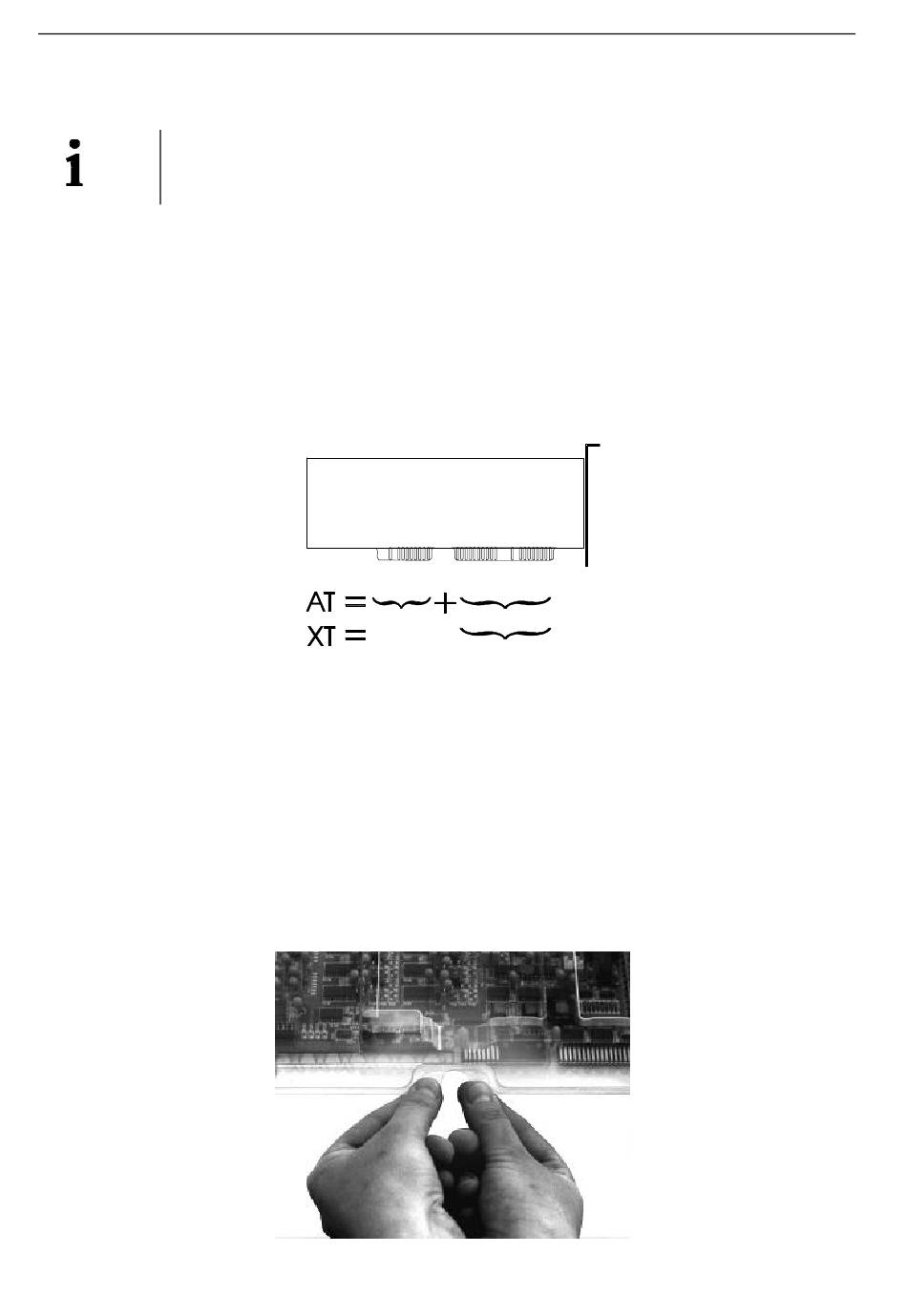

Fig. 6-1: Types of slots

See in the PC manual which types of slots are free.
2. Remove the back cover of the selected slot

Fig. 6-2: Opening the protective blister pack

1. Decide
PA 7400
21
