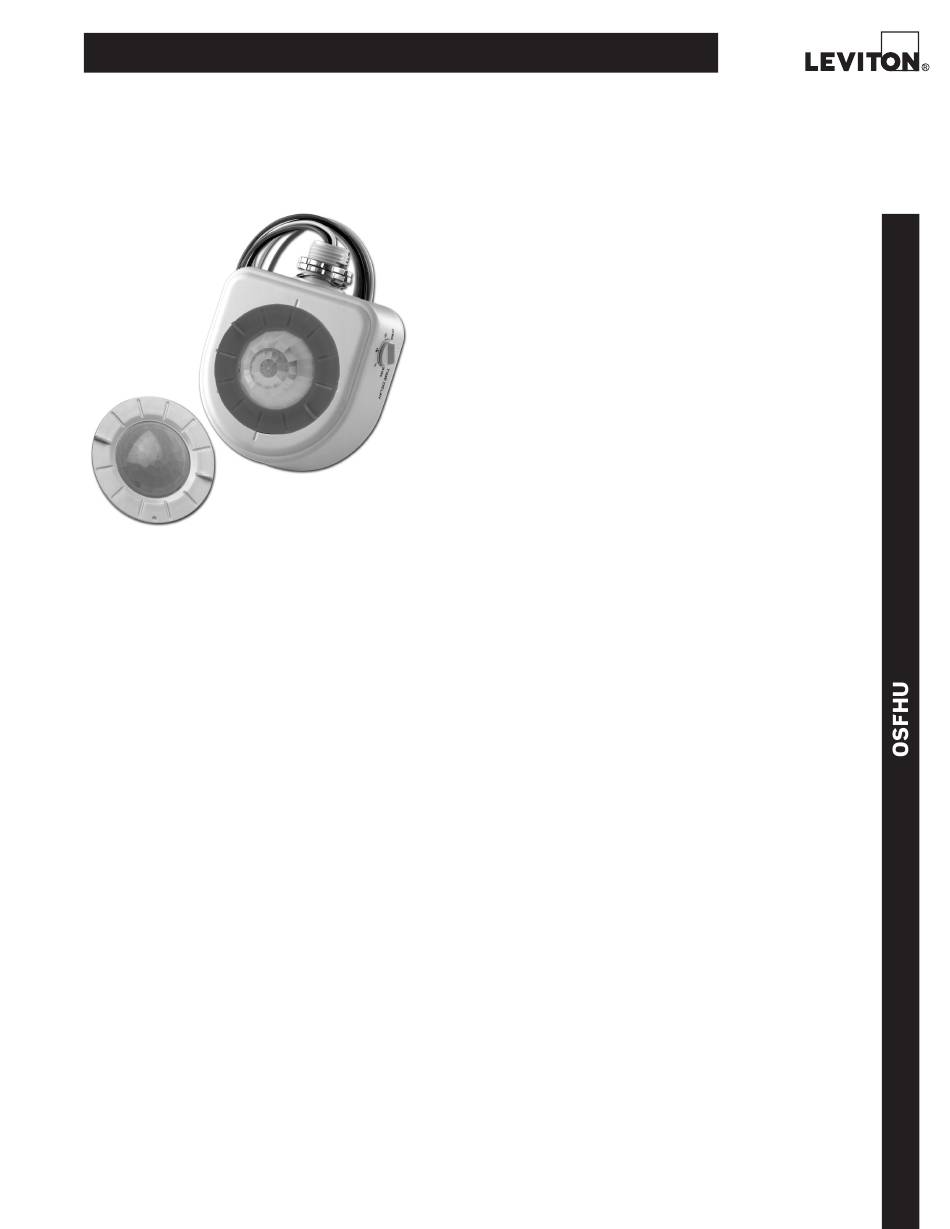

OSFHU Passive Infrared Fixture Mount
High-Bay Occupancy Sensor
OSFHU
BASIC OPERATION

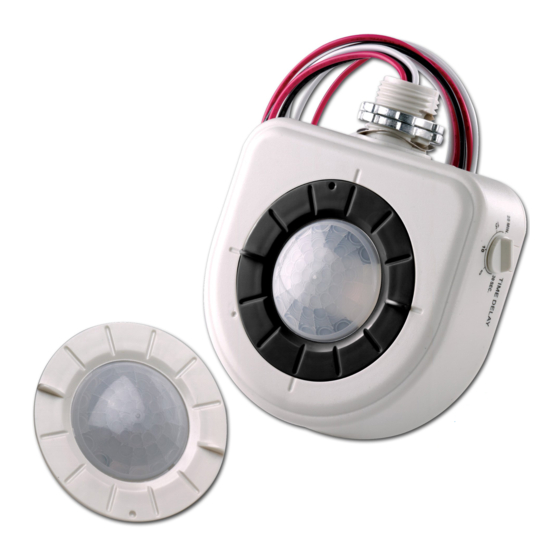

The OSFHU Passive Infrared (PIR) Fixture Mount
High-Bay Occupancy Sensor is specifically
designed for high mounted areas such as
warehouses, manufacturing and other high
ceiling applications. The OSFHU installs directly
to an industrial fluorescent luminaire or an
electrical junction box. It is a self-contained
sensor and relay that turns individual light
fixtures ON or OFF based on occupancy
in the detection zone. It comes with two
interchangeable lenses for use in either a
360° high-bay or 360° low-bay general area
or a mask for aisle way. The OSFHU provides
reliable coverage up to 40 ft. mounting heights.
The OSFHU is also available in a model for cold
storage applications with temperatures as low
as -40° F (-40°C).
To improve the field-of-view for deep body
fixtures, a separate offset adapter accessory
(OSFLO or OSFOA) can be used to position the
sensor below the fixture body. The adapter
simply snaps into a 1/2" knockout on the end of
the industrial fixture to attach the sensor. The
OSFHU and OSFLO/OSFOA provides the most
labor savings available with quick snap, 21" wire
leads, and no power required to configure.
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tech line 800-824-3005 fax 800-832-9538
©2017 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Passive Infrared Technology is used to sense
occupancy by comparing the infrared energy
from an object in motion and the background
space. PIR sensors minimize false ONs from
background environmental conditions such as
air movement to provide reliable detection of
line-of-sight motion.
INSTALLATION
The OSFHU mounts directly to an industrial
fluorescent fixture or an electrical junction box
through a standard 1/2" knockout using the
two provided lock-nuts. Wiring is connected
inside the fixture body. For deep body fixtures,
the OSFLO or OSFOA accessory installs into the
fixture 1/2" knockout using the provided lock-
nut. The OSFHU sensor is installed in one of
three, 1/2" punch-outs positioning the OSFHU at
the correct field-of-view position flush or below
the fixture reflector assembly. When applicable,
wiring is routed through the OSFLO or OSFOA to
the fixture body for wiring.
