Leviton OSFHD-AW Series Product Data

PRODUCT DATA
PIR Fixture Mount High Bay Sensor
with Integrated Light Sensor and
Three Interchangeable Lenses
Available as a dual relay, alternating relay, low voltage or cold storage model

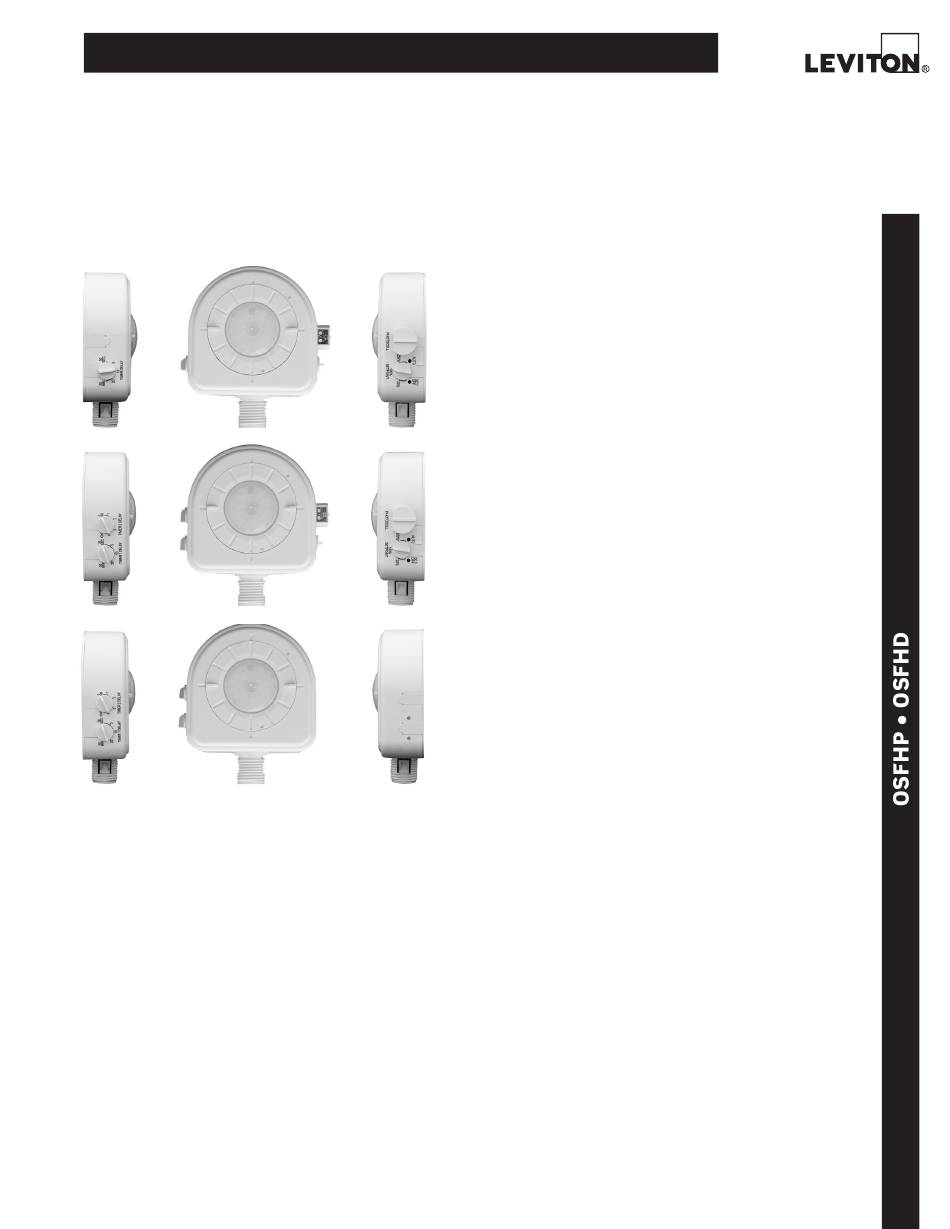

OSFHP-IxW
OSFHD-xTW
with Dual Relay
OSFHD-xAW with
Alternating Relay
• Integrated rotating adjustable light sensor
• 24 hour auto-calibration for set-it and forget-it
• Dual relays for bi-level control
• Alternating relay software for increased lamp life
• Interchangeable 360° high bay, low bay and aisle
lens included
• Adjustable time delay (no power required)
• 42" pre-stripped color-coded wire leads
• Quicksnap feature for easy installation
• H.I.S. (High Inrush Stability) Technology
- Zero crossing circuitry
- Robust mechanical latching relay
• Non-volatile memory, device returns to its last state
during power interruption
• LED indicator light blinks when sensor detects
motion, visible from long distance
Leviton Mfg. Co., Inc. Lighting Management Systems
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538 www.leviton.com/lms
© 2010 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
BASIC OPERATION
Whether factory or field installed, new installation or
retrofit, Leviton fixture mounted sensors provide fast,
easy installation and immediate energy savings by
automatically activating lighting only during periods of
occupancy. Reliable passive infrared (PIR) technology
detects occupancy, and the variable time delay - up
to 30 minutes - is user accessible without power, tools
or disassembly, and allows the ideal setting based on
application needs. Included with the sensor are lenses
for high-bay, low-bay and aisle mounting, allowing one
unit to cover a variety of applications. The innovative
Autocal feature performs an automatic daylight level
calibration. Once calibrated, the sensor requires no
further adjustment and immediately enters daylight
harvesting mode, actively switching the connected
fixture load ON and OFF in response to occupancy
and available natural light maximizing energy savings
through efficient light harvesting.
• The OSFHP includes an active daylight sensor and
controls a single load (also available in a 24V Low
Voltage Model)
• The OSFHD-xTW features dual relays with independent
time delay circuits, in addition to active daylight sen-
sor
• The OSFHD-xAW features dual alternating relays
(daylight sensor not included on these models), to
maintain optimal lamp life in fixtures designed to
keep a portion of the lamps on at all times
Cold storage and 480V models are available.
INSTALLATION
The OSFHP and OSFHD installs directly to an industrial
fluorescent fixture or an electrical junction box through
a standard 1/2" knockout using the provided lock-nut.
Wiring is connected inside the fixture body. For deep
body fixtures, the OSFLO or OSFOA accessory installs
into the fixture 1/2" knockout using the provided lock-
nut. The OSFHP and OSFHD sensor is installed in one
of three, 1/2" knockouts positioning the OSFHU at the
correct field-of-view position flush or below the fixture
reflector assembly. Wiring is routed through the OSFLO
or OSFOA to the fixture body for wiring.
