KV PUSH EU Owner's Manual
KV VACUUM Owner's Manual
KV601EU, KV650HEU, KV601FBEU, KV650HFBEU
ON BOARD
OPTIONAL
VACUUM
FELT/MESH
HOSE KIT
DEBRIS BAG
4" x 7.5'
For use in leaves
(102mm x
and grass in dusty
2.13m)
conditions.
For
vacuuming in
hard to reach
P/N 891126 FELT
areas.
BAG
P/N 891132
P/N 891125
MESH BAG
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
KV PUSH EU

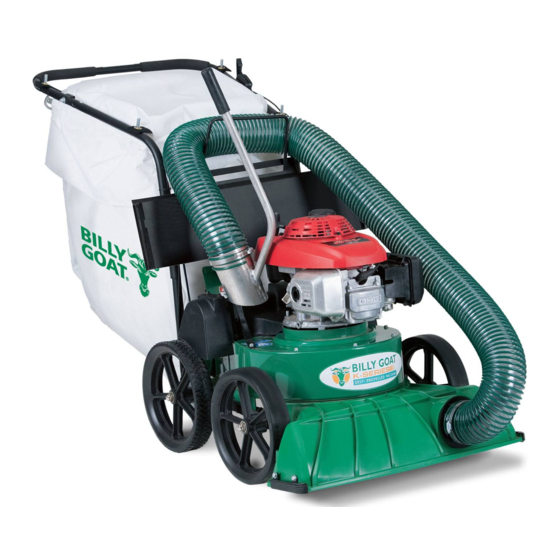

Image shown with optional accessories
Accessories
NOZZLE
CASTER KIT
WEAR
GUARD KIT
For use in
To allow for
increasing the
easy rolling and
life of your
maneuverability
nozzle by
on smooth
protecting it
surfaces.
from damage
P/N 891127
P/N 891128
1
SHREDDER
KV LINER KIT
KIT
Shreds
Increases the
leaves,
life of the
reducing total
housing by
volume.
protecting it from
damage.
P/N 891153
P/N 891134
PROTECTIVE
COVER
Protects the
machine from
the environment
when not in use.
P/N 891137
891505_C_HI
