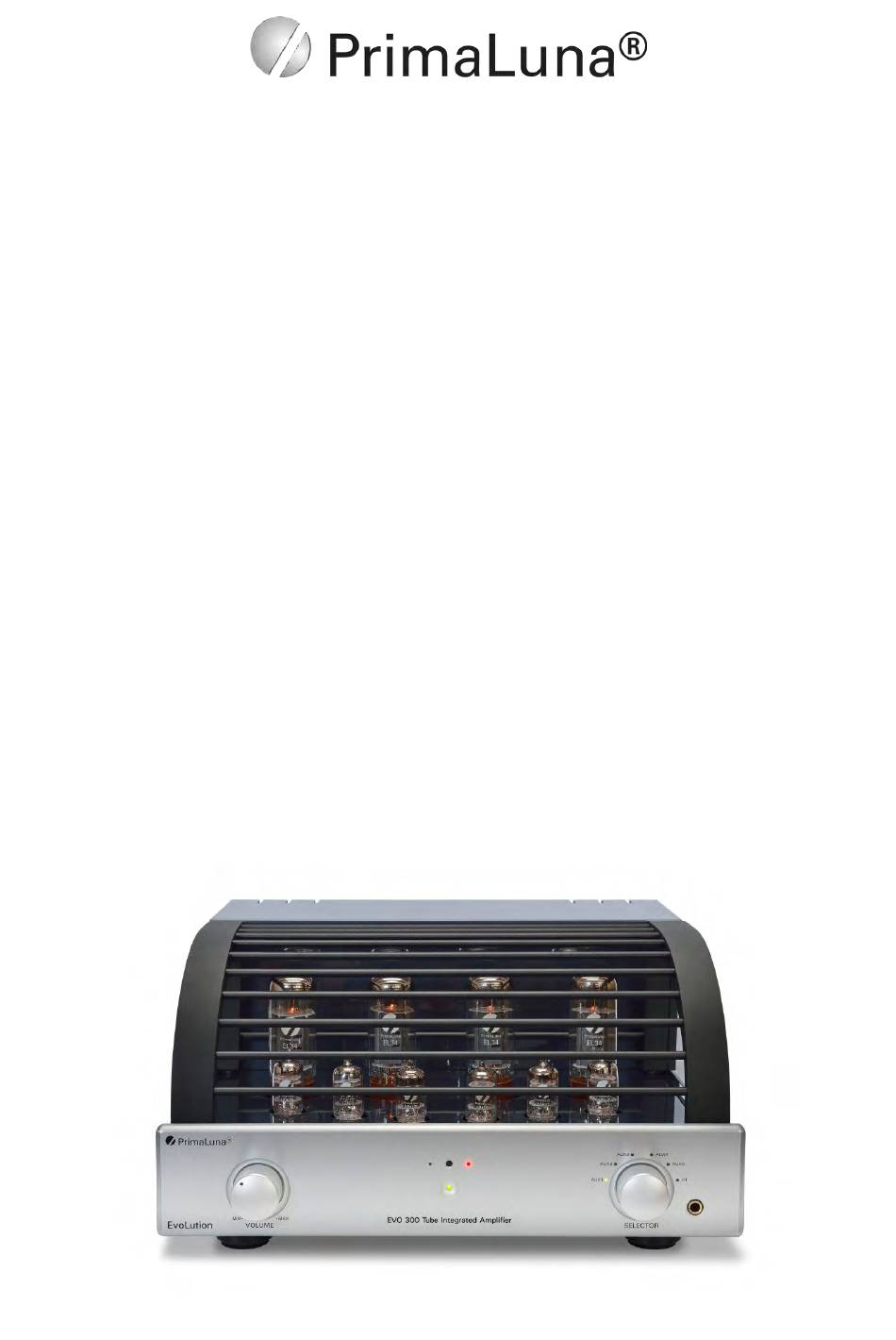

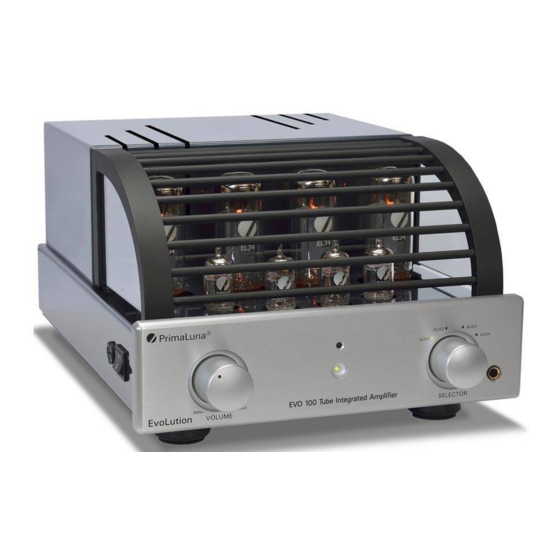

  • Page 1 EvoLution  Series     Tube  Integrated  Amplifiers     EVO  100-­1   EVO  200-­1   EVO  300-­1   EVO  400-­1     Version  2.2  –  Feb  19,  2019    ...
  • Page 2   Troubleshooting   14     Warranty  Information   15     PrimaLuna  Name  &  More   16           Copyright  Durob  Audio  BV  –  2019.  All  rights  reserved.   Reproduction  in  whole  or  part  of  text,  logo,  graphics  or  schematics  is  strictly  forbidden  without  ...
  • Page 3  tube  products.  The  designers  and  builders  of  the  PrimaLuna  equipment  all  have  a  long  history  in  high-­end  audio.   We  feel  we  have  shown  with  PrimaLuna  that  we  are  able  to  offer  a  range  of  affordable  yet  elegant  audio  instruments  that  can  ...
  • Page 4: Specifications

        All  PrimaLuna  products  come  with  PrimaLuna  Silver  Label  tubes  which  are  pre-­selected  by  us  following   our  simple  60  out  of  100  rule  (PTS™  -­  Premium  Tube  Selection)  and  as  such,  are  already  “special”  when   compared  to  other  standard  tubes  on  the  market.  ...
  • Page 5     All  PrimaLuna  products  come  with  PrimaLuna  Silver  Label  tubes  which  are  pre-­selected  by  us  following   our  simple  60  out  of  100  rule  (PTS™  -­  Premium  Tube  Selection)  and  as  such,  are  already  “special”  when   compared  to  other  standard  tubes  on  the  market.  ...
  • Page 6     All  PrimaLuna  products  come  with  PrimaLuna  Silver  Label  tubes  which  are  pre-­selected  by  us  following   our  simple  60  out  of  100  rule  (PTS™  -­  Premium  Tube  Selection)  and  as  such,  are  already  “special”  when   compared  to  other  standard  tubes  on  the  market.  ...
  • Page 7     All  PrimaLuna  products  come  with  PrimaLuna  Silver  Label  tubes  which  are  pre-­selected  by  us  following   our  simple  60  out  of  100  rule  (PTS™  -­  Premium  Tube  Selection)  and  as  such,  are  already  “special”  when   compared  to  other  standard  tubes  on  the  market.  ...
  • Page 8   EvoLution  Series           Warning     To  prevent  serious  injury,  electrical  shock  or  fire:     •   Do  not  operate  with  the  bottom  plate  removed.  Keep  away  from  rain  and  moisture.   •   Disconnect  the  ac  mains  cable  before  changing  fuses  and/or  tubes.   •...
  • Page 9  be  used  for  selecting  sources  and  adjusting  volume.  It  also  can  be  used  to  control  functions  on  all   PrimaLuna  CD  players.  The  power  switch  and  auto  bias  fuse  are  located  on  the  left  side  of  the  amp,  just  ...
  • Page 10 EvoLution  Series           Back  Panel  Inputs,  Outputs                                   At  the  rear  panel,  you  will  find  your  inputs,  eventually  the  HT  Pass  Thru,  the  speaker  terminals,  Tape  Out   and  Sub  Out.
  • Page 11 Remote  Controls  are  self-­explanatory.  It  controls   source  selection,  volume  &  mute  functions.  The   remote  will  also  control  the  basic  functions  of  the   PrimaLuna  CD  players.     The  EVO  Tube  Integrated  Amplifier  Remote   Controls  have  two  high-­quality  silicon  rubber  rings  ...
  • Page 12   Owners  of  a  PrimaLuna  EVO  Tube  Integrated  Amplifier  own  also  one  of  the  best  headphone  amps  in  the   world.  And  maybe  the  only  amp  that  lets  you  listen  with  either  the  warmth  of  tubes  at  the  flip  of  a  switch!    ...
  • Page 13  meters  etc.  If  you  swap  tubes,  simply  flip  the  switch  -­with  volume  down!-­  for  optimum  bias!       Should  you  use  the  “wrong”  bias  setting  for  the  tubes  in  use,  don’t  worry.  It  just  means  you  did  not   choose  the  “optimum”  bias  setting  as  decided  by  the  PrimaLuna  design  team.   9  ...
  • Page 14  on  the  back  of  the  PrimaLuna  Tube  Preamplifier  or  Integrated  Amplifier.     When  you  want  to  watch  a  movie,  simply  turn  the  PrimaLuna  Tube  Integrated  Amplifier  on,  and  switch   the  input  to  “HT.”  Attention:  double-­check  if  the  volume  of  your  home  theatre  processor  is  at  ...
  • Page 15  plate.  This  extra  chassis  is  meant  for  installation  of  our  MM  PhonoLogue  board.  It  provides  extra   space,  which  is  in  most  PrimaLuna  EVO  models  not  available  anymore  and  it  provides  an  extra  shielded   environment  for  less  hum  and  noise  mounting  of  the  sensitive  phono  stage.  ...
  • Page 16  and  swap  tubes  in  and  out  twenty  times  a  day.     •   Do  not  leave  the  amplifier  on  24  hours  a  day.  Just  a  short  warm-­up  is  required  for  the  PrimaLuna  to   get  into  its  groove.  ...
  • Page 17 Electronic  Protection     The  PrimaLuna  EVO  Tube  Integrated  Amplifiers  are  equipped  with  Soft  Start™  and  come  with  an   extensive  output  stage  protection  circuitry   with  +B  relay  to  protect  output  transformers,  resistors  and  high   voltage  power  supply  in  case  a  tube  fails.    ...
  • Page 18 EvoLution  Series           Troubleshooting  Tips     No  output.  The  power  switch  is  on,  but  the  power  LED  is  off  and  tubes  do  not  light  up.   •   AC  cable  makes  a  bad  connection  in  the  IEC  connector.  Please  check.   •...
  • Page 19   EvoLution  Series           Warranty  Information     Two-­year  limited  warranty     Six-­month  warranty  on  stock  vacuum  tubes     Terms  &  Conditions     1.  Limited  to  the  original  purchaser.  This  warranty  is  for  the  sole  benefit  of  the  original  purchaser  of   the  covered  product,  and  may  not  be  transferred  to  a  subsequent  owner.
  • Page 20  it  is  ……t     Loris  Arrigucci:  PrimaLuna  u  believe  it  or  not  ...  I  discovered  a  small  town  located  50Km  north  of  Milano   called  Primaluna!!!  Please  get  yourself  a  map  from  Italy.  You'll  find  Primaluna  town  near  the  upper-­right  ...
