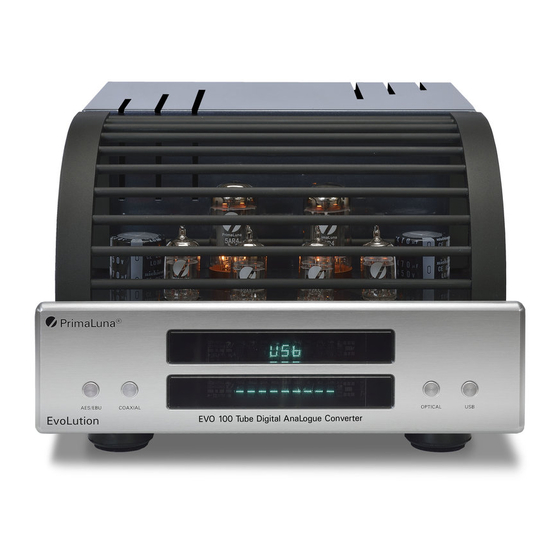

PrimaLuna EvoLution Series Manual
Tube digital analogue converter
Hide thumbs
Also See for EvoLution Series:
- Manual (21 pages) ,
- Quick start manual (17 pages) ,
- Manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for PrimaLuna EvoLution Series
Summary of Contents for PrimaLuna EvoLution Series

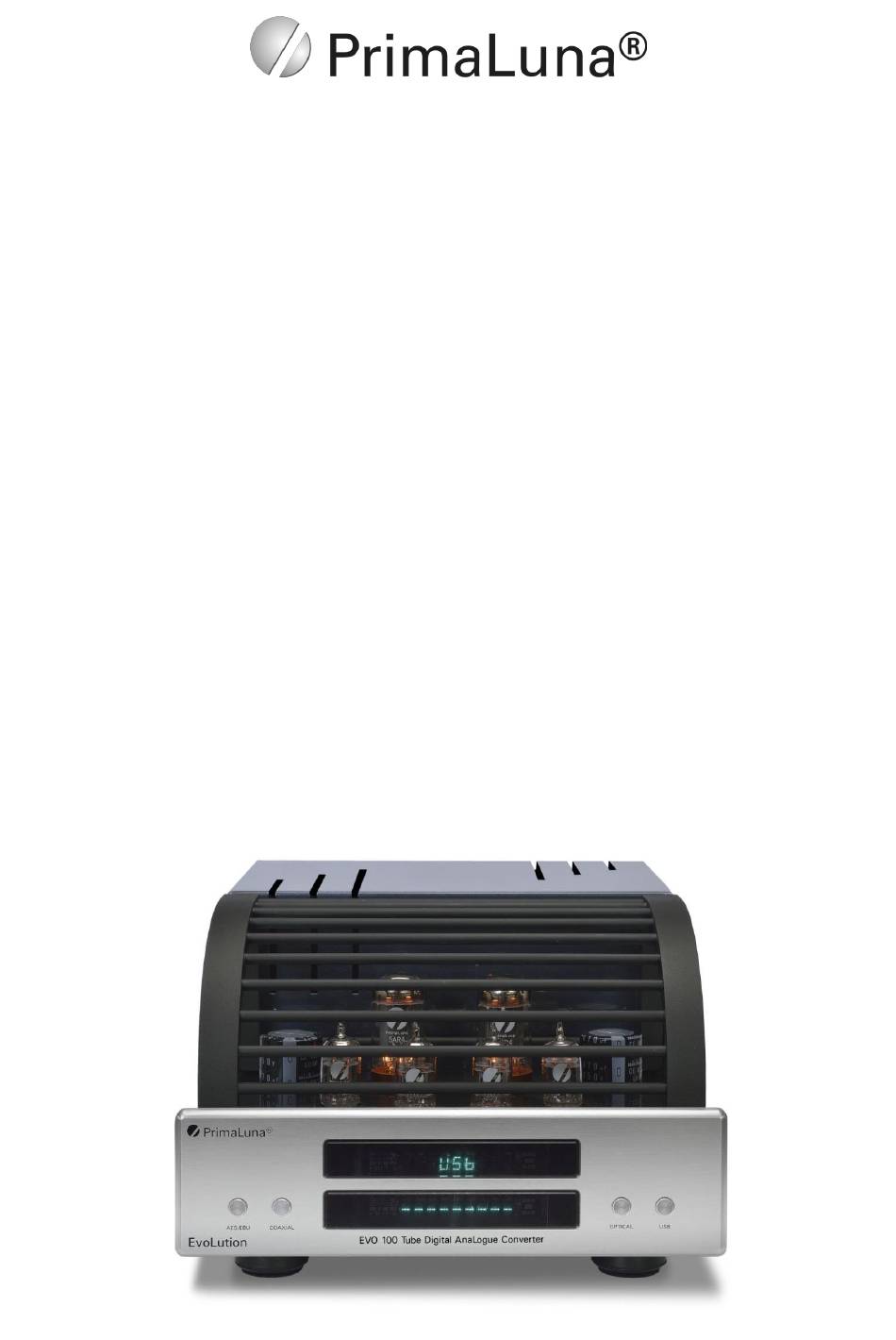

- Page 1 EvoLution Series Tube Digital Analogue Converter EVO 100-9 Version 1.2 – Nov 24, 2019...
-
Page 2: Table Of Contents
Setting SACD Output Mode Technical Specifications Warranty Information PrimaLuna Name & More Copyright Durob Audio BV – 2019. All rights reserved. Reproduction in whole or part of text, logo, graphics or schematics is strictly forbidden without permission, in writing, of Durob Audio BV. -
Page 3: Front Panel Controls
EvoLution Series Front Panel Controls On the front panel you will find the following: 1. AES/EBU input selector 2. COAXIAL input selector 3. OPTICAL input selector 4. USB input selector 5. Top Display (shows the selected input) 6. Bottom Display including Remote Sensor (shows the sample rate) -
Page 4: Rear Panel Inputs & Outputs
EvoLution Series Rear Panel Inputs & Outputs On the rear panel you will find the following: 1. RCA Stereo analog output connectors 2. AES/EBU digital input connector 3. COAXIAL digital input connector 4. OPTICAL digital input connector 5. USB digital input connector... - Page 5 EvoLution Series Left Side Panel On the left side panel, you find the Mains On/Off switch. The related AC fuse you find on the rear. Fuse Protection Warning! Fuses are safety valves. They should always be replaced with the exact same value and type.
-
Page 6: Remote Control
EvoLution Series Remote Control The remote control handles your source selection, as well as mute on/off and the display setting. Attention! Due to increasingly stringent safety measures, it can happen that the remote control arrives without batteries installed. The Remote Control has two high-... - Page 7 EvoLution Series Connections and start-up sequence 1. Digital input connection: Connect your digital source to one of the digital inputs: AES/EBU (use a good quality 110 Ohm cable with XLR connectors) Coax (use a good quality 75 Ohm cable with RCA connectors) ...
-
Page 8: Installing A Windows Driver
AUDIO” at the Device Manager interface of your computer,or sometimes the device name will be displayed as “PrimaLuna EVO 100 Tube Digital Analogue Converter”. Select “XMOS USB AUDIO” or “PrimaLuna EVO 100 Tube Digital Analogue Converter” as an audio output device in your computer playback software. -
Page 9: Using Usb Decoding
EvoLution Series Using USB Decoding on a Windows computer 1. Install the appropriate driver on your computer (see page 8). 2. Connect the USB port of the DAC to the USB port of a computer. 3. Select the USB input from your DAC. -
Page 10: Installing Asio Plugin As An Example
EvoLution Series Installing the ASIO Plugin As An Example 1. Download the latest version of ASIOProxyinstall from www.sourceforge.net. Run the file and also check here for additional set-up information if needed. Click “File” > ”Preferences” > ”Components” > ”Install” in Foobar2000 and install the plugin “foo_input_sacd.fb2k-component”... -
Page 11: Setting The Output Device
EvoLution Series Setting The Output Device Click “output” and select “ASIO: foo_dsd_asio” under “Device” like in the following picture:... -
Page 12: Setting Asio Output Drive
EvoLution Series Setting ASIO Output Driver... -
Page 13: Setting Sacd Output Mode
EvoLution Series Setting SACD Output Mode Click “SACD”, and select “DSD” on “ASIO Driver Mode” like the following picture shows: Click “OK” and the setting should be completed now. -
Page 14: Technical Specifications
EvoLution Series Technical Specifications Digital Input Inputs Specifications 16Bit-32Bit，44.1kHz-192kHz Audio Format DSD64-DSD128（DoP Mode） Windows Support（Driver needed：XMOS-Stereo-USB-Audio-Class2-Driver-30CE_v4.13.0.exe) USB AUDIO MAC OSx Support（Driver unnecessary） Operating System Android No Support No Support（Support with Camera Kit） Operation Mode Asynchronous USB Audio 2.0 Class 16Bit-24Bit，44.1kHz-192kHz Audio Format DSD64（DoP Mode）... -
Page 15: Warranty Information
EvoLution Series Warranty Information Two-year limited warranty Six-month warranty on stock vacuum tubes Terms & Conditions 1. Limited to the original purchaser. This warranty is for the sole benefit of the original purchaser of the covered product, and may not be transferred to a subsequent owner. - Page 16 Dungen" …… etc. That's why I thought of First Moon as a brand name and that's why the logo is how it is …… Loris Arrigucci: PrimaLuna believe it or not ... I discovered a small town located 50Km north of Milano called Primaluna!!! Please get yourself a map from Italy. You'll find Primaluna town near the upper-right corner.
