Summary of Contents for PrimaLuna EvoLution EVO 100-3

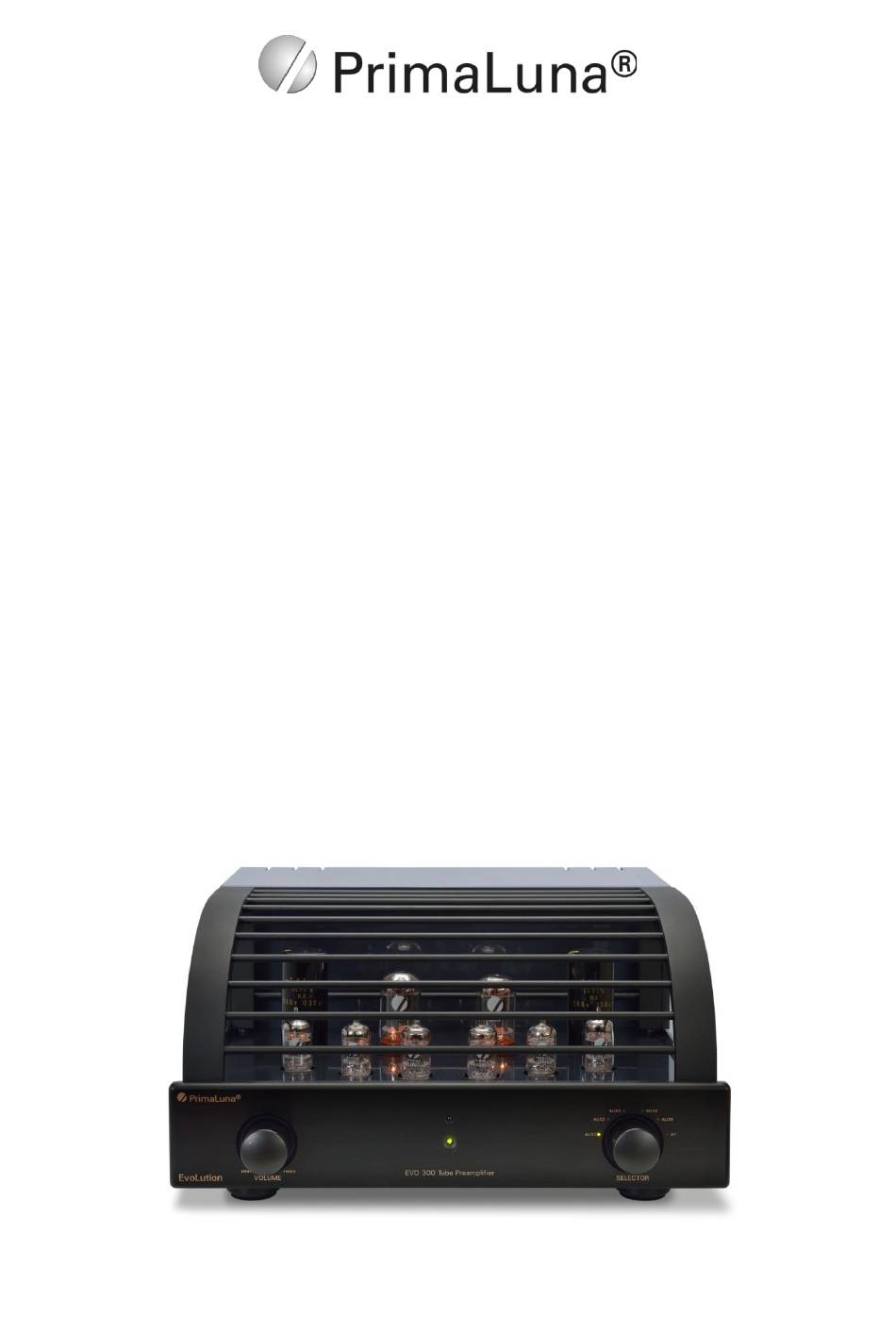

- Page 1 Przedwzmacniacze Lampowe serii EvoLution EVO 100-3 EVO 200-3 EVO 300-3 EVO 400-3...
- Page 2 Rozwiązywanie problemów Notatki Informacje o gwarancji Nazwa PrimaLuna i więcej Copyright Durob audio BV – 2019. Wszelkie prawa zastrzeżone. Powielanie w całości lub części tekstu, logo, grafiki lub schematów jest surowo zabronione bez pozwolenia na piśmie od firmy DUROB audio BV.
- Page 3 1 pair of RCA Tape Out, 2 pairs pre-out (RCA or XLR), depending on the model you own. We hope that our PrimaLuna EVO Tube Preamplifiers will make you want to follow our next steps in expanding our range of products. If you have any questions or comments, don't hesitate to contact us. You can also share...
- Page 4 256 Ohm wyjściowa All PrimaLuna products come with PrimaLuna Silver Label tubes which are pre-selected by us following our simple 60 out of 100 rule (PTS™ - Premium Tube Selection) and as such, are already “special” when compared to other standard tubes on the market.
- Page 5 EvoLution Series Warning To prevent serious injury, electrical shock or fire: • Do not operate with the bottom plate removed. Keep away from rain and moisture. • Disconnect the ac mains cable before changing fuses and/or tubes. • Do not replace fuses with any fuse other than the same type and rating as used by the factory.
- Page 6 PrimaLuna EVO Tube Preamplifier can be used for selecting sources and adjusting volume. It also can be used to control functions on all PrimaLuna CD players. The power switch is located on the left side of the amp, just behind the front plate.
- Page 7 EvoLution Series Back Panel Inputs, Outputs At the rear panel, you will find your inputs, eventually the HT Pass-Thru, Tape Out and preamp outputs.
- Page 8 It controls source selection, volume & mute functions. The remote will also control the basic functions of the PrimaLuna CD players. The EVO Tube Preamplifier Remote Controls have two high-quality silicon rubber rings on each end to protect it from becoming damaged or damaging your furniture.
- Page 9 To integrate your PrimaLuna Tube Preamplifier or Integrated Amplifier into your home theater system, take the front left & right preamp outputs from your A/V processor or receiver and plug them into the “HT” input on the back of the PrimaLuna Tube Preamplifier or Integrated Amplifier.
- Page 10 This extra chassis is meant for installation of our MM PhonoLogue board. It provides extra space, which is in most PrimaLuna EVO models not available anymore and it provides an extra shielded environment for less hum and noise mounting of the sensitive phono stage.
- Page 11 • Do not leave the amplifier on 24 hours a day. Just a short warm-up is required for the PrimaLuna to get into its groove. • Break-in yields improvements. Every tube, when new, needs to be left alone for a little while.
- Page 12 EvoLution Series Fuse Protection Warning! Fuses are safety valves. They should always be replaced with the exact same value and type. Never attempt to check or replace a fuse while the amp is plugged in. Turn it off and unplug the AC cord before continuing. Wait 10 minutes to let tubes cool down and the circuit to fully discharge.
- Page 13 EvoLution Series Troubleshooting Tips No output. The power switch is on, but the power LED is off and tubes do not light up. • AC cable makes a bad connection in the IEC connector. Please check. • Mains fuse is broken. Please check. •...
- Page 14 EvoLution Series Notes...
- Page 15 EvoLution Series Warranty Information Two-year limited warranty Six-month warranty on stock vacuum tubes Terms & Conditions 1. Limited to the original purchaser. This warranty is for the sole benefit of the original purchaser of the covered product, and may not be transferred to a subsequent owner. 2.
- Page 16 If you wish to comment on your PrimaLuna EVO tube product, please do. If you want to send us a review of your experience with the amplifier, you are more than welcome to. If you want to discuss...
