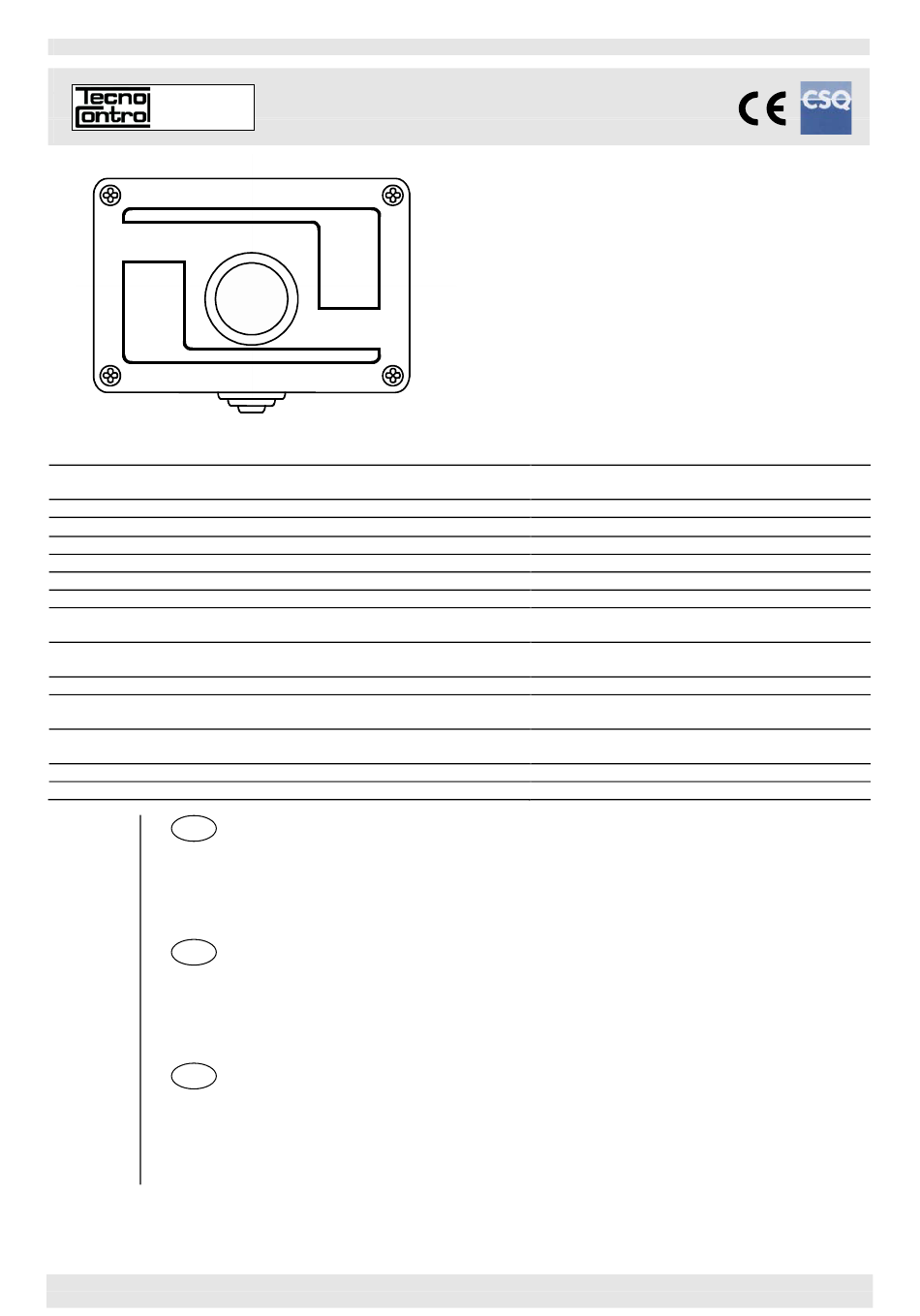

IST-2192.KM02.01/B (06.2013)
IST-2192.KM02.01_B_SE192K (IT-GB-FR).docx
SE192K
SENSOR
Caratteristiche tecniche / Technical specifications / Specifications techniques
Alimentazione / Power supply / Alimentation
Uscita / Output / Sortie
Resistenza di carico / Load resistor / Résistance de charge
Campo di misura / Standard range / Champ de mesure
Sensore / Sensor / Capteur
Tempo di risposta T
/ Response time T
50
Precisione / Accuracy / Precision
Deriva a lungo termine in aria pulita
Long time drift in pure air / Dérive à long terme en air non pullué
Vita media in aria pulita
Expected life in pure air / Durée de vie moyenne en air non pullué
Preriscaldo / Preheating / Préchauffage
Temp./umidità di funzionamento
Operation Temp./Humidity / Température et humidité de fonctionnement
Temp./umidità di immagazzinamento
Storage Temp./Humidity / Température et humidité de stockage
Grado protezione / Rating / Indice de protection
Dimensioni / Size / Dimensions
FUNZIONAMENTO .................................................................................................................................. 2
INSTALLAZIONE ..................................................................................................................................... 2
AVVERTENZE .......................................................................................................................................... 2
NOTE SUI MODELLI ................................................................................................................................ 2
TARATURA .............................................................................................................................................. 2
OPERATIONAL DESCRIPTION .............................................................................................................. 3
INSTALLATION ....................................................................................................................................... 3
WARNING ................................................................................................................................................ 3
THE MODELS .......................................................................................................................................... 4
CALIBRATION ......................................................................................................................................... 4
FONCTIONNEMENT ................................................................................................................................ 4
INSTALLATION ....................................................................................................................................... 5
AVVERTISSEMENT ................................................................................................................................. 5
LE MODELES .......................................................................................................................................... 5
ETALONNAGE ......................................................................................................................................... 5
TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI)
Istruzione / User's Manual / Manuel d'utilisation
Trasmettitore per gas combustibili
Transmitter for combustible gases
Trasmetteur pour gaz combustibles
GAS
IP44
/ Temps de résponse T
50
............................................................................................................................. 2
......................................................................................................... 3
............................................................................................................................. 4
http:
www.tecnocontrol.it
12÷24Vdc (-10/+15%) - 1 W
12÷24Vdc(-10/+15%) 1W / 12÷24Vcc(-10/+15%) 1W
4÷20mA Lineare / Linear / Linéaire
100 Ω max
0 ÷ 20 % LIE / LEL
Catalitico / Catalityc / Catalytiques
< 30 secondi / seconds / secondes
50
± 10 %
<±5 %LIE anno
<±5 %LEL year / <±5 %LIE ans
5 anni / years / ans
≈ 30 secondi / seconds / secondes
-10 ÷ +50 °C / 5÷90 % r.h. 40°C
-25 ÷ +55°C / 5÷95 % r.h.
IP44
110 x 75 x 72 mm
Tel. 02/26922890 - Fax 02/2133734
e-mail:
info@tecnocontrol.it
Pag. 1 / 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tecnocontrol SE192K Series
Summary of Contents for Tecnocontrol SE192K Series
-
Page 1: Table Of Contents
CALIBRATION ............................4 DESCRIPTION ..........................4 FONCTIONNEMENT ..........................4 INSTALLATION ............................5 AVVERTISSEMENT ..........................5 LE MODELES ............................5 ETALONNAGE ............................5 TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) Tel. 02/26922890 - Fax 02/2133734 http: www.tecnocontrol.it e-mail: info@tecnocontrol.it... -
Page 2: It Descrizione
Importante: Utilizzare bombole con miscela Gas compresa tra il 18%LIE e 22%LIE in aria 20,9% Ossigeno, in quanto i sensori catalitici non possono funzionare in assenza d’ossigeno. TECNOCONTROL S.r.l. Via Miglioli 47 SEGRATE ( MI ) Tel: 02/26 92 28 90 Fax: 02/21 33 734... -
Page 3: En General Information
The instrument comprises of a thermoplastic terminal box which contains the electronic circuit, the connecting ter- minals and the sensor placed in its housing on the cover. The SE192K are normally connected to the TECNOCONTROL gas detecting central systems for heating plants, as shown in the Table on... -
Page 4: The Models
Vie moyenne: Le capteur a une excellente stabilité dans le temps. En condition de fonctionnement normale en air non pollué la vie utile du capteur est d'environ 5 ans à partir de la date de mise sous tension. TECNOCONTROL S.r.l. Via Miglioli 47 SEGRATE ( MI ) Tel: 02/26 92 28 90 Fax: 02/21 33 734... -
Page 5: Installation
P2 du circuit jus- 19,46 194,6 (195) qu'à lire la valeur convenable. TECNOCONTROL S.r.l. Via Miglioli 47 SEGRATE ( MI ) Tel: 02/26 92 28 90 Fax: 02/21 33 734... - Page 6 SENSOR IP44 37,5 37,5 Montaggio a parete Wall-mounting / Montage au mur e Fig. 3 - Dimensioni / Outline Dimensions / Dimensions TECNOCONTROL S.r.l. Via Miglioli 47 SEGRATE ( MI ) Tel: 02/26 92 28 90 Fax: 02/21 33 734...
