Cod. 006.0001.2120
12/03/2019 V.2.0
Pioneer
403MSR
503MSR
Instruction manual
Translation of original instructions
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pioneer 403MSR and is the answer not in the manual?

Questions and answers

Related Manuals for Weco Pioneer 403MSR

Summary of Contents for Weco Pioneer 403MSR

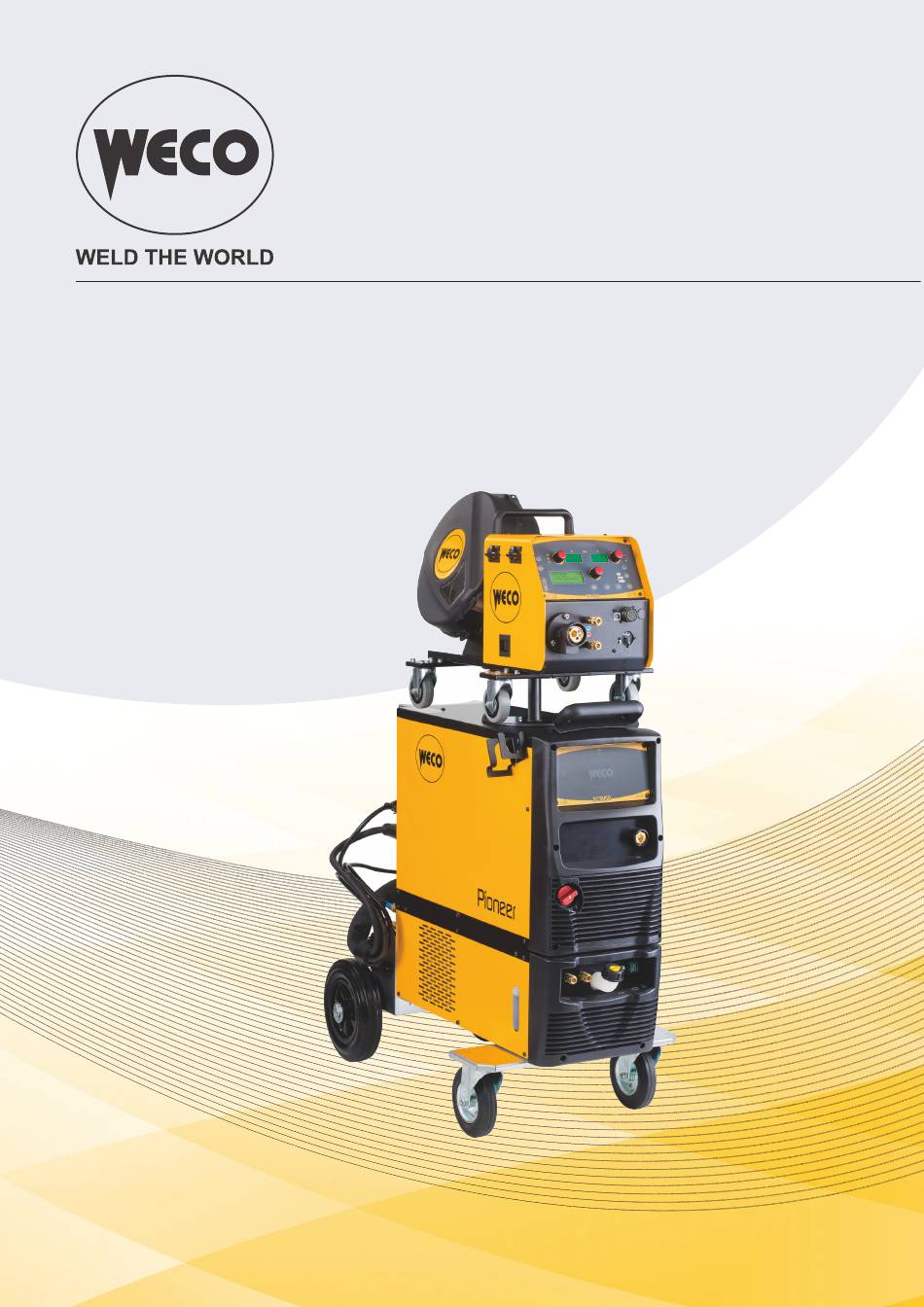

  • Page 1 Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 403MSR 503MSR Instruction manual Translation of original instructions...
  • Page 2 Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...

  • Page 3: Table Of Contents

    Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD INDEX INTRODUCTION ............................4 INTRODUCTION ............................5 INSTALLATION ............................6 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK ..............6 FRONT PANEL ............................. 6 REAR PANEL ............................... 7 USER INTERFACE ............................8 TECHNICAL DATA ............................

  • Page 4: Introduction

    Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD INTRODUCTION IMPORTANT! This handbook must be consigned to the user prior to installation and commissioning of the unit. Read the "General prescriptions for use" handbook supplied separately from this handbook before installing and commissioning the unit.

  • Page 5: Introduction

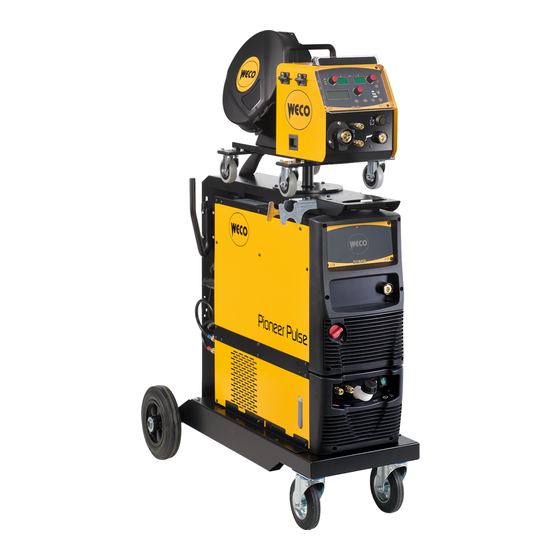

    Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD 1.1 INTRODUCTION PIONEER 403-503MSR is a power source for welding. When combined with a wire feeder it can be used for MIG/MAG welding. Fan. The fan is turned on only during welding, at the end of the welding process it remains on for a fixed period of time according to welding conditions. The fan is nonetheless controlled by specific thermal sensors that guarantee a correct cooling of the machine. Accessories/ancillary devices that can be connected to the unit: - Power source trolley for multi-function configuration (MIG/MAG). - Liquid cooler for MIG/MAG torches. - Wire feeder. Consult your dealer for an updated list of accessories and the latest new products available.

  • Page 6: Installation

    Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD INSTALLATION DANGER! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. 2.1 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK The mains power supply features to which the equipment should be connected are given in chapter “TECHNICAL DATA”. The machine can be connected to motorgenerators provided their voltage is stabilised. Connect/disconnect the various devices with the machine switched off. 2.2 FRONT PANEL ○...

  • Page 7: Rear Panel

    Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD 2.3 REAR PANEL ○ Connector for connection to the programmer [Item 1]. Programming connector for the “pulsed” circuit board. You can update the software of the equipment using the programming kit. ○ Cooler group power feeding connector [Item 2]. • Voltage: 400 V a.c. • Current output: 1.0 A • IP protection rating: IP20 (cap open) / IP66 (cap closed) DANGER! High voltage! If the socket is not connected to any devices always close cap ○...

  • Page 8: User Interface

    Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD USER INTERFACE PIONEER 403-503MSR CODE SYMBOL DESCRIPTION This LED illuminates to confirm the presence of power on the output sockets.

  • Page 9: Technical Data

    Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD TECHNICAL DATA Waste electrical and electronic equipment (WEEE) Electromagnetic compatibility (EMC) Directives applied Low voltage (LVD) Restriction of the use of certain hazardous substances (RoHS) Construction standards EN 60974-1; EN 60974-10 Class A Equipment compliant with European directives in force Equipment suitable in an environment with increased hazard of electric shock Conformity markings Equipment compliant with WEEE directive Equipment compliant with RoHS directive Supply voltage 3 x 400 Va.c. ± 15 % / 50-60 Hz Mains protection 32 A 500 V Delayed This equipment complies with IEC 61000-3-12 provided that the maximum permis- sible system impedance is less than or equal to 68 mΩ at the interface point between...
  • Page 10 Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD Supply voltage 3 x 400 Va.c. ± 15 % / 50-60 Hz Mains protection 32 A 500 V Delayed This equipment complies with IEC 61000-3-12 provided that the maximum permis- sible system impedance is less than or equal to 21 mΩ at the interface point between the user’s supply and the public system. It is the responsibility of the installer or user Zmax of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment is connected only to a supply with maximum permis- sible system impedance less than or equal to 21 mΩ. Dimensions ( L x D x H ) 1370 x 460 x 990 mm Weight 46 kg...
  • Page 11 Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...

  • Page 12: Pioneer 403/503Msr→Wf Cable

    Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD PIONEER 403/503MSR→WF CABLE...

  • Page 13: Electrical Diagram

    Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD ELECTRICAL DIAGRAM...
  • Page 14 Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...
  • Page 15 Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...
  • Page 16 Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...
  • Page 17 Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...

  • Page 18: Spare Parts

    Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD SPARE PARTS 17 1819 20 21...
  • Page 19 Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD N° CODE DESCRIPTION N° CODE DESCRIPTION 013.0021.1101 FRONT PANEL LABEL (403 MSR) 44 050.0004.0129 SUPPLIES BOARD 013.0021.1001 FRONT PANEL LABEL (503 MSR) 050.0001.0159 CONTROL BOARD (403MSR) 016.4107.0001 FRONTAL PANEL PLATE 050.0002.0159 CONTROL BOARD (503MSR) 050.0002.0096 LED BOARD 46 011.0013.0257 RIGHT SUPPORT BOARD PLATE 012.0007.0010...
  • Page 20 Cod. 006.0001.2120 Pioneer 403MSR 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...
  • Page 21 Pioneer 403MSR Cod. 006.0001.2120 12/03/2019 V.2.0 Pioneer 503MSR ENGLISH WELD THE WORLD...
  • Page 22 Cod. 006.0001.2120 12/03/2019 V.2.0 WECO srl Via S. Antonio 22 - Loc. Belvedere 36056 Tezze sul Brenta (Vicenza) - Italy Tel +39 0424 561 943 - fax +39 0424 561 944 www.weco.it...
