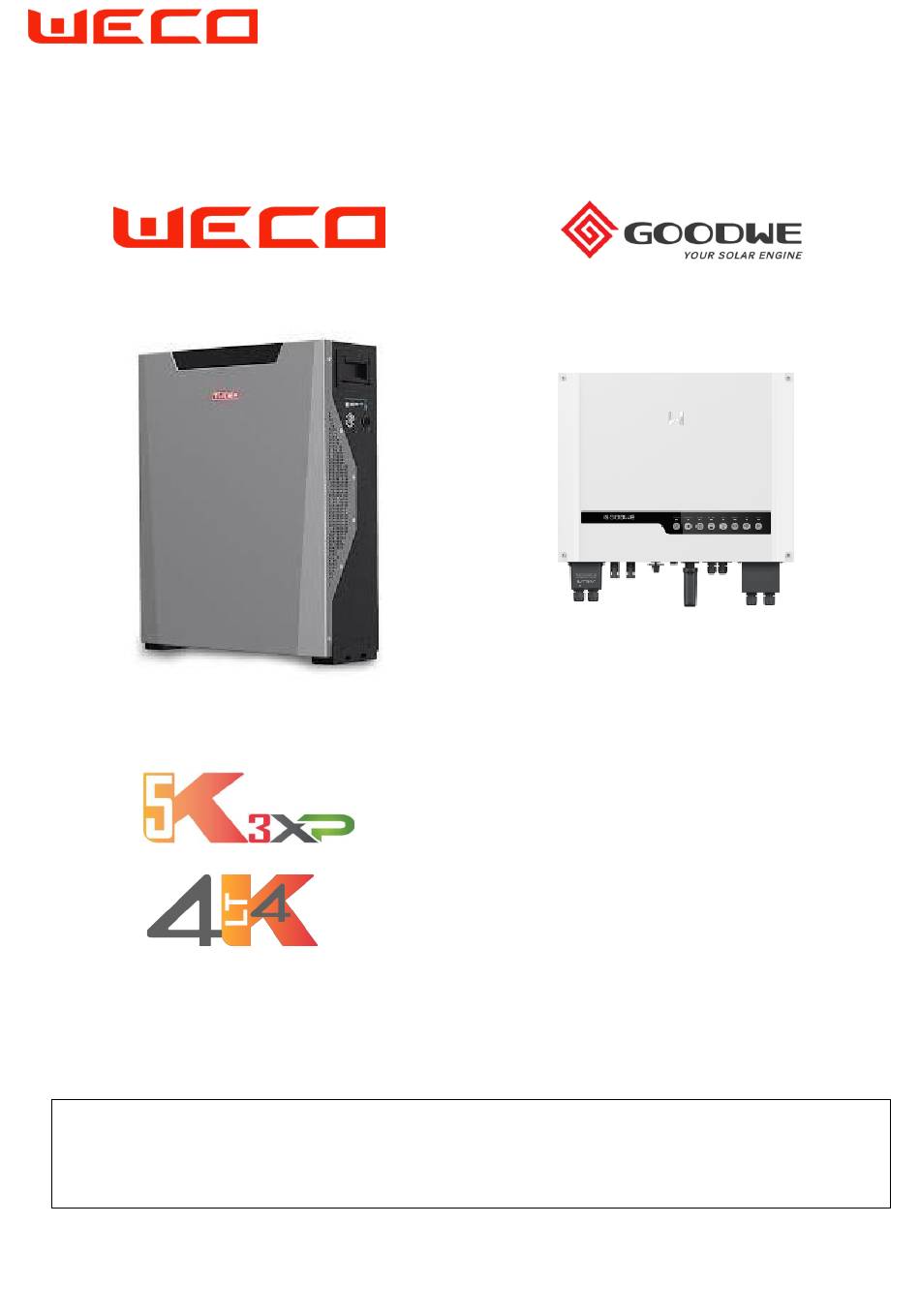

- Page 1 GOODWE ES SINGLE PHASE QUICK GUIDE Goodwe HYBRID INVERTER ES single Phase Whole Power Range Goodwe ES Hybrid 230Vac Single Phase Inverter Quick Configuration Guide Goodwe Single Phase Inverter Configuration...
- Page 2 GOODWE ES SINGLE PHASE QUICK GUIDE Preparations: Open the covers underneath the inverter to access all the connection boards, CAN port, CT terminal and Battery Power Connection Terminal are all located here. INVERTER CAN RJ45 INPUT CT ARROW DIRECTION TO THE GRID...
- Page 3 GOODWE ES SINGLE PHASE QUICK GUIDE Step 1. Safety Preparation For Safety reason it is forbidden to install any power inputs such as PV, GRID or BATTERY before having completed all the data wiring connection as explained below. • The PV cables cannot be conneted at this stage •...
- Page 4 GOODWE ES SINGLE PHASE QUICK GUIDE Step 2. Battery Preparation Keep the BMS switch on “0” OFF. Set the DIP Switch of the battery in accordance with the relevant manual. Connect the provided CAN cable RJ45 to the CAN A port. The RJ45 Terminal on the other side needs to be crimped to match inverter PIN OUT.
- Page 5 WeCo Provides an RJ45 cable Type T568B with any battery Kit. BMS CAN PIN OUT at battery side is the same for any WeCo battery. The RJ45 Terminal on the inverter side needs to be crimped to match inverter PIN OUT...
- Page 6 GOODWE ES SINGLE PHASE QUICK GUIDE Step 3. Battery Power Connection Keep Inverter and Battery OFF. Open the lid and connect the power Cables from the battery to the Inverter. Use a Torque Wrench to secure the cables bolt. INVERTER OFF BATTERY OFF Battery Torque: 9.5 Nm Inverter Torque: 11 Nm...
- Page 7 Step 4. Battery FW Upgrade and Protocol Set Download the WeCo Bluetooth APP from Google Play of from APP Store. The Bluetooth APP will allow you to inspect the battery, set the battery and monitor the BMS functions during the commissioning phase.
-
Page 8: Protocol Set Up
GOODWE ES SINGLE PHASE QUICK GUIDE Protocol Set Up Wait until pop up confirms that the update process is successful, then proceed to set the inverter protocol. Swipe UP to reach the bottom of the page. SET GOODWECAN ATTENTION Turn Off the battery to proceed with the remaining operations. Keeping the battery ON will damage the BMS an potentially the inverter power protection circuit. - Page 9 GOODWE ES SINGLE PHASE QUICK GUIDE Step 6. Inverter Protocol Set up Open the pv master app and connect to the inverter. On the first startup, “communication error” may be displayed. This is normal as it necessary to set the right battery settings to start communication.
- Page 10 GOODWE ES SINGLE PHASE QUICK GUIDE Default (Lithium 100Ah). Now press Next, select General mode, then Meter Test Now activate , exit and wait until the test is completed.
- Page 11 GOODWE ES SINGLE PHASE QUICK GUIDE Now the battery is recognized by the inverter and the parameters are visible. ATTENTION, IMPORTANT To ensure that all the information are properly displayed and received by the inverter it is necessary to make a double control by tapping Parameters. Swipe UP to reach the bottom of the page.
- Page 12 GOODWE ES SINGLE PHASE QUICK GUIDE Now the whole system is ready to work: PV POWERS THE LOAD AND CHARGES THE BATTERIES NO PV - BATTERIES POWER THE LOAD...
- Page 13 GOODWE ES SINGLE PHASE QUICK GUIDE NO LOAD – PV CHARGES THE BATTERIES To enable the WeCo WiFi Monitoring App, please follow the relevant manual available on our Web Site https://wecobatteries.com/download-area/...
