Summary of Contents for Weco Pioneer 403MSR
- Page 1 Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer 403MSR Pioneer Pulse 503MSR Instruction manual Translation of original instructions...
- Page 2 Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
-
Page 3: Table Of Contents
Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D INDEX INTRODUCTION ............................4 INTRODUCTION ............................5 INSTALLATION ............................6 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK ..............6 FRONT PANEL ............................. 6 REAR PANEL ............................... -
Page 4: Introduction
Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D INTRODUCTION IMPORTANT! This handbook must be consigned to the user prior to installation and commissioning of the unit. Read the "General prescriptions for use" handbook supplied separately from this handbook before installing and commissioning the unit. -
Page 5: Introduction

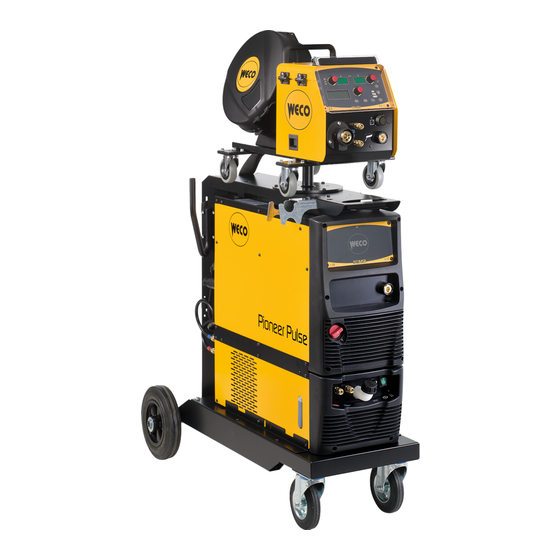

Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D 1.1 INTRODUCTION PIONEER 403-503MSR is a power source for welding. When combined with a wire feeder it can be used for MIG/MAG welding. Fan. The fan is turned on only during welding, at the end of the welding process it remains on for a fixed period of time according to welding conditions. The fan is nonetheless controlled by specific thermal sensors that guarantee a correct cooling of the machine. Accessories/ancillary devices that can be connected to the unit: - Power source trolley for multi-function configuration (MIG/MAG). -
Page 6: Installation
Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D INSTALLATION DANGER! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. 2.1 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK The mains power supply features to which the equipment should be connected are given in chapter “TECHNICAL DATA”. -
Page 7: Rear Panel
Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D 2.3 REAR PANEL ○ Connector for connection to the programmer [Item 1]. Programming connector for the “pulsed” circuit board. You can update the software of the equipment using the programming kit. ○ Cooler group power feeding connector [Item 2]. • Voltage: 400 V a.c. • Current output: 1.0 A • IP protection rating: IP20 (cap open) / IP66 (cap closed) DANGER! High voltage! If the socket is not connected to any devices always close cap ○... -
Page 8: User Interface
Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D USER INTERFACE PIONEER 403-503MSR / PIONEER PULSE 403-503MSR CODE SYMBOL DESCRIPTION This LED illuminates to confirm the presence of power on the output sockets. TECHNICAL DATA Waste electrical and electronic equipment (WEEE) Electromagnetic compatibility (EMC) Directives applied Low voltage (LVD) Restriction of the use of certain hazardous substances (RoHS) Construction standards EN 60974-1;... -
Page 9: Pioneer 503 Msr / Pioneer Pulse 503 Msr
Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D 4.1 PIONEER 503 MSR / PIONEER PULSE 503 MSR Supply voltage 3 x 400 Va.c. ± 15 % / 50-60 Hz Mains protection 32 A 500 V Delayed This equipment complies with IEC 61000-3-12 provided that the maximum permis- sible system impedance is less than or equal to 21 mΩ at the interface point between the user’s supply and the public system. It is the responsibility of the installer or user... -
Page 10: Pioneer 403 Msr / Pioneer Pulse 403 Msr
Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D 4.2 PIONEER 403 MSR / PIONEER PULSE 403 MSR Supply voltage 3 x 400 Va.c. ± 15 % / 50-60 Hz Mains protection 25 A 500 V Delayed This equipment complies with IEC 61000-3-12 provided that the maximum permis- sible system impedance is less than or equal to 21 mΩ at the interface point between the user’s supply and the public system. It is the responsibility of the installer or user... - Page 11 Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
-
Page 12: Pioneer 403/503Msr→Wf Cable
Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D PIONEER 403/503MSR→WF CABLE... -
Page 13: Electrical Diagram
Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D ELECTRICAL DIAGRAM 6.1 PIONEER 403-503MSR / PIONEER PULSE 403-503MSR... - Page 14 Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
- Page 15 Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
- Page 16 Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
- Page 17 Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
-
Page 18: Spare Parts
Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D SPARE PARTS 7.1 PIONEER 403-503MSR / PIONEER PULSE 403-503MSR 17 1819 20 21... - Page 19 Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D N° CODE DESCRIPTION N° CODE DESCRIPTION 013.0021.1001 FRONT PANEL LABEL (403 MSR) 41 021.0014.0303 RS-232 CONNECTOR CAP 013.0021.1101 FRONT PANEL LABEL (503 MSR) 42 022.0002.0355 RS-232 WIRING 013.0000.8044 FRONTAL PANEL PLATE 43 045.0000.0017...
- Page 20 Cod. 006.0001.2120 Pioneer 403MSR/503MSR 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
- Page 21 Pioneer 403MSR/503MSR Cod. 006.0001.2120 22/07/2022 V.2.6 Pioneer Pulse 403MSR/503MSR ENGLISH WELD TH E W O R L D...
- Page 22 Cod. 006.0001.2120 22/07/2022 V.2.6 www.weco.it...
