OWNER'S MANUAL
percussion@marimbaone.com
www.marimbaone.com
tel 707 822 9570
fax 707 822 6256

Advertisement

loading
Need help?

Need help?

Do you have a question about the One Vibe and is the answer not in the manual?

Questions and answers

Related Manuals for Marimba One One Vibe

Summary of Contents for Marimba One One Vibe

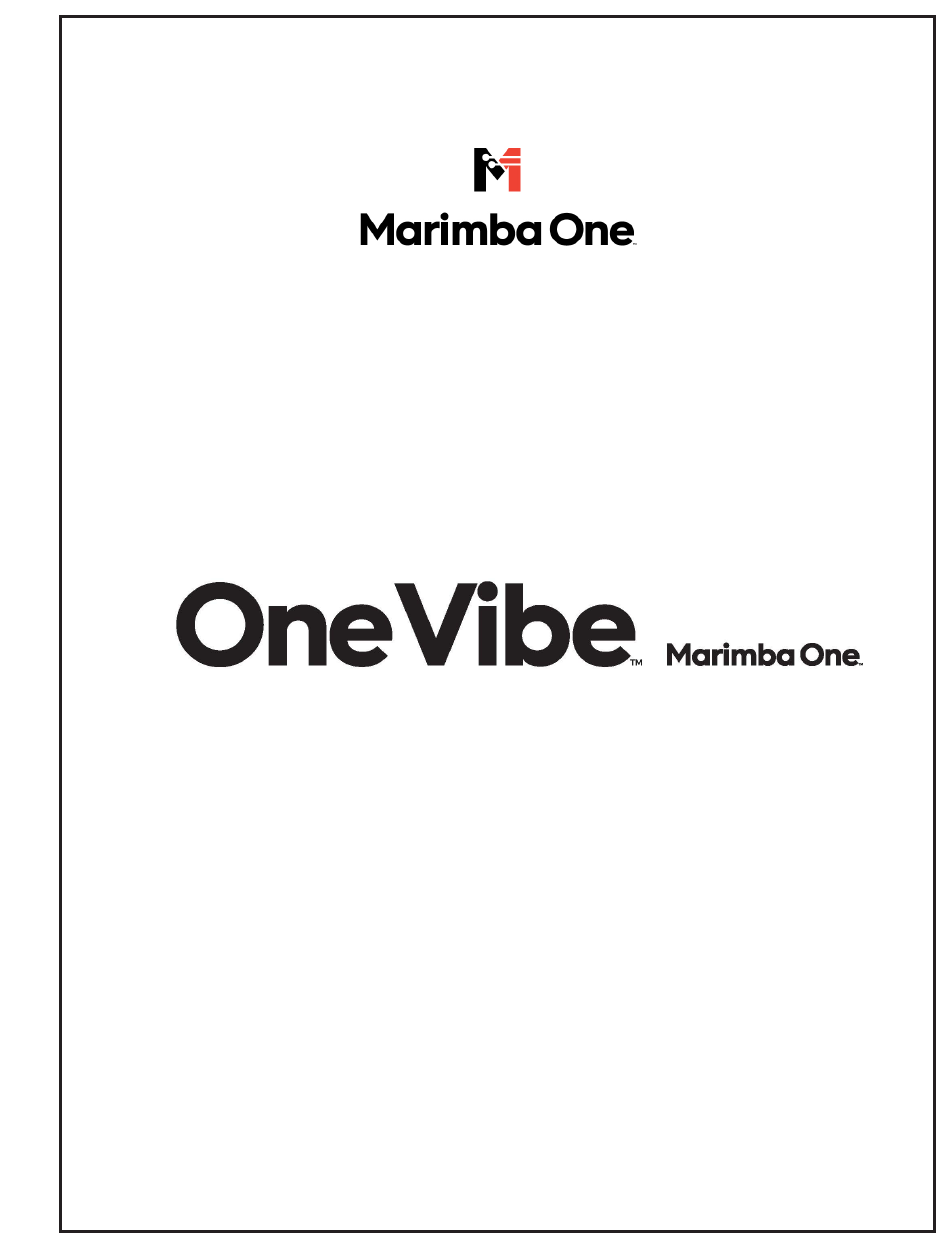

  • Page 1 OWNER’S MANUAL percussion@marimbaone.com www.marimbaone.com tel 707 822 9570 fax 707 822 6256...
  • Page 2 A large open space with carpet (or a blanket to cover the floor) • YOU WILL NEED: An assistant to help you assemble the One Vibe™ CAREFULLY UNPACK YOUR CRATE Compare the seven components as shown on this page. Center Support...
  • Page 3 UNFOLD LEGS Position yourself with the bass end on your left and treble end on your right, with legs facing you. Pull legs toward you. Bass Treble CENTER SUPPORT IDENTIFY BASS END OF CENTER SUPPORT Align bass end of center support with bass end of harp. Bass UNFOLD ARMS Unfold arms by...
  • Page 4 ATTACH BASS END TIGHTEN KNOB REPEAT FOR TREBLE END Slide notch onto bolt. Treble TIGHTEN REPEAT FOR ATTACH ARMS KNOB OTHER ARM Rotate arm and slide notch onto bolt. PEDAL REMOVE PARTS INSERT PEDAL BOLT Slide bolt through center hole on center support. Remove knob, threaded wheel, metal washer, and one black plastic washer.
  • Page 5 SECURE PEDAL TIGHTEN KNOBS Place black plastic washer, metal washer, threaded Adjust tension using both wheel wheel, and knob onto bolt in the following order: and threaded knob. PLACE HARP IN ATTACH STRAP UPRIGHT POSITION RESONATORS POSITION TREBLE END INSERT RESONATORS Insert resonators into the First, position treble end of resonators onto treble headboard.
  • Page 6 One Vibe, turn the adjustment screw. Lowering the damper bar at the bass end will result in the bass end of the One Vibe having more sustain. Raising the damper bar will result in the bass end having less sustain.
  • Page 7 KEYBOARDS BEFORE installing keyboards, damper bar must be lowered completely as shown in the next 2 steps. PUSH PEDAL DOWN TURN TENSION KNOB Turn spring tension knob counterclockwise Push and hold pedal down. to lower the damper bar. POSITION NATURAL KEYBOARD SECURE TREBLE END Holding cords, lift keyboard, and place Slide cord around hooks on treble end.
  • Page 8 POSITION BARS ON RAILS treble end close-up treble end close-up Move each bar into its correct rail jacks position, making sure that the cord rests in the Jacks between each bar. Wrap the bar cord around the Corner jacks at the treble end. corner jacks tuning arch SECURE BARS TO RAIL...
  • Page 9 BAR CORD TENSION Over time, as you play your instrument, the cord that suspends the bars may loosen and need to be adjusted. To increase tension in the bar cord, use the cleats behind the springs to hold the slack in the cord. UNHOOK SPRINGS cleat cleat...
  • Page 10 Push green button to ON position and red button to RUN position. Push red button to STOP position. The One Vibe fans always stop in the 12 o’clock/vertical position. DO NOT move green button to the OFF position. Doing so will result in fans stopping at random positions.

  • Page 11: Warranty

    WARRANTS ON LY TO THE ORIGINAL PURCHASER THAT THIS INSTRUMENT IS FREE FROM DEFECTS IN MATERIALS AND/OR WORKMANSHIP AS FOLLOWS: 1. During a period of twelve (12) months from the date of receiving your instrument, marimba one ® will pay all labor and materials necessary to repair any defective instrument or part thereof. We will repair a defective instrument or part at the location of our factory.
