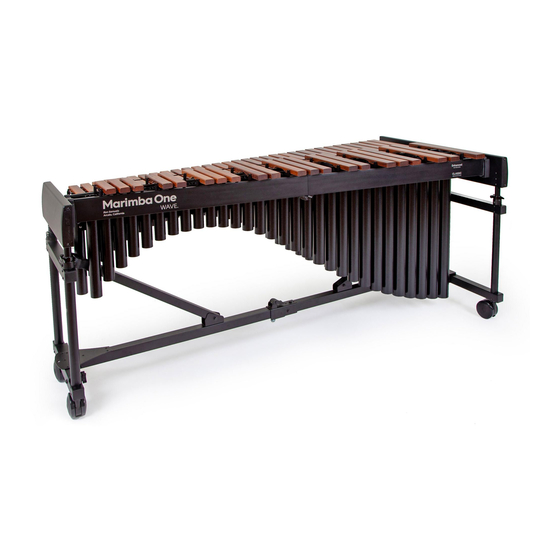

- Page 1 Wave Marimba ™ OWNER’S MANUAL 4.3 octave and 5 octave (with either 4-inch wheels or 8-inch wheels) 707.822.9570 // marimbaone.com...
- Page 3 An assistant to help you with assembly AVOID INJURY — When opening crate, use wire cutters or scissors to cut zip ties. Instructions work with all Wave 5 and 4.3 octave marimbas with 4 or 8 inch wheels. CAREFULLY UNPACK YOUR CRATE —...
- Page 4 ARRANGE FRAME COMPONENTS In a large open space with carpeting (or a blanket), arrange the frame components. Treble Frame Bass Frame Girders LOOSEN KNOBS Bass Frame Treble Frame Turn knobs counterclockwise. OPEN CLAMP-LEVERS Push clamp-levers into open position. Girder Bass Frame CONNECT GIRDERS When you hear or feel the girder tubes touch, the girders...
- Page 5 SECURE GIRDERS NOTE: Clamp-lever will not close if girder ends are not fully engaged. Push clamp-lever into closed position. ATTACH DIAGONAL BRACE SECURE BRACE Have assistant hold bass frame upright. Push lever into closed position. Holding diagonal brace, lift Lower slotted end girder.
- Page 6 IDENTIFY NATURAL UNFOLD RESONATOR RESONATOR BANK Safety Lock CAUTION: The resonators are heavy. You will need an assistant to help move the resonators into place. The natural resonator bank has a plug inside every tube. The accidental resonators are missing a plug inside every 3rd or 4th tube.
- Page 7 INSTALL ACCIDENTAL RESONATOR BANK Repeat steps for the second resonator bank. INSTALL SWAY BLOCK Slide into Slide into accidental accidental resonator slot. resonator slot. Slide ends of sway block into brackets on resonator banks. Bracket Bracket Slide into natural Slide into natural resonator slot.
- Page 8 INSTALL RAIL 1 Lower rail 1 into slots and onto pins. Bass Frame accidental Treble Frame natural Make sure the rail is fully engaged onto the flexible pins. REPEAT FOR RAILS 2 – 4 Bass Frame accidental Treble Frame natural Rev.
- Page 9 INSTALL NATURAL BARS With your assistant at one end and you at the other. Place natural bars over rails #1 and #2. Carefully unroll heaviest bar bundle. natural Bass Frame Treble Frame accidental POSITION BARS ON RAILS Treble End Close-up Move each bar into its correct position, making sure that the Rail Jacks...
- Page 10 FOR WAVE INSTRUMENTS WITH 8-INCH WHEELS. You will need a #2 Phillips head screwdriver. CONNECT TUBES Slide tubes together. SECURE TUBES Insert screw into hole on straight tube. Using screwdriver, turn screw clockwise to tighten. Repeat for all four screws.
- Page 11 height adjustment RAISING/LOWERING YOUR MARIMBA Locate the Izzy Height Gently lift or push down Close levers when desired Adjustment™ clamp on to raise or lower. height is achieved. the frame. Always adjust the height of the marimba with rails, resonators and bars installed. Rev.
- Page 12 AFTER ASSEMBLY CARE & MAINTENANCE bar cord tension moving the marimba marimba cleaning sagging bars bar cord tension Over time, as you play your instrument, the cord that suspends the bars may loosen and need to be adjusted. To increase tension in the bar cord, use the cleats behind the springs to take up the slack in the cord.
- Page 13 marimba cleaning USE A SOFT COTTON CLOTH OR TOWEL DAMPENED WITH WATER ONLY. Do not use furniture polish on your marimba! Most products of this type contain silicone, which will damage the finish and contaminate the wood. moving the marimba THE MARIMBA SHOULD ONLY BE LIFTED BY THE END FRAMES.
-
Page 14: Bar Chart
Remember: your bars are under warranty for the first year and we’ll replace them at no cost (shipping not included). Beyond the first year, contact us for bar replacement pricing. Shipping Address Marimba One 901 O St Suite D Arcata CA 95521 Email percussion@marimbaone.com Telephone 707.822.9570... -
Page 15: Warranty
THAT THIS INSTRUMENT IS FREE FROM DEFECTS IN MATERIALS AND/OR WORKMANSHIP AS FOLLOWS: 1. During a period of twelve (12) months from the date of receiving your instrument, Marimba One will pay all labor and materials necessary to repair any defective instrument or part thereof. We will repair a defective instrument or part at the location of our factory. - Page 16 Rev. 120522...
