SPNCWB

Controls and Features

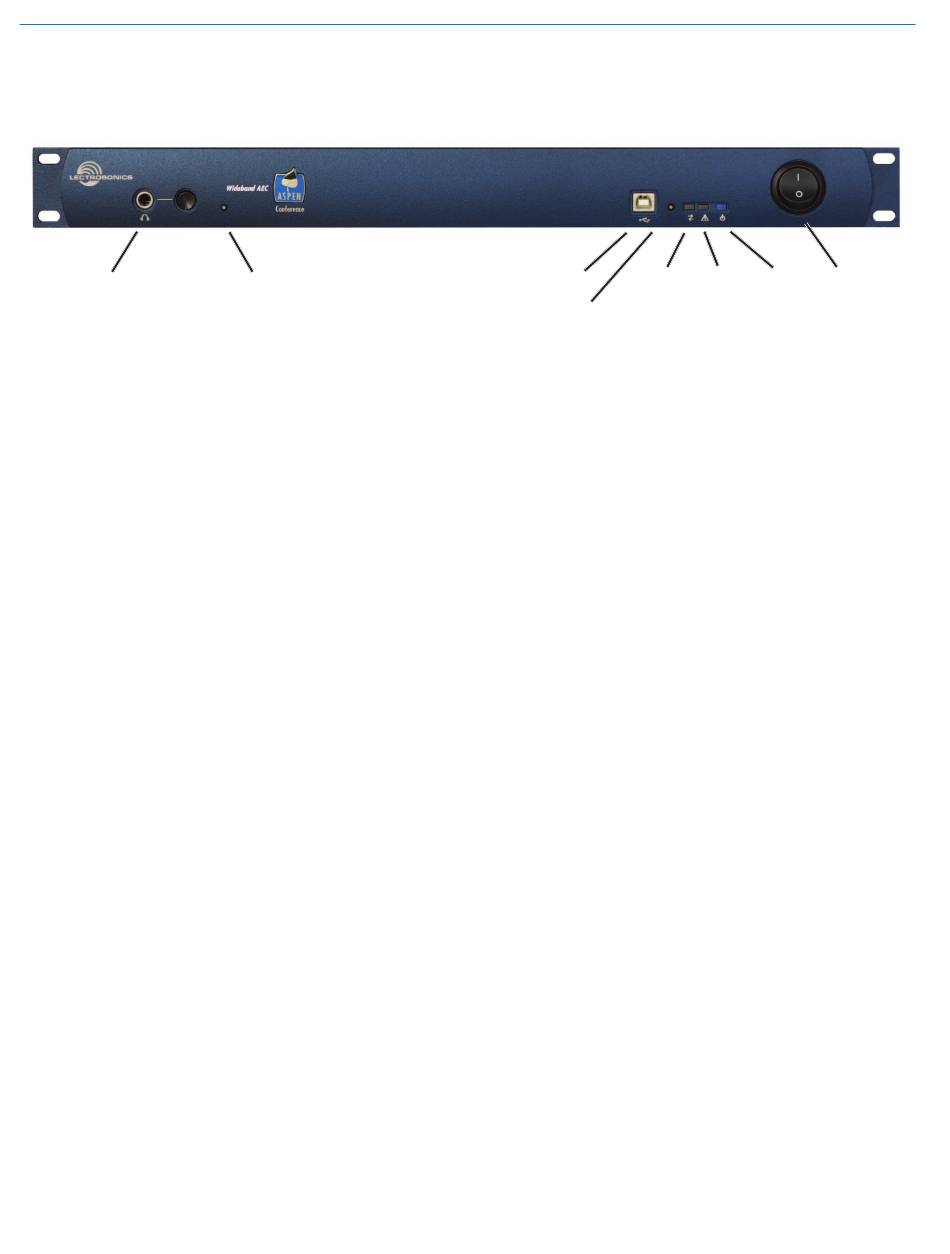

Front Panel
Headphone Monitor
Headphone Monitor
Standard 1/4 inch jack and level control. Drives both
channels of stereo headphones.
MCU Recovery (recessed pushbutton)
Used in the procedure to recover from an interrupted
firmware update procedure. See section on Firmware
Update Procedure for details on usage.
USB Port
Standard USB connector for the setup and control from
a computer using Windows XP, Vista or Windows 7 op-
erating system. The USB port is also used for firmware
updates.
6
MCU Recovery
recessed pushbutton
Comm
USB Port
LED
Firmware Update
recessed pushbutton
Firmware Update (recessed pushbutton)
Used in the procedure to update the firmware in the
processor. See the section on Firmware Update Pro-
cedure for details.
Status LEDs
Comm LED - indicates USB, RS-232 and network
communication
Alert LED - blinks to indicate fault or error
Alert LED - glows steady in firmware update mode
Power LED - glows to indicate power ON
Alert
Power
POWER
LED
LED
Switch
LECTROSONICS, INC.
